Introduction

Looking for the best wheel alignment machine to measure accurately, work efficiently, and perform well in your workshop? In this guide, we compare CCD, 3D alignment, 5D wheel alignment, and touchless alignment systems. We explain how to choose the right wheel alignment machine for your needs.

Article Overview

• What is a wheel alignment machine?
• Why wheel alignment is important
• Types of wheel alignment machines (CCD, 3D, 5D wheel aligner, Truck wheel alignment, touchless wheel alignment machines)
• Best wheel alignment machines comparison
• Which Aligner is best for different workshops?
• Key features to look for before purchasing a wheel alignment machine
• Who should buy a wheel alignment machine
• How to choose the best wheel alignment machines
• Budget planning
• Maintenance requirement
• Wheel alignment machine installation requirements
• Frequently asked questions

What is a wheel Alignment Machine?

Wheel alignment machines check a vehicle’s wheel angles (e.g., toe, camber, and caster) against the vehicle manufacturer’s specified values. Modern wheel alignment machines also measure and record the results, then produce a report and/or a certificate for the work carried out.

Why Wheel Alignment Is Important

Reducing workshop come-backs through correct wheel alignment improves overall vehicle safety and service delivery. Problems like uneven tire wear, steering pulling to one side, and poor handling often happen when your wheels are not aligned correctly. This can cause additional stress on other suspension components.

Types of Wheel Alignment Machines

Wheel alignment machines check and adjust a car’s wheel alignment. There are different models of wheel alignment machines. Each model uses a different technology. These include CCD Wheel Alignment, 3D,/5D Wheel Alignment machines, and the latest-technology touchless wheel alignment machine. The various types of wheel alignment systems have their own characteristics. Therefore, workshop owners and people in the car industry need to gain sufficient knowledge of the various models of wheel alignment systems. They can then choose the right alignment system to perform wheel alignment work efficiently and professionally. The chosen wheel alignment system must also be suitable for the workshop, the types of cars brought in, the available space, and the required degree of accuracy.

CCD Wheel Alignment Machine

CCD wheel alignment machines use electronic sensors attached to a car’s wheels to measure wheel angles (such as toe, camber, and caster). CCD machines are a common type of wheel alignment machine, used in general repair shops. They require wheel clamps and sensor heads to be set up manually by the technician.

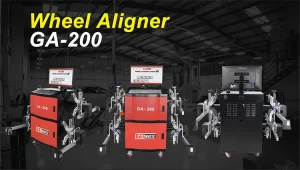

The GATmatic GA-200 CCD Wheel Alignment Machine is well-suited for routine passenger-vehicle alignment work. The GATmatic GA-200 CCD Wheel Alignment Machine uses eight CCD sensors and supports wireless data transmission.

Truck Wheel Alignment Machine

Heavy-duty long-haul trucks, including logging trucks and big rigs, have longer wheelbases and are designed to carry heavy loads. This means their axles differ from those of passenger cars and require a wider measurement range and a heavy-duty clamping system to ensure proper alignment.

Check out this YouTube video on the GATmatic Truck wheel alignment machine;

GATmatic GA-700H Truck Wheel Aligner is designed for heavy-duty applications. The GA-200H uses eight CCD sensors to provide truck alignment.

3D Wheel Alignment Machine

3D wheel alignment machines, such as the GATmatic GA-600+ 3D Wheel Aligner, use cameras and targets to determine the exact positions of the wheels and the required alignment angles. Because it requires less manual measurement, it is well-suited to high-volume workshops that perform many routine passenger car alignments every day.

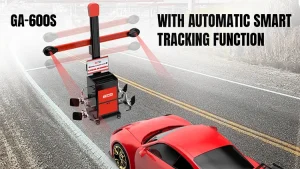

GATmatic GA-600S+ 3D Wheel Aligner: Industrial 5 megapixel cameras, four-point wheel clamps and alignment software for routine workshop alignment of large volumes of passenger vehicles.

5D Wheel Alignment Machine

5D Wheel Alignment Machines use camera-based measurements for workshop alignment work and are highly flexible.

The GATmatic GA-500 5D Wheel Aligner uses optical and wireless communication and can be mounted magnetically to a scissor lift or used on the ground. This 5D wheel aligner is a beam-free, cabinet-free design that allows installation in even the smallest workshops.

Touchless Wheel Alignment Machine

Touchless wheel alignment machines capture a vehicle’s geometry without the need for wheel clamps or targets. They utilize cameras, lasers, and 3D imaging to minimize the number of steps required to set up a vehicle for measurement.

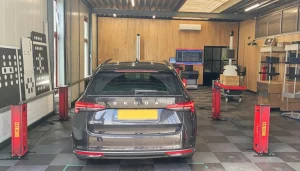

The GATmatic GA-800 ProB Touchless Wheel Alignment System uses cameras, laser emitters, and 3D imaging. It measures and displays results in 1.5 seconds, enabling efficient workflows.

AI-Powered Wheel Alignment Systems

New AI-powered wheel alignment systems use image processing and algorithms to recognize vehicles, measure, and analyze data. This automation of repetitive tasks during wheel alignment enables service staff to process results much faster.

The GATmatic GA-800 ProA is a touchless wheel alignment system that uses cameras, a laser, 3D imaging, and AI for measurement.

Best Wheel Alignment Machine Comparison

The best alignment technology is not fixed for a specific workshop. Choose wheel alignment machines based on factors such as vehicle types, alignment volume, technicians’ workflow, available space, and equipment budget.

Here’s a straightforward comparison table:

Type	Function	Efficiency	Key Features	Pros	Cons
CCD	Uses CCD (Charge-Coupled Device) cameras/sensors clamped to wheels to measure alignment angles	Fast setup (under 5 min), quick readings	Portable, works across multiple lifts, sensors clamp onto rims	Very accurate, flexible (move between bays), affordable, quick setup	Sensors can be knocked out of position; still needs manual clamping
3D	Uses cameras + targets to build a 3D model of the vehicle’s alignment	Slightly slower setup than CCD, but very fast readings	Full 3D view of camber, caster, toe; works on 2-post lifts	Most detailed/precise data, great visuals for customers, works on tighter spaces	Pricier; needs good lighting and calibration
Truck (Heavy-Duty) Aligner	Same alignment concepts, scaled for trucks/buses/commercial vehicles	Slower (bigger vehicle, more axles)	Handles multi-axle setups, wider wheel/clamp range	Built for heavy-duty daily use, handles fleets	Bigger investment, not needed for regular cars
5D	Advanced version of 3D — more sensors/cameras for extra precision and coverage	Fast, high-precision	Combines 3D modeling with added angles/data points	Best for shops wanting extra accuracy and future-proofing	More expensive; overkill for basic shops
Touchless	Uses cameras + laser to scan wheels without physically attaching sensors	Fastest — results in 3-5 seconds	No contact with wheels, ideal for sensitive/quick jobs	Super fast, less wear on equipment, good for high-volume shops	Slightly less precise than CCD/3D in some cases; needs trained operators and stable lighting

Quick takeaway: CCD = reliable and portable, 3D/5D = most precise, Touchless = fastest, Truck aligners = built specifically for heavy vehicles.

CCD vs 3D Wheel Alignment Machine

CCD systems use electronic wheel sensors. 3D systems consist of cameras and targets. Both types of systems measure wheel positions and angles. The quality of the results depends on the correct setup of the systems.

CCD systems are well-suited for general repair shops with familiar personnel and use sensor-based measurement. 3D systems are suited for large workshops that perform a high volume of alignments, a task simplified by imaging-based measurement.

3D vs 5D Wheel Alignment Machine

3D systems use the same kind of imaging as 5D systems but also offer users certain software functions, greater workflow automation and measurement data processing, and improved system operation.

A 3D system is sufficient for the routine alignment of passenger cars. Workshops that need flexible installation of measuring devices and a more efficient workflow can opt for a 5D system.

Touchless vs Clamp-Based Alignment Systems

Wheel alignment systems, such as touchless and clamp-based systems, measure a vehicle’s wheel angles. Touchless alignment systems consist of cameras, lasers, and sensors. These systems measure the wheel(s) without touching them. This system allows for fast setup and prevents damage to the wheel(s) and wheel cover(s). Clamp-based systems consist of physical clamps and sensors that are attached to the wheel(s). These systems are widely used because they provide accurate measurements when correctly installed and calibrated. Touchless systems are ideal for busy workshops, as they enable fast operation and easy wheel measurements. However, clamp-based systems are also practical and reliable.

Which Technology Is Best for Different Workshops?

Which is the best wheel alignment machine for my workshops?

General repair shops: CCD or 3D systems.

High-volume tire and alignment centers: 3D, 5D, or touchless systems. These systems reduce setup time, enabling a higher volume of vehicles to pass through the workshop.

Heavy-duty workshops: Dedicated truck alignment equipment for commercial vehicles, including different axles.

Space-limited workshops: Compact 5D alignment systems are ideal for shops with less space. They’re also portable and mobile.

Automation-focused shops: Touchless or AI-assisted systems for automated measurement (reducing repetitive manual work). These systems require more space for installation and usage.

Of course, the most suitable technology need not be the most advanced. The choice depends on the type of vehicles, the daily workload, the staff, the available space, and the investment.

Key Features to Look for in the Best Wheel Alignment Machine

When comparing wheel alignment equipment, it’s important to consider other factors, such as camera performance, measurement speed, vehicle data, software, communication, calibration, and workflow automation, all of which are relevant to daily workshop operations and the efficiency of wheel alignment service.

Camera Accuracy

The quality of the camera used for measurement affects the quality and consistency of the measurements. The wheel positions are captured clearly using the high-resolution industrial cameras. In the GATmatic GA-600 3D Wheel Aligner, for example, 5-megapixel industrial cameras are used for measurement.

Measurement Speed

Also of interest here is the measurement speed. If work is done continuously, then enough time must be allowed between individual vehicles to complete the work. The GATmatic GA-800 ProA, for example, measures a vehicle in 1.5 seconds using cameras, laser scanning, and 3D imaging.

Vehicle Database Coverage

A comprehensive database of various models used worldwide is needed. These must be updated regularly to include the latest specifications for all new models that are constantly hitting the roads.

Software Updates

When new car models are introduced to the market, vehicle specifications and alignment machine software are updated to ensure technicians perform the best possible wheel alignment using the latest information.

Wireless Communication

The wireless connection between the individual sensor units and the alignment machine’s main system provides maximum flexibility for measuring the wheel and facilitates easy wheel alignment.

Cloud Connectivity

A cloud connection for wheel alignment systems in workshops enables them to save all wheel alignment data digitally and, if desired, share it with other GATmatic wheel alignment systems located elsewhere. However, a cloud connection is not required for wheel alignment systems in every workshop.

AI Diagnostic Features

It is important to note, however, that even with AI-assisted systems, the technician’s professional assessment is still required to deliver the correct service to the customer.

Easy Calibration

A practical system will have a clear calibration procedure that your technicians can carry out with minimal disruption to their workflow.

Automatic Target Recognition

Automatic target recognition (ATR) recognizes targets and their positions. This form of automation in 3D wheel alignment technology is highly practical and reduces setup time. It also simplifies the measurement process for the technician.

User-Friendly Interface

A good interface is very important. First of all, it must enable the service employee to select the vehicle type, measure, check, and repair as quickly as possible.

Who Should Buy a Professional Wheel Alignment Machine?

Repair Shops offering services to the vehicle’s chassis, such as Body Repair, and those offering services to prevent future damage to the vehicle in general can also benefit from a professional wheel alignment machine.

Independent Repair Shops

Independent Repair Shops: These are shops that can be equipped with CCD, 3D, or 5D alignment machines. How much is performed and how the technician(s) are set up to work with the information would determine which is best.

Tire Service Centers

Tire Service Centers: These centers perform alignments in conjunction with tire, steering, and suspension service. They are ideal for a high volume of vehicles each day. They would benefit from faster setup time offered by 3D, 5D, and Touchless alignment systems. However, in these locations, there is limited space in the shop for additional equipment, and the variety of vehicles that come in daily would also play a large role in choosing an alignment system.



Commercial Vehicle Workshops

Commercial vehicle workshops require wheel alignment machines for larger axle types and under heavier operating conditions.

How to Choose the Best Wheel Alignment Machine

Wheel alignment machines for your workshop – select wheel alignment machines based on the size of your workshop, your daily workshop workload, the available space in your workshop, your workshop budget, and your future services offered in your workshop.

Workshop Size

For a general repair shop with a few alignment bays, the most practical solution would be a flexible 3D alignment system, e.g., the GATmatic GA-300.

Daily Vehicle Volume

For higher volumes of vehicles passing through alignment, fast measurement and reduced setup time are key to maximum value. The GATmatic GA-800 ProB touchless wheel alignment system, for example, measures and delivers results within 1.5 seconds.Available Floor Space

When measuring the floor space for potential alignment machines, make sure to include the bay dimensions and sufficient clearance around the lift to accommodate the chosen alignment machine. Many alignment machines on the market are compact and can be easily installed in small garages; for example, the GATmatic GA-600S, which uses a rear-mounted post.

Budget Planning

In addition to the cost of the wheel alignment machine, you must also factor in installation costs, initial calibration, subsequent software updates, and any optional accessories your staff may require. Also take into account the costs for any required training and for subsequent technical support. Compare these costs against the number of wheel alignments to be carried out and the machine’s expected usage.

Future Business Growth

Plan for future services, such as Electric and Hybrid repair, ADAS repair, Commercial Vehicles, and additional Alignment Bays. Your chosen supplier should offer a range of products that are easily upgradable as your service requirements change.

Top Features That Improve Workshop Productivity

By removing unnecessary steps around the measurement itself, the technician’s work improves, as he can move faster through the alignment bay with less setup and reporting.

Fast Vehicle Positioning

Automatic vehicle and axle recognition that automatically recognizes the correct vehicle and positions it for the required measurements.

Automatic Measurements

Automated data collection reduces repeated manual operations and allows technicians to focus on vehicle inspection and adjustment.

Real-Time Reporting

Automatic reports are created and contain all the Manufacturer’s specifications as well as the Measured Deviations.

Customer Printouts

Printed reports clearly show tire wear and alignment deviations. This will explain to the customer why a particular adjustment may be required or even why other parts of the vehicle may require repair.

Digital Vehicle Inspection

Workshops can also record the results of vehicle inspections and recall previous services carried out on a vehicle for future reference.

Wheel Alignment Machine Accuracy Explained

More factors determine the Accuracy of a Wheel Alignment Machine than the camera/sensor alone. This Accuracy is also affected by the Lift, Calibration, Targets, Workshop, software, and even the Technician.

Why Precision Matters

Even the smallest deviation in wheel alignment can cause uneven wear on the tires. This can cause problems such as steering pull and can affect the overall handling of a vehicle. Therefore, accurate and consistent measurements are required for any professional alignment repairs.

Factors Affecting Accuracy

Factors Affecting Accuracy – Small variations in alignment can cause uneven tire wear and can affect steering and vehicle handling. Therefore, accurate and consistent measurements are essential for carrying out professional repairs.

Calibration Requirements

Follow the manufacturer’s calibration schedule and recalibrate your equipment after any movement, impact, or change to the lift to re-establish the correct measurement geometry.

Wheel Aligner Installation Requirements

Proper installation of an alignment system is part of overall alignment accuracy. Therefore, the required space, lift, power, and network conditions must be verified before purchasing the equipment.

Space Requirements

Amount of space required: space for the vehicle in the bay, alignment equipment, space for the technician to work on the vehicle, and space for maintenance.

Lift Compatibility

Check the lift type, platform size, leveling, and load capacity to ensure the alignment system functions correctly.

Power Requirements

Use a stable power supply with proper grounding. Do not connect high-load equipment to the same power circuit as your alignment system, as this can cause voltage fluctuations.

Internet Connection

A reliable internet connection is required to update a database or cloud service, perform remote diagnostics, and maintain software for connected alignment systems.

Maintenance Tips for Long-Term Performance

Simple checks in the workshop guarantee constant measurement accuracy. It’s important to do this daily.

Daily Cleaning

Dust, brake particles, and oil contamination can impair the measurement by depositing on the camera lenses, targets, and sensor components. Therefore, regular cleaning of these components is required to achieve consistent measurements.

Camera Maintenance

Protect the cameras and the alignment columns from impacts, scratches, and any unnecessary movement in the workshop.

Software Updates

Make sure your vehicle databases and measurement software are up to date to provide your customers with current vehicle data and the appropriate vehicle functions.

Calibration Schedule

Follow the recommended calibration frequency for your specific equipment. In addition, it is very important to recalibrate after any change to the lift or the measurement equipment itself.

Preventive Maintenance Checklist

Check all cables, power connections, mounts, wireless interfaces, targets, and measurement values regularly to prevent problems and unexpected loss of workshop time.

Return on Investment (ROI)

Return on Investment (ROI) for an alignment machine is more than just the revenue from alignment charges. There is a return from a faster workflow, more vehicles to service, less labor required to complete the service, and additional repair opportunities.

Revenue Per Alignment

Revenue can be generated from the alignment service and related tire, suspension, steering, or chassis repair work for the same vehicle.

Profit Potential

Accurate alignment creates opportunities for additional sales of tires and other chassis repair parts. It also reduces the number of comebacks caused by inconsistent measurements and/or improper adjustments.

Cost Savings

Automating repetitive tasks saves technicians time and labor per vehicle. Also, reliable equipment saves time and prevents costly downtime and maintenance issues.

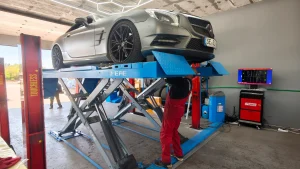

Why More Workshops Are Switching to Touchless Wheel Alignment Machines

Touchless alignment technology is gaining interest because it can reduce wheel contact and the need for manual setup. However, not every workshop will benefit from touchless alignment technology.

Faster Alignment Process

By removing wheel-mounted setup steps, wheel setup time can be dramatically reduced, allowing technicians to complete the alignment process faster.

Higher Measurement Accuracy

Stable measurements are ensured when the contactless system is properly installed and calibrated. No errors are caused by manual target or clamp setup, unlike in traditional systems.

Better Customer Experience

Reducing risk of wheel damage by avoiding contact with expensive and unusual wheels.

Increased Workshop Efficiency

For high-volume workshops, less setup per vehicle allows for better use of the alignment bay, increasing daily service output.

Future Trends in Wheel Alignment Technology

Future alignment systems are expected to be automated. They are going to use connected data and intelligent analysis, and become compatible with other equipment in the workshop.

Artificial Intelligence

The AI system will analyze data, identify abnormal patterns, and advise the technician on additional checks to perform on the vehicle.

Cloud Diagnostics

Cloud platforms can centralize alignment records, equipment status, software services, and technical support across multiple workshop locations.

Remote Software Updates

Remote updates allow workshops to receive new vehicle specifications and software improvements without waiting for on-site service.

Smart Workshop Integration

Alignment systems will increasingly connect to lifts, tire equipment, ADAS calibration equipment, and other Workshop Management Systems.

Contactless Vehicle Inspection

There will be an increase in contactless measurement and inspection of vehicles, as more and more workshops are required to complete inspections faster and reduce contact with wheels and tires.

Frequently Asked Questions

What is the best wheel alignment machine for a small garage?

For low-volume garages, CCD is good enough, but for smaller workshops that expect to be doing more vehicles in the future, a compact 3D wheel aligner would be a better choice.

Is a 5D wheel alignment machine better than a 3D system?

Not always. The 5D wheel aligners are primarily designed to provide additional automation and operate differently. A good 3D wheel aligner is suitable for most general repair workshops.

How accurate are modern wheel aligners?

A Wheel Aligner’s Accuracy is Based on Many Variables and Factors. It’s Not Just the Equipment. Repeatability is Just as Important as the Initial Reading.

How often should a wheel alignment machine be calibrated?

Recalibration is required per the manufacturer’s instructions. In addition, wheel aligners need to be recalibrated after movement, impacts, lift modifications, etc., to ensure correct measurement geometry.

What is the average lifespan of a wheel alignment machine?

How long does a wheel alignment machine last? A wheel alignment machine can last for many years as long as it is properly serviced, kept up to date with software, and calibrated as required.

Can one machine align SUVs, trucks, and passenger cars?

Heavy-duty trucks are usually a special case and require a large wheel alignment machine to accommodate their large dimensions and various axle types.

How much does a professional wheel alignment machine cost?

Prices for wheel alignment machines can vary greatly. The best way to evaluate the cost of a wheel alignment machine is by considering the total cost of ownership rather than the purchase price.

Which wheel alignment machine offers the best ROI?

Shops can achieve high returns on investment by selecting the right technology for their workloads. Higher-volume shops can benefit from the fastest 3D, 5D, or even touchless wheel alignment machines on the market, while lower-volume shops can achieve good results with a CCD cam-based wheel aligner.

Final Verdict: Which Is the Best Wheel Alignment Machine?

There is no best system for wheel alignment. It depends on the types of vehicles to be serviced, the amount of work to be done, the available space in the shop, the system budget, and the services needed down the road.

Key buying recommendations

Compare the required features, e.g., accuracy, workflow, database coverage, software support, calibration, warranty, and technical service support.

Choosing based on workshop size

Small workshops with limited space and budget will look for basic, cost-effective machines. Larger workshops with more bay space will seek automated machines that increase throughput and provide long-term value.

Choosing based on budget

When comparing wheel alignment machines, don’t just compare the machines’ prices. Consider the cost of updates, calibration, maintenance, training, and support.

Choosing based on expected daily workload

A higher volume of vehicles through your shop justifies faster measurement and greater automation because, ultimately, it increases your shop’s productivity, which in turn affects bay space and revenue.

Final Buying Checklist

Here are the final buying points to review before you buy a wheel alignment machine. Use these to check whether the alignment machine you are looking to buy will fit in your workshop, handle the vehicles you have, deliver the service your customers are used to, and meet your business’s long-term needs.

• Alignment Technology: CCD, 3D, 5D, touchless – depending on your requirements for your daily work in the workshop.
• Vehicle Coverage: How many different types of vehicles will the wheel alignment machine be able to do (e.g., passenger cars, SUVs, trucks, etc.)? Will the database cover different models of the same make (e.g., different Toyota models)?
• Measurement Performance: Compare measurement speed, accuracy, repeatability, and the system’s measurement range.
• Workshop Compatibility: Space requirements, Lift requirements, Installation requirements, Power supply, etc. in your workshop.
• Software & Updates: How are Vehicle Database updates distributed? Are there additional Software Products required? Are there any Subscription Fees involved?
• After-Sales Support: Check the technical support channels, spare parts availability, training provided, and the service offered by the supplier.
• Calibration & Maintenance: Confirm how calibration is performed, what needs to be maintained, and who will help you if any problems occur.
• Warranty Coverage: How long does the warranty last? What parts are covered? What is the process for repair or replacement?
• Total Cost of Ownership: The total cost for the machine (Purchase price + Installation + Updates + Maintenance, etc.).
• Future Business Needs: Is it possible to extend the machine to service future vehicles (e.g., EVs, hybrids, tire and suspension services, ADAS-related work, etc., as well as commercial vehicles)?
