The GIW850, 1/2 in. Composite Impact Wrench is designed for heavy duty automotive and industrial applications. It features the most significant advances in the performance of pneumatic power tools. The tool has substantially reduced noise levels while retaining more power and torque. It also incorporates an ergonomically engineered handle design to relieve stress and fatigue on the operator’s hands, wrists and arms. It featured exhaust muffler technology, allows discharged air to pass without developing back pressure, thus retaining more power, while significantly reducing noise.
This GIW850 impact wrenches, designed with a durable twin hammer
clutch mechanism is highly recommended. The advantages of pneumatic
technology are reinforced by the lightweight composite body design and
an aluminium clutch housing for long-term use. Bolt mounting and
removal is facilitated by ergonomic options such as an integrated bail and
rubber grip handle.
Features

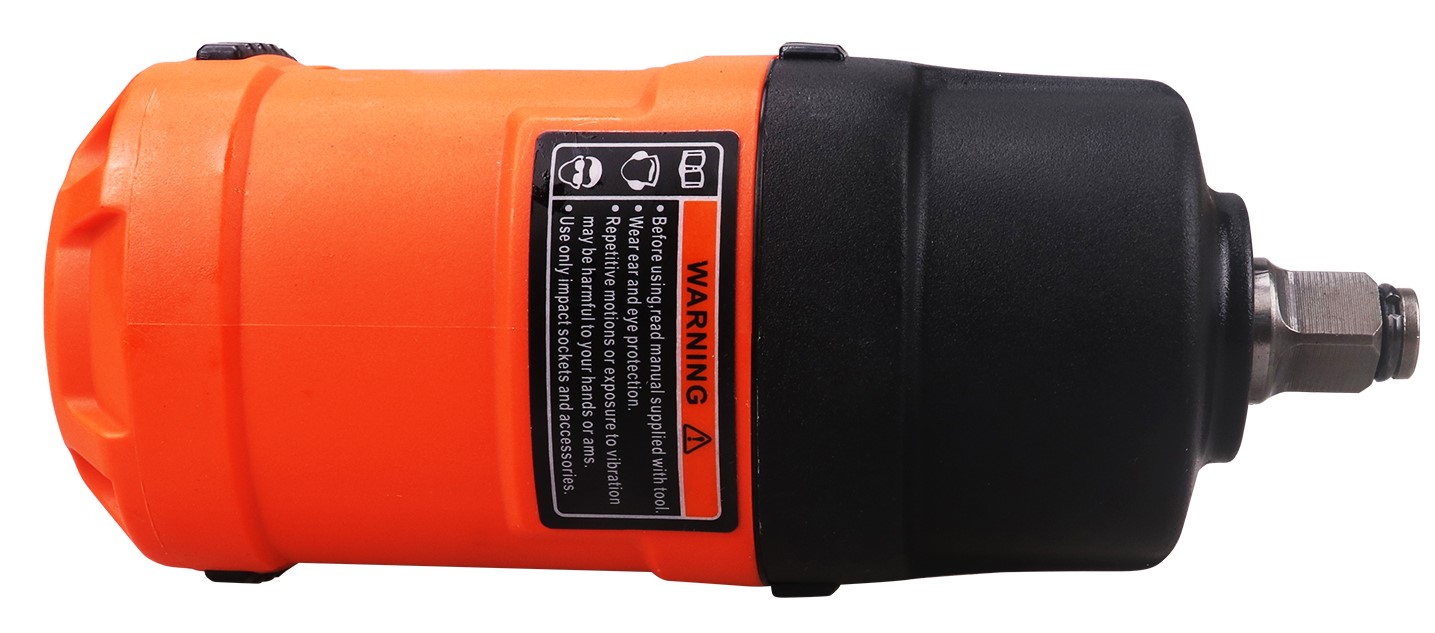

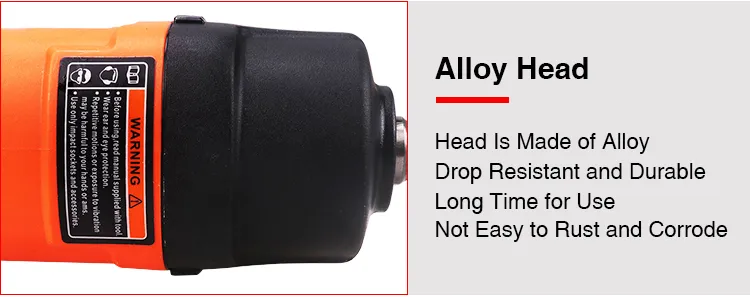

Alloy Steel Head
Due to the huge impact force when the pneumatic wrench is working, the
head is made of ultrahigh-strength steel designed to be used in structural
applications where very high loads are applied and often high strength-to-
weight ratios are required.

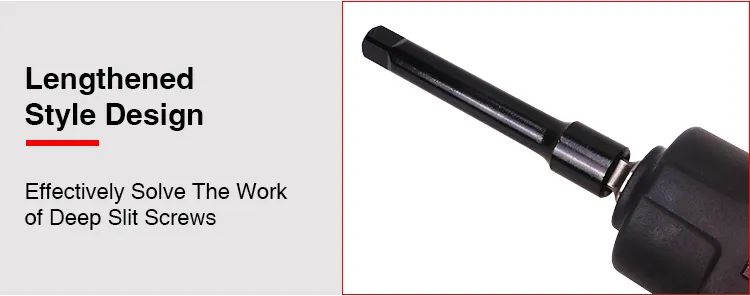

Lengthened Design
The long anvil allows you to easily reach nuts and bolts that are difficult to
access, effectively solving the work of deep-slit screws.

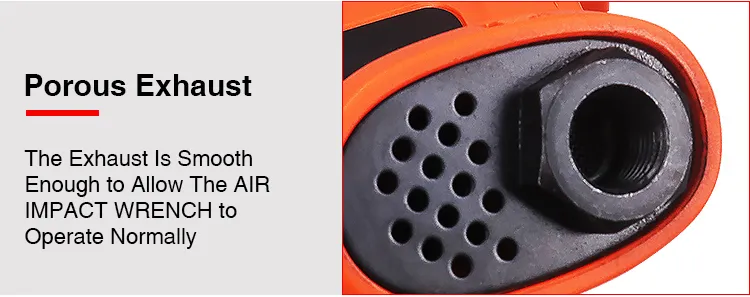

Porous Exhaust
The exhaust is smooth enough to allow the air impact wrench to operate
normally with a porous base.

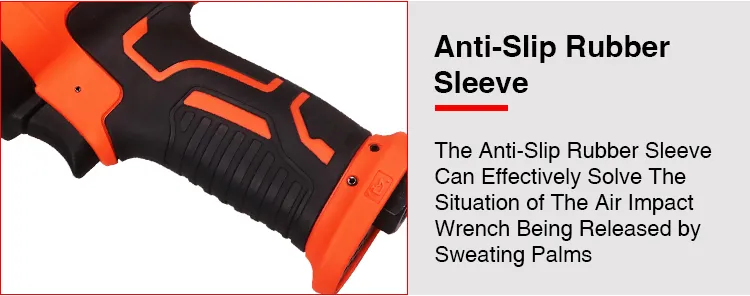

Anti-slip Rubber Sleeve
The anti-slip rubber sleeve can effectively solve the situation of the air
impact wrench being released by sweating palms.

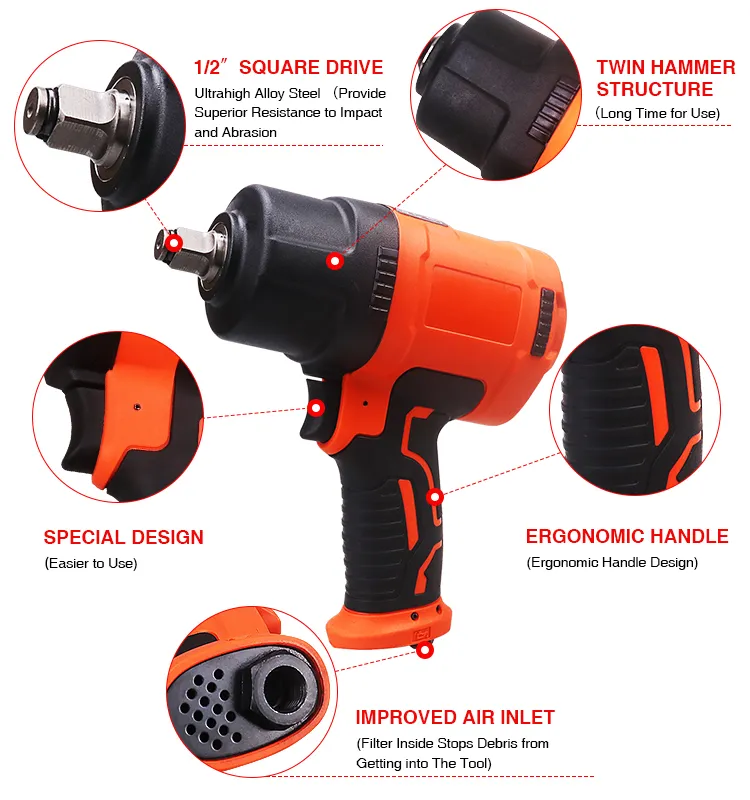

Air Impact Wrench Structure
Specification
Square Drive (inch)
1/2"
MAX.Torque(Nm.ft_lb)
850
Free Speed(rpm)
7500
Capacity Bolt Size(mm)
24
Air Consumption(L/min)
273
Air Inlet(mm)
1/4"
Air Hose(mm)
3/8"
Weight/pc(kg)
2.2
Warranty
12 Months
L*W*H (cm)
44.5*42.5*25
Package
In order to improve the integrity of the tool cabinet and avoid irresistible damage during
transportation, we provide a variety of packaging methods:
1. Bubble packaging: to prevent the tool trolley from being hit
2. Carton packaging: with a certain strength, hardness, toughness, and compression resistance
