– Wide Compatibility
– High Balancing Precision
– User-Friendly Interface
– Automatic Start and Stop
– Self-Diagnosis and Calibration
– ALU Functions for Alloy Wheels

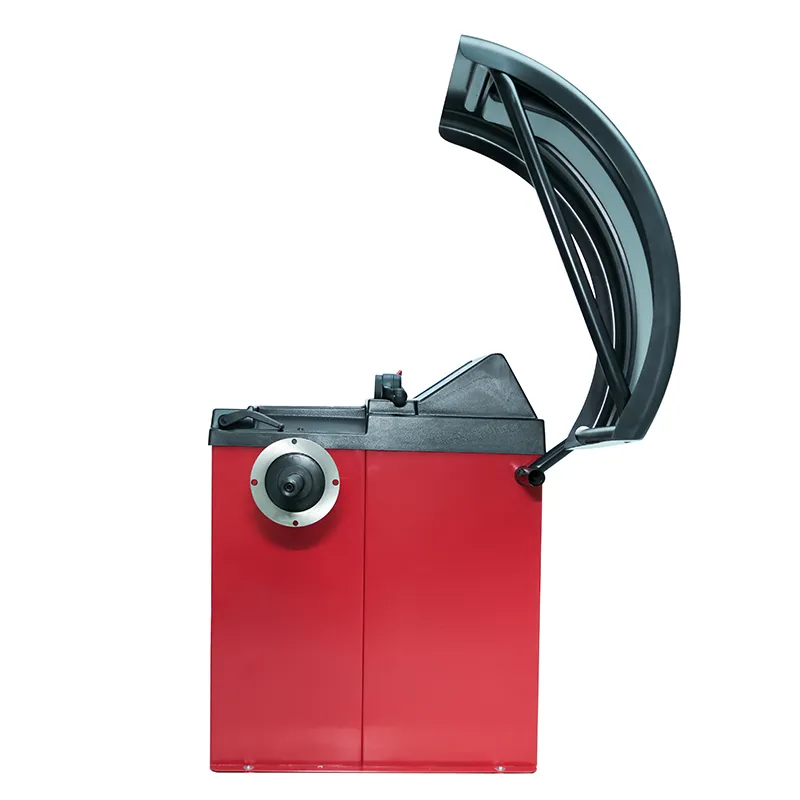

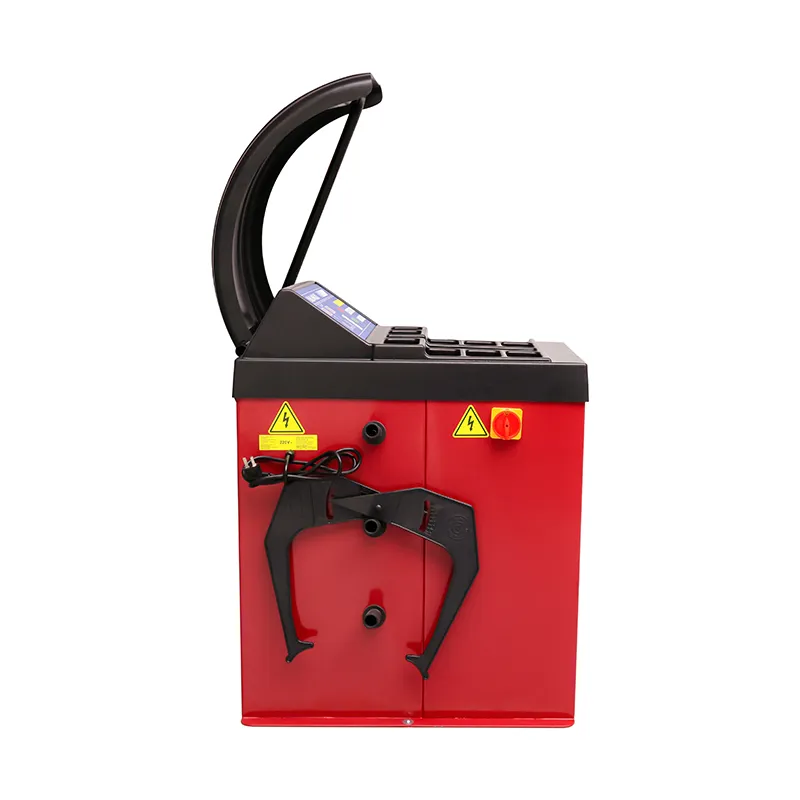

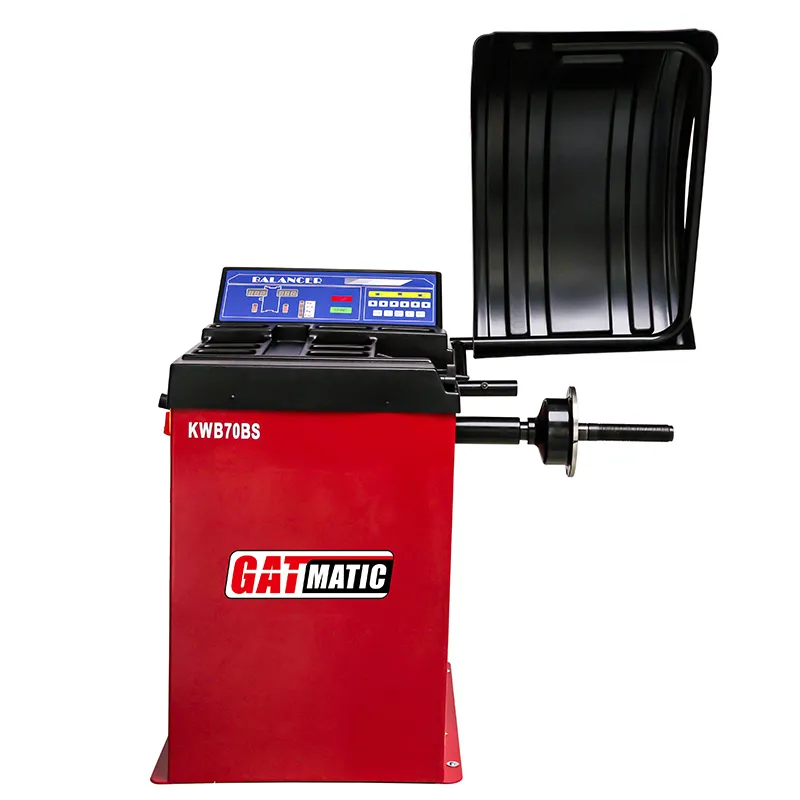

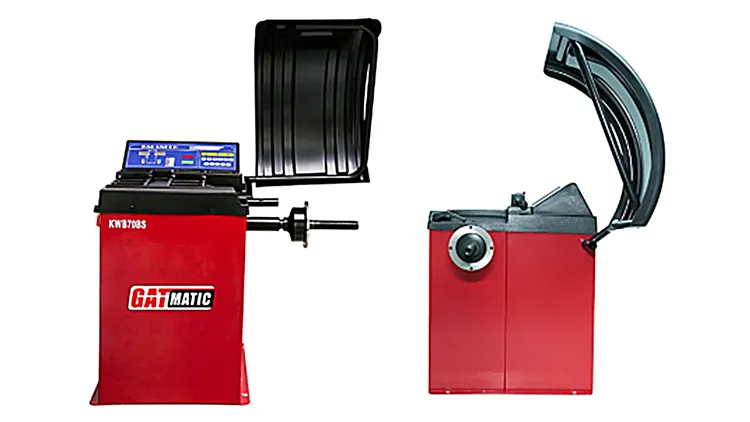

The GATmatic KWB70BS is a high-precision, automatic wheel balancer designed for professional automotive workshops. It accommodates rim diameters from 10" to 24" and widths from 1.5" to 20", making it suitable for a wide range of vehicles. With a balancing speed of up to 195 RPM and an accuracy of ±1g, it ensures optimal wheel balance. Features like automatic start/stop, ALU1/ALU2/ALU3 modes for alloy wheels, and a user-friendly LED interface enhance efficiency and ease of use.
Features
High-Precision Shaft with Self-Calibration
The KWB70BS wheel balancer machine is equipped with a high-precision shaft that ensures accurate wheel balancing. Its integrated self-calibration and scale calibration systems maintain consistent measurement accuracy, reducing the need for manual adjustments and enhancing reliability.
Versatile Application Range
Designed to accommodate a wide range of vehicles, the KWB70BS supports rim diameters from 10" to 24" and widths from 1.5" to 20". This versatility makes it suitable for cars and light commercial vehicles, addressing various wheel balancing needs.
Advanced Balancing Technology
Featuring a high-performance motor that operates at speeds up to 190 RPM, the KWB70BS delivers efficient and precise balancing. Its low-noise operation (below 70 dB) ensures a comfortable working environment, while the ±1g balancing precision enhances vehicle performance and tire longevity.
User-Friendly Interface

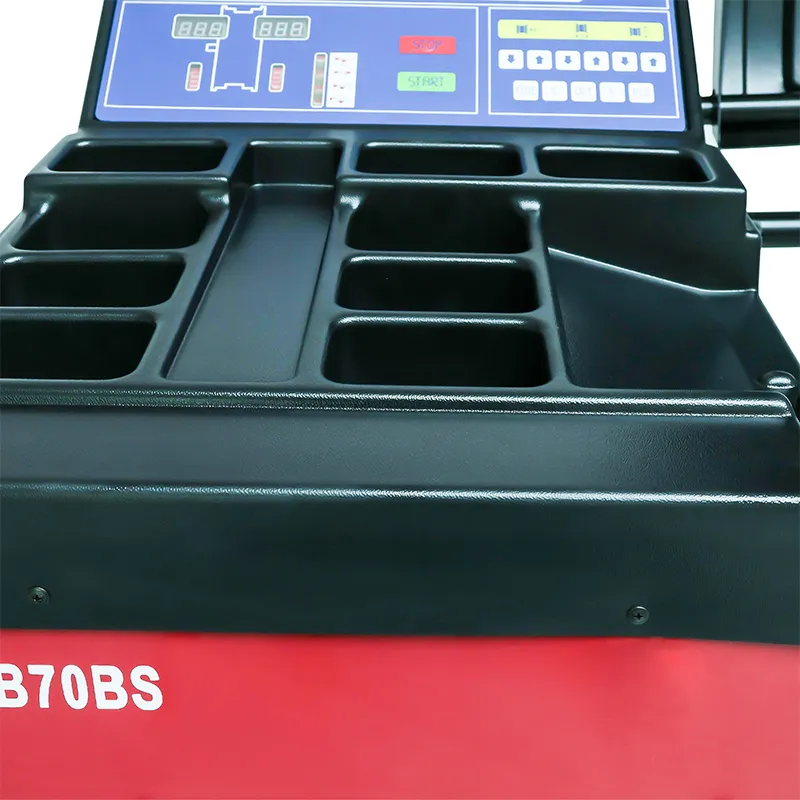

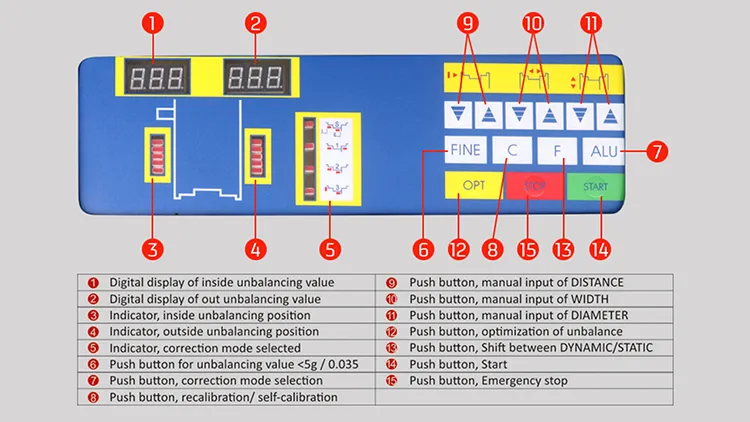

The KWB70BS offers a full LED display for clear a.b.d (distance, diameter, and width) readings. It allows users to switch between gram/ounce and millimeter/inch measurements, catering to different preferences and standards.
Automatic Start/Stop Functionality
To streamline operations, the KWB70BS includes automatic start and stop features. This functionality initiates the balancing process when the wheel guard is lowered and stops it upon completion, enhancing workflow efficiency and safety.
Specialized ALU Modes for Alloy Wheels
The machine incorporates ALU1, ALU2, and ALU3 functions specifically designed for light alloy wheels. These modes adjust the balancing process to accommodate different wheel types, ensuring optimal results for alloy rims.
Specifications
Model
KWB70BS
Rim Diameter
10" - 24"
Max Wheel Diameter
1000mm
Max Wheel Weight
70Kg
Balancing Precision
±1g
Noise
<70dB
Rim Width
1.5" - 20"
Motor Power
185 - 320W
Power Supply
220V 1ph
Balancing Speed
≤195 r.p.m
Weight
100Kg
Packing
970*770*1080mm

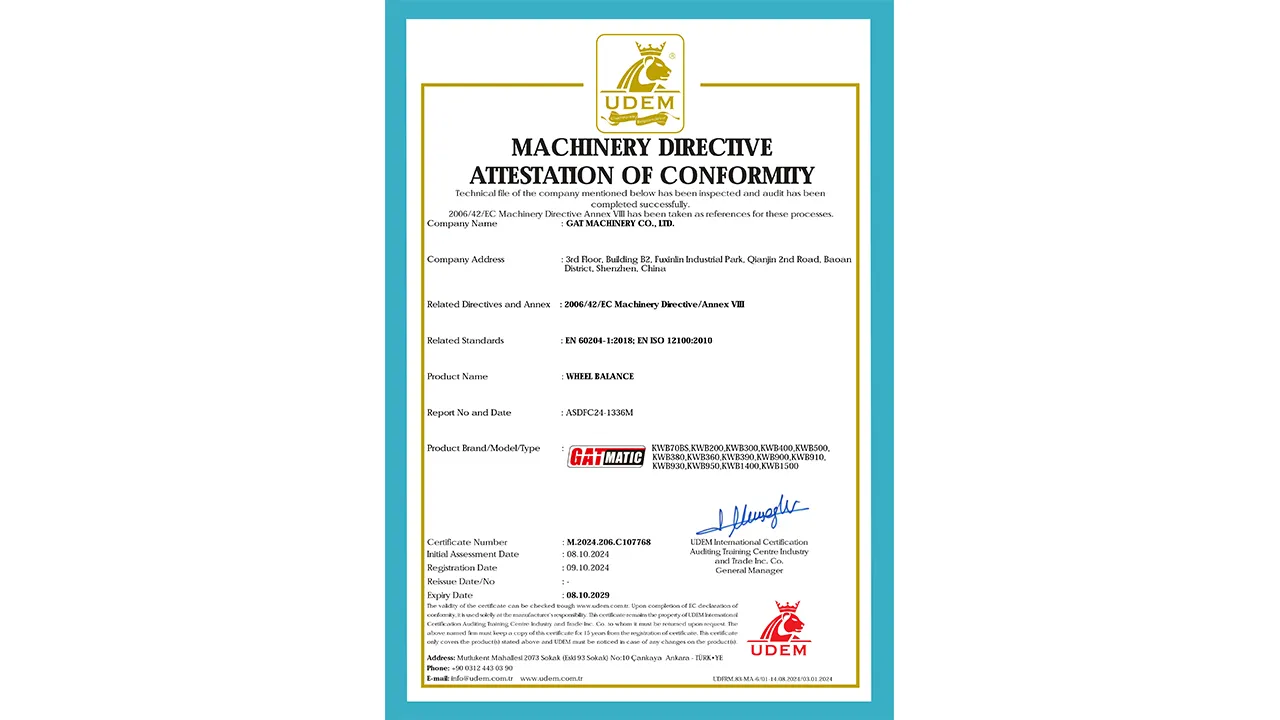

Certificates
Our Factory
GATmatic was founded in 2013. Our factory covers over 9,000 square meters, including an R&D center, multiple production lines, a quality inspection center, and a modern warehouse. Thanks to our factory’s advanced manufacturing equipment, such as the latest digital control cutting machines, CNC punches, bending machines, and automatic welding machines, we have a strong production capacity.
Package
To avoid irresistible damage during transportation, GATmatic offers excellent packaging methods. In addition, it is also very convenient to load and unload with pallets.
Material: Heavy-duty wooden crate with reinforced corners and waterproof plastic wrapping.
Inner Protection: Insert High-density foam to protect fragile components.
Package Information: Product name, weight (kg), dimensions (L×W×H), and serial number.
Transport method: Choose the better transportation way according to situation: Air freight (for urgent orders) or sea freight (full-container load recommended).
