Comparison of 3 Common Wheel Alignment Machines

Introduction

Modern wheel alignment is no longer a “one-size-fits-all” service. With evolving vehicle technologies, workshops need alignment systems that match their clients’ demands. In this blog post, we’ll compare three popular types of wheel alignment machines: CCD wheel alignment machines, 3D wheel alignment machines, and touchless wheel alignment machines. Each type has its own unique features, advantages, and ideal applications.

The Importance of Wheel Alignment Machines

Wheel alignment is an essential aspect of vehicle maintenance that directly impacts driving safety, tire lifespan, and overall vehicle performance. A precise wheel alignment ensures that the vehicle’s wheels are set to the manufacturer’s specifications, helping prevent uneven tire wear and improving fuel efficiency.

CCD Wheel Alignment Machines

Definition & Working Principle

CCD (Charge-Coupled Device) Wheel Alignment Machines use CCD cameras to measure the angles of the wheels and determine their alignment with the vehicle’s frame. The system works by capturing high-resolution images of the wheel positions, which are then analyzed to detect any misalignment.

Advantages

• High Precision: CCD alignment machine is known for their accuracy in measuring wheel angles.

• Easily Operating Computer: Equipped with an easy-to-operate computer with Windows OS. And the whole wheel alignment machine can be moved due to its heavy-duty casters.

• Quick Measurements: They provide fast results, making them ideal for high-traffic repair shops.

• Versatile: Suitable for a wide range of vehicles, including car, trucks and heavy-duty vehicles.

Ideal Use Case

CCD machines are perfect for businesses that require quick, accurate wheel alignment for a variety of vehicle types. These machines are commonly found in shops offering general automotive repair services and tire maintenance.

Limitations

• Slower than 3D systems for complex alignments.

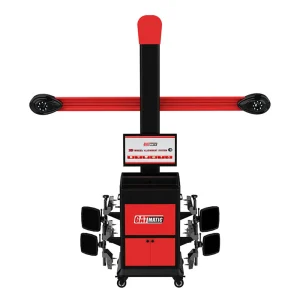

3D Wheel Alignment Machines

Definition & Working Principle

3D Wheel Alignment Machines use advanced laser or camera systems to capture three-dimensional data of the wheel’s position relative to the vehicle. This three-dimensional approach provides a detailed and highly accurate analysis of wheel alignment, ensuring precise adjustments.

Advantages

• Advanced 3D Visualization: The three-dimensional data allows for a more comprehensive understanding of wheel angles and their positioning.

• Precision Adjustments: These machines offer extremely precise measurements, often including visual indicators for ease of use.

• Professional Alignment Software: The software is easy to operate, reading basic four-wheel alignment data within a few minutes.

Ideal Use Case

3D alignment machines are particularly useful in environments where accuracy and speed are paramount, such as large-scale service centers and high-volume tire shops. Their advanced technology makes them ideal for shops that cater to both everyday cars and more specialized vehicles.

Limitations

• Requires trained operators and regular software updates.

Touchless Wheel Alignment Machines

Definition & Working Principle

Touchless wheel alignment machines use infrared sensors and cameras to measure wheel alignment without making physical contact with the vehicle. The system relies on emitting signals and analyzing their reflections to calculate precise measurements.

Advantages

• No Touch Required: As the name suggests, touchless systems eliminate the need for physical interaction with the vehicle, preventing potential damage or wear.

• Quick and Easy Operation: Touchless wheel alignment machines are designed for quick setups and fast results, reducing the time spent per vehicle.

• Convenience: The system’s ease of use makes it an excellent choice for shops seeking to streamline their wheel alignment process.

• Professional Software: Professional software main interface with clearly arranged function modules for easy access,such as camera image monitoring, car model selection, dynamic measurement and so on.

Ideal Use Case

Touchless alignment machines are best suited for high-efficiency environments where speed is critical, such as quick-service shops or mobile repair units. it can get alignment testing data in 5 seconds. Their non-contact nature also makes them ideal for vehicles with sensitive parts.

Limitations

• Requires trained operators and regular software updates.

• Requires stable lighting conditions for optimal scanning.

Comparison Analysis

Accuracy Comparison

While CCD and 3D machines both offer high precision, 3D systems take the lead in providing a more detailed, three-dimensional view of wheel positioning. Touchless systems, though still accurate, may not achieve the same level of precision as CCD or 3D systems in certain scenarios.

Speed Comparison

Which Machine is Faster? Touchless wheel alignment machines tend to offer the fastest results due to their easy setup and quick measurement process. However, 3D systems also provide rapid results with a slight edge in overall efficiency. CCD machines are fast but may require more manual adjustments compared to 3D or Touchless systems.

Maintenance and Operational Costs

• CCD wheel alignment Machine: These are generally cost-effective in terms of maintenance, but they may require periodic calibration and sensor checks.

• 3D wheel alignment Machine: While offering the highest precision, 3D systems can come with higher upfront costs and maintenance fees. However, their efficiency may offset these costs in high-volume shops.

• Touchless wheel alignment System: These systems tend to be lower in maintenance, with fewer mechanical parts to worry about. Their operation is straightforward, but the initial investment can be a little higher compared to basic CCD and 3D systems.

Conclusion

Choosing the right wheel alignment machine depends on your shop’s needs, budget, and the volume of work you handle.

• CCD Wheel Alignment Machine is great for general automotive repair shops needing fast, accurate alignments for various vehicle types.

• 3D Wheel Alignment Machine provides advanced accuracy and efficiency, making them ideal for high-demand environments.

• Touchless Wheel Alignment Machine is perfect for businesses looking for a quick, no-contact solution for fast services.

Explore GATmatic range of 3D, CCD, and Touchless Wheel Aligners or schedule a free consultation with our alignment specialists today!
