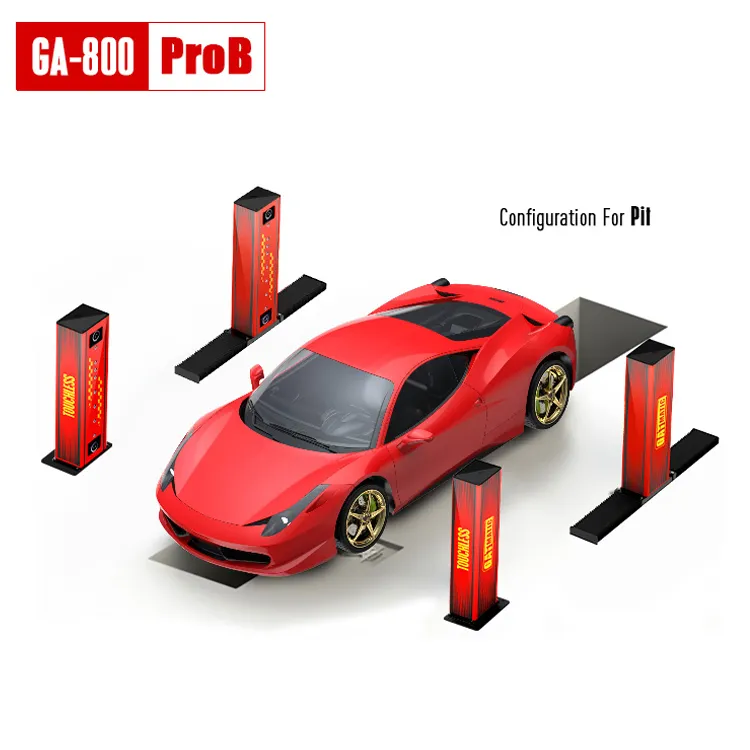

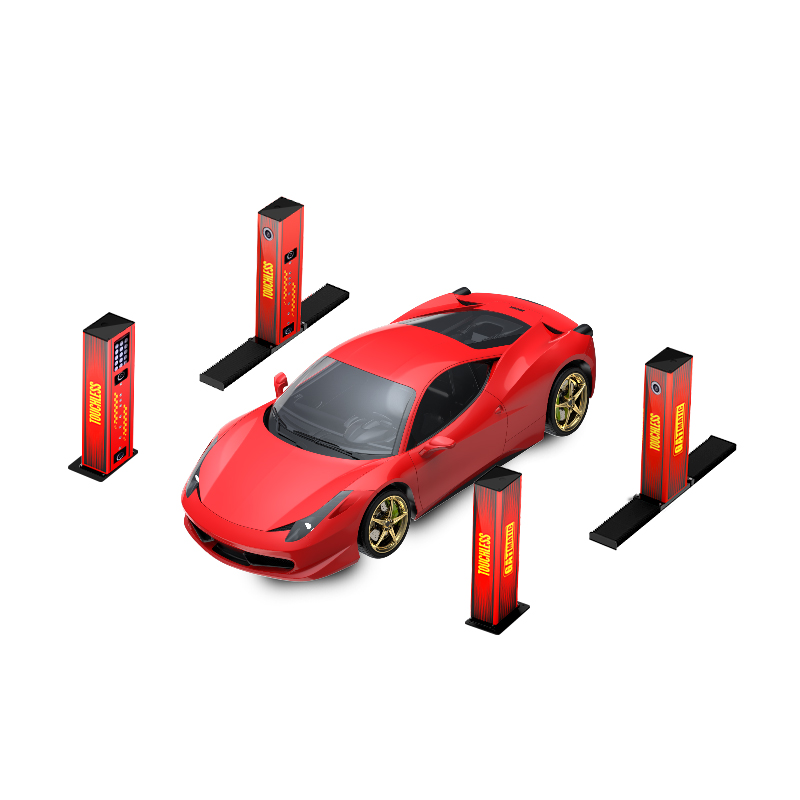

GATmatic is proud to introduce a revolutionary vehicle alignment technology (GA-800PRO B), using High-resolution Cameras, Laser Emitter, and 3D Modeling to obtain Chassis & Wheel Alignment Data. The GA-800 series touchless wheel aligner, as the latest touchless wheel alignment system, delivers alignment test results in just 3 seconds. The new touchless wheel alignment machine makes alignment measuring more accurate and faster. It creates big value for garages and brings an excellent user experience.
Features
Contactless Wheel Alignment Technology
Unlike traditional methods requiring mechanical adjustments, this latest non-contact wheel alignment system captures real-time data by scanning the wheels and chassis, ensuring precise calibration of camber, toe, and caster angles. And without clamps or targets attached, this touchless alignment system can greatly reduce the risk of damage.
Professional Software Interface
The GA-800PRO B touchless wheel alignment machine features a user-friendly main interface with clearly organized function modules for easy access, including camera image monitoring, vehicle model selection, dynamic measurement, and more.

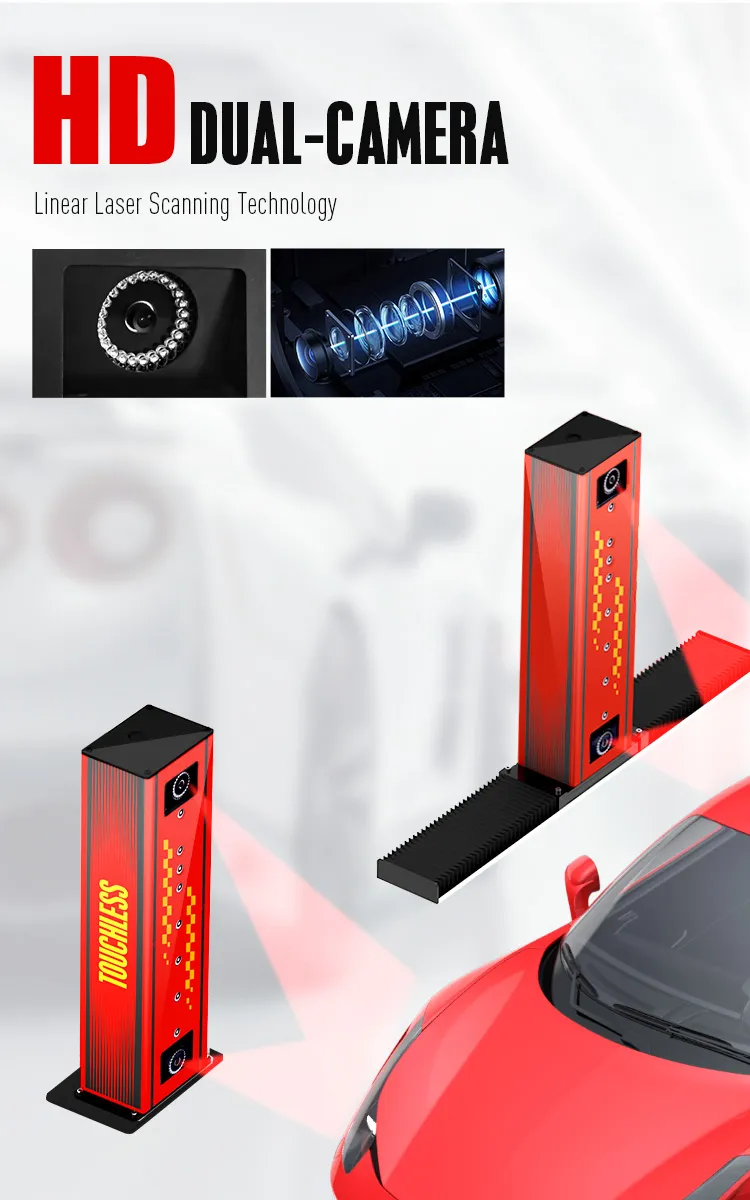

Advanced Camera Monitoring System
Equipped with a powerful camera system by uses high-resolution cameras, sensors, and 3D imaging, GA-800PRO B touchless wheel alignment machine can swiftly capture images of all four wheels. Laser and optical systems help to offer options to display a full four-wheel image or individual wheel images for detailed alignment diagnostics with high accuracy.
Comprehensive Vehicle Database
Boasting a rich and regularly updated vehicle database, this innovative touchless wheel aligner facilitates easy selection of vehicle models and ensures accurate provision of vehicle parameters. With this comprehensive vehicle database, align efficiently all of your customers' vehicles by generating detailed alignment reports, boosting customers’ trust, as well as improving their satisfaction.
- Charming & Elegant Outlooking
- No Clamps – Just Drive In
- Precision Laser Scan Technology
- Results in 3 Seconds
- Anti-Strong Light
- Wide Wheelbases Range
- Smaller Space Required & Powerful Performance
- Smart AI - Drive into Future
Specifications
ITEM
PRECISION
RANGE
Toe-in
±0.6'
±10°
Camber
±1.2'
±10°
Caster
±3'
±20°
SAI/KPI
±3'
±20°
Setback
±1'
±10°
Thrust Angle
±1.2'
±5°
Tread Difference
±0.6mm
Wheelbase Difference
±0.6mm
1900-3500mm
Certificates

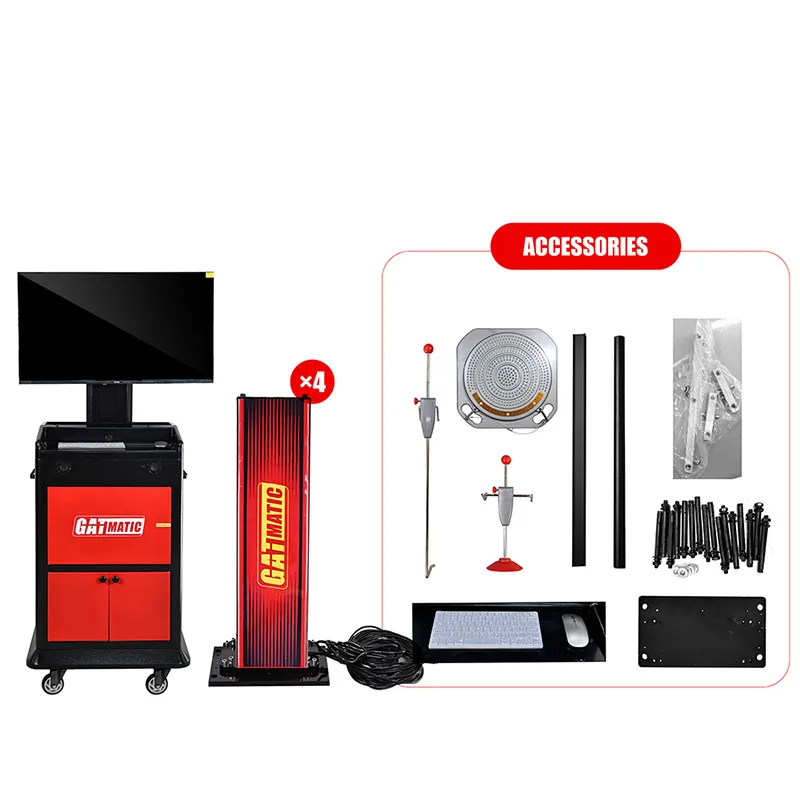

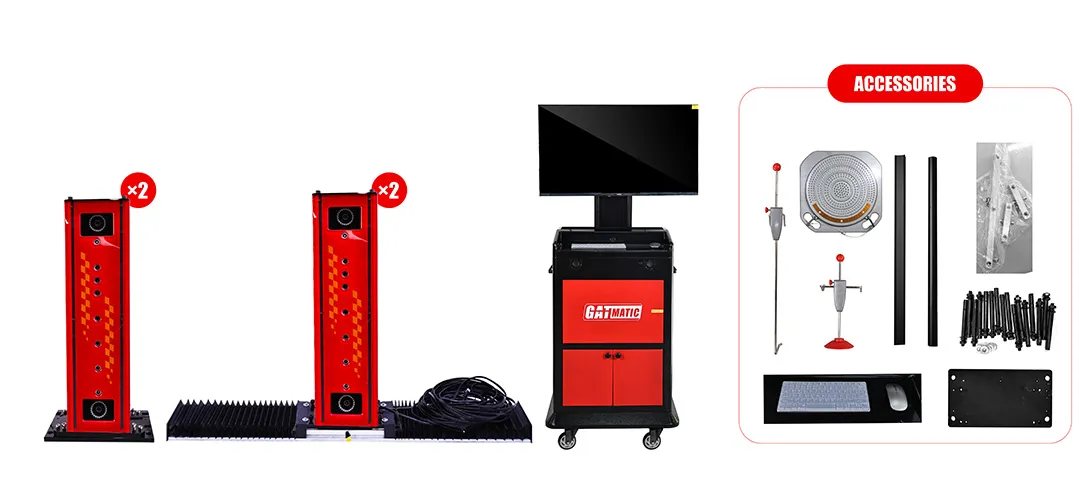

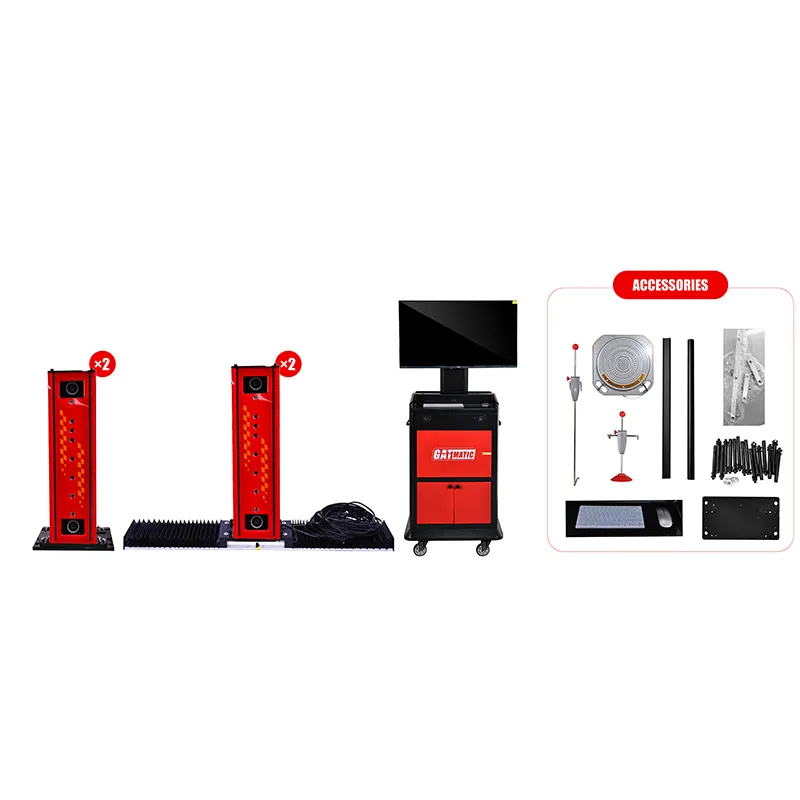

Accessories
Our Factory
GATmatic was founded in 2013. Our factory covers over 9,000 square meters, including an R&D center, multiple production lines, a quality inspection center, and a modern warehouse. Thanks to our factory’s advanced manufacturing equipment, such as the latest digital control cutting machines, CNC punches, bending machines, and automatic welding machines, we have a strong production capacity.
Package
To avoid irresistible damage during transportation, GATmatic offers excellent packaging methods. In addition, it is also very convenient to load and unload with pallets.
Material: Heavy-duty wooden crate with reinforced corners and waterproof plastic wrapping.
Inner Protection: Insert High-density foam to protect fragile components.
Package Information: Product name, weight (kg), dimensions (L×W×H), and serial number.
Transport method: Choose the better transportation way according to situation: Air freight (for urgent orders) or sea freight (full-container load recommended).
