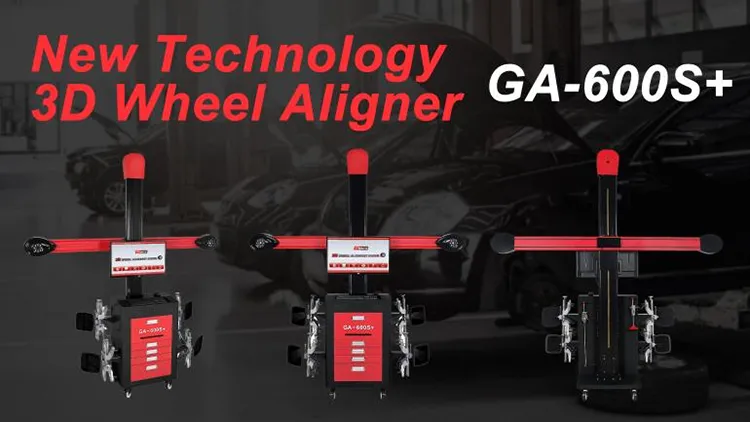

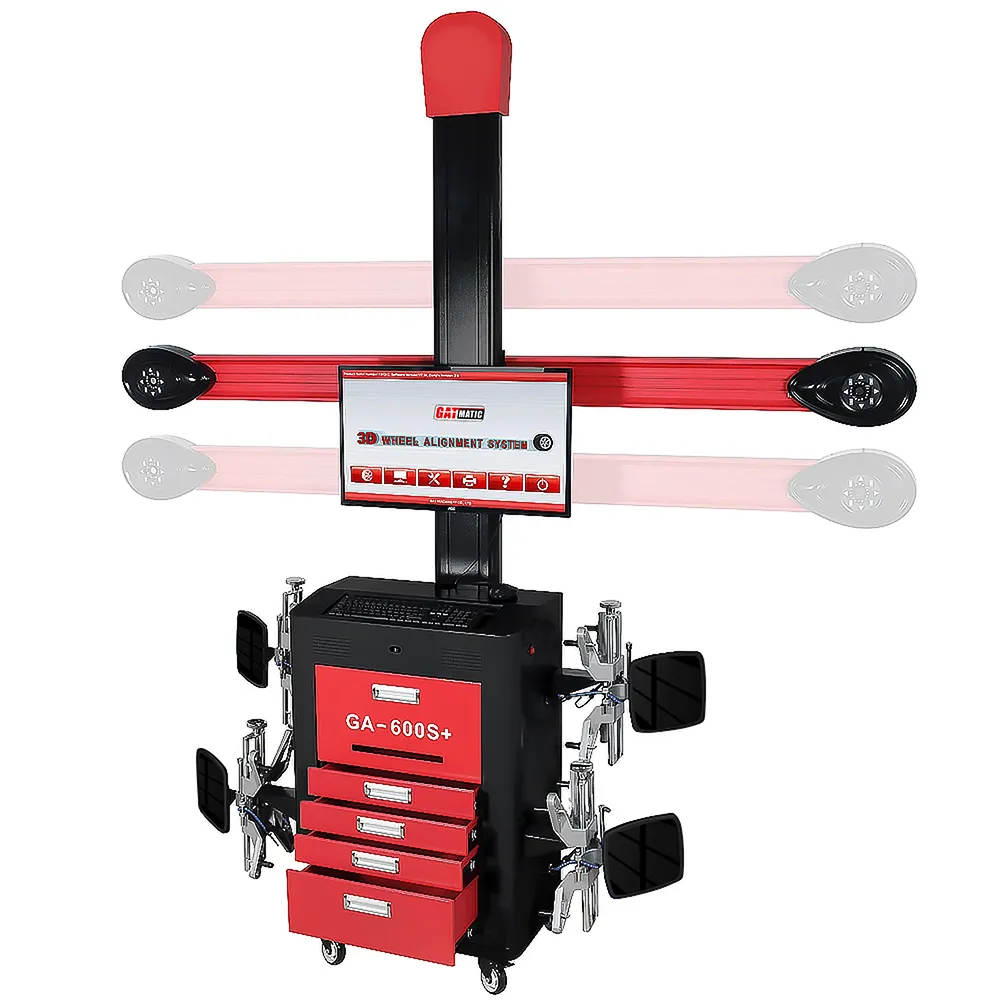

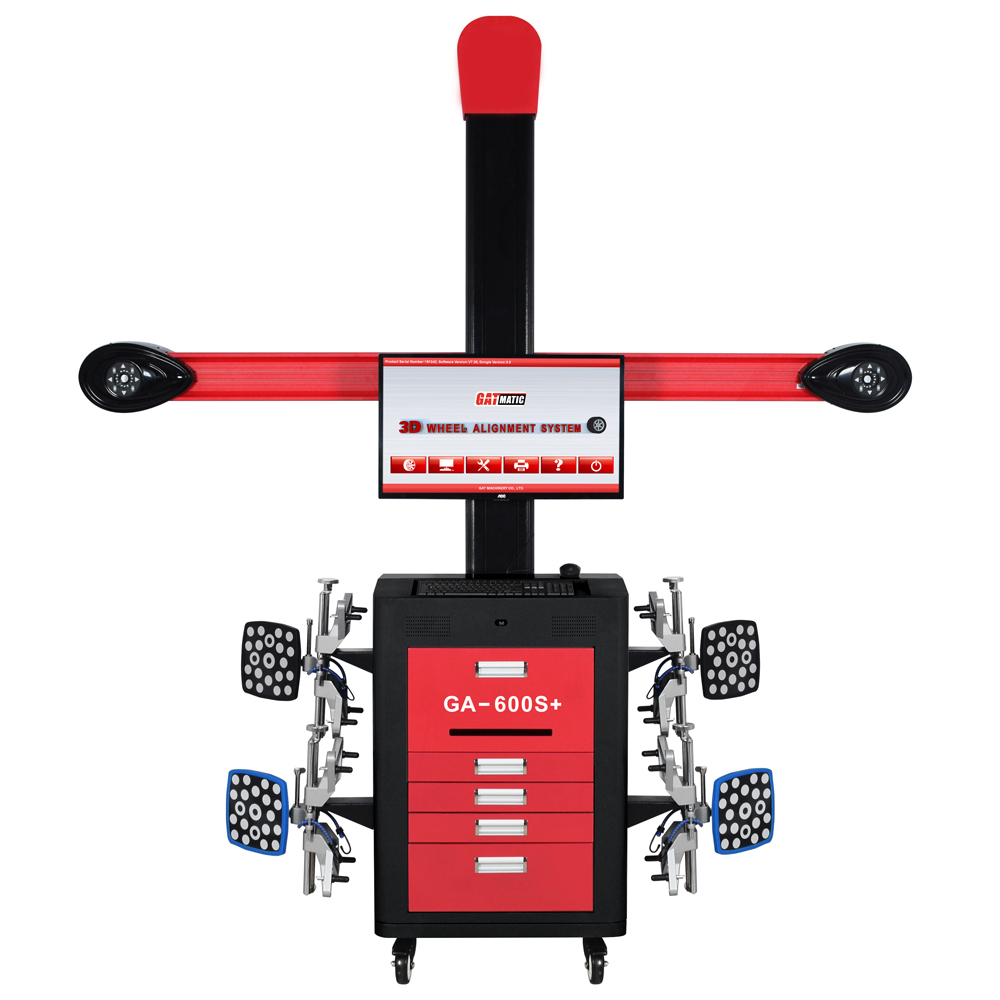

GA-600S+ is a pioneer in the field of 4 wheel alignment equipment and services. A 3D wheel aligner is a sophisticated diagnostic tool used in automotive service to measure and adjust the angles of a vehicle's wheels. It utilizes 3D imaging technology with cameras and sensors to capture real-time data on wheel positions, including: Camber, Toe , Caster, Trust angle etc. One thing special about GA-600S+ wheel alignment machine is that it is equipped with multi-layer drawers contained with special tools, helping technicians to have a better maintenance experience.
Features

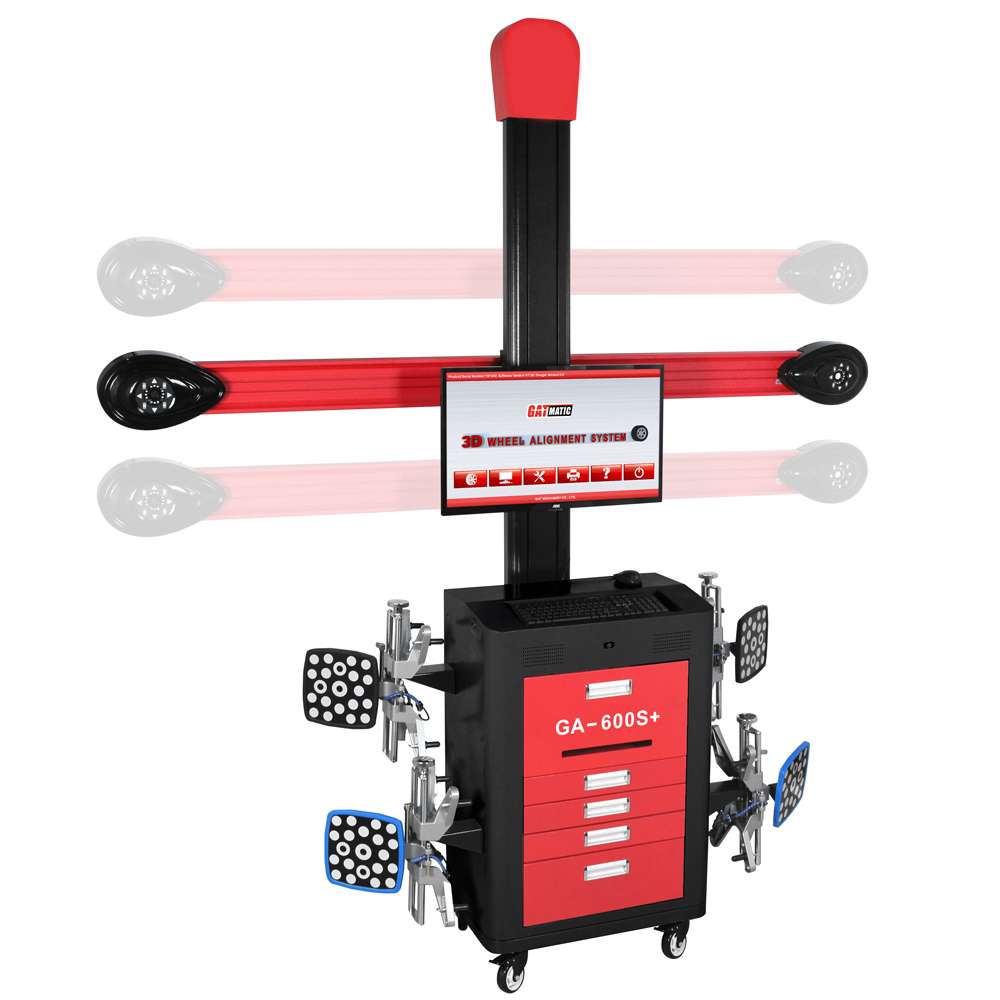

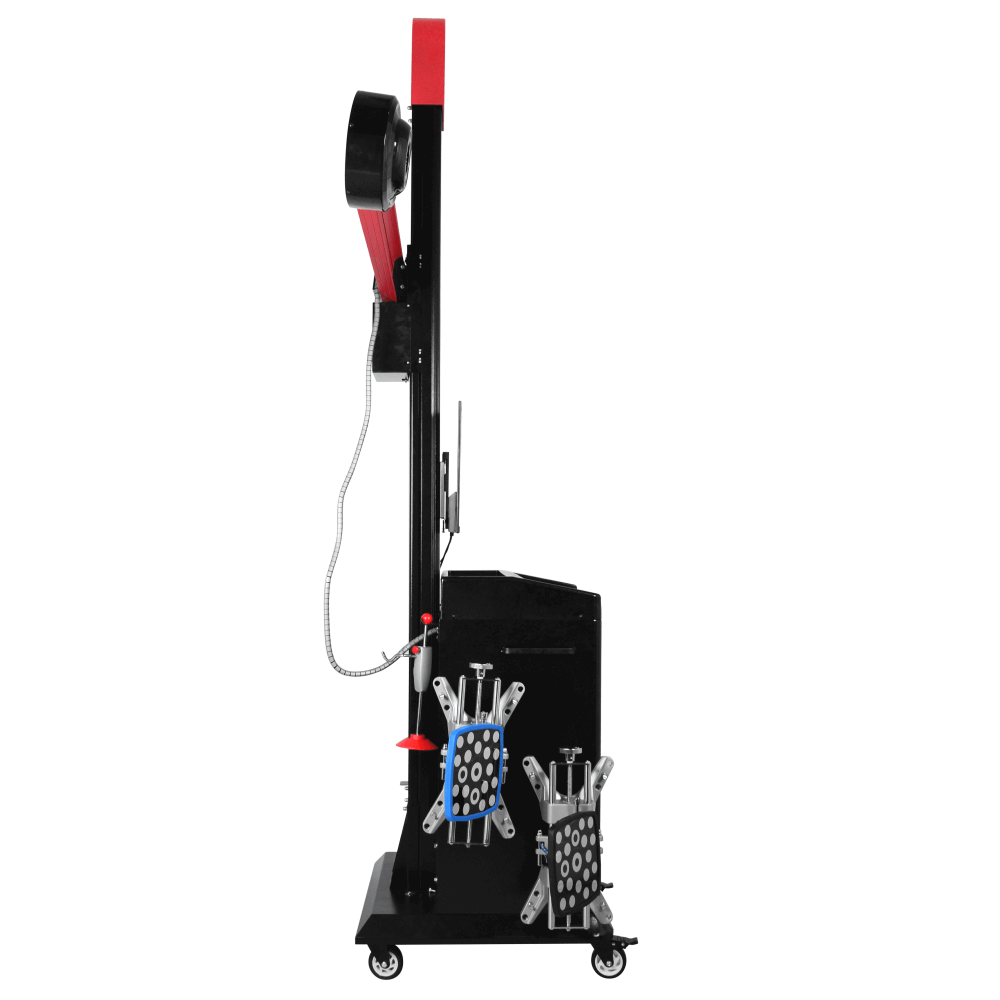

Auto Smart Tracking

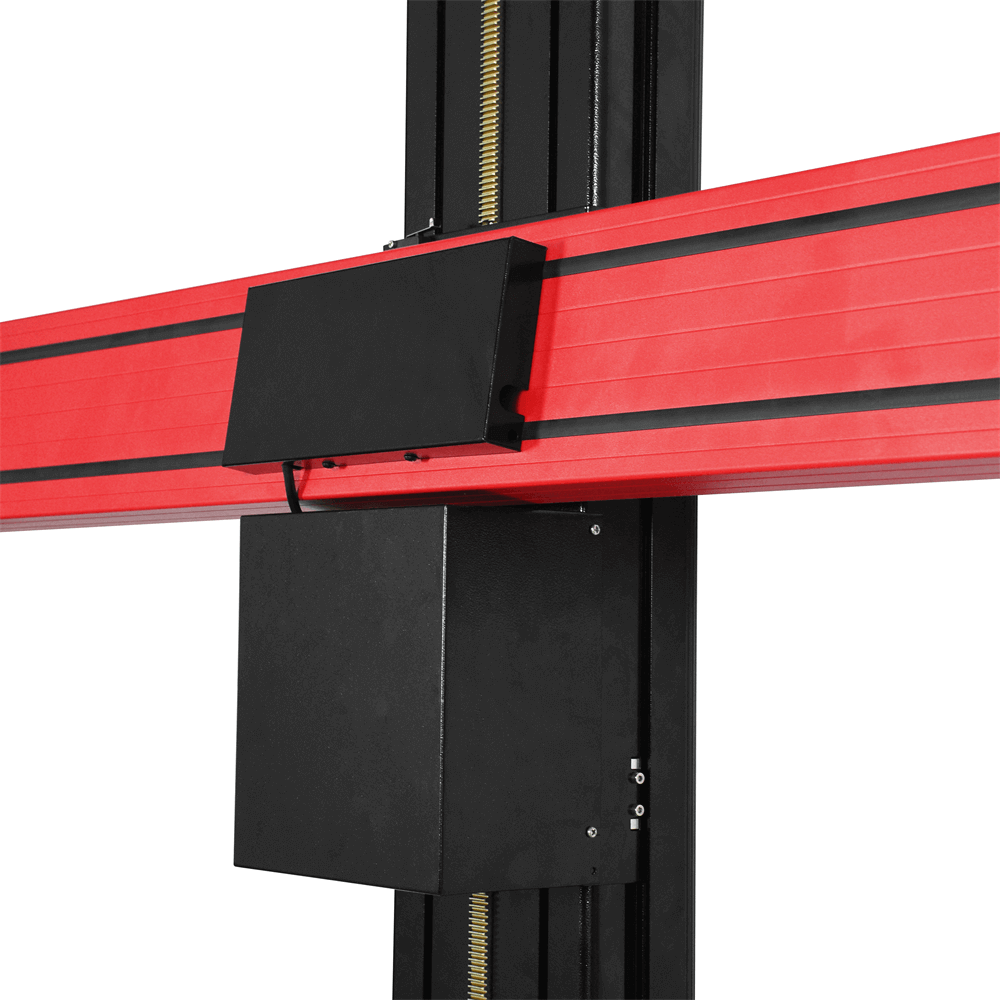

The GA-600S+ 3D four-wheel alignment machine uses an electronically controlled lifting beam, the camera automatically recognizes and finds the target without manual intervention.

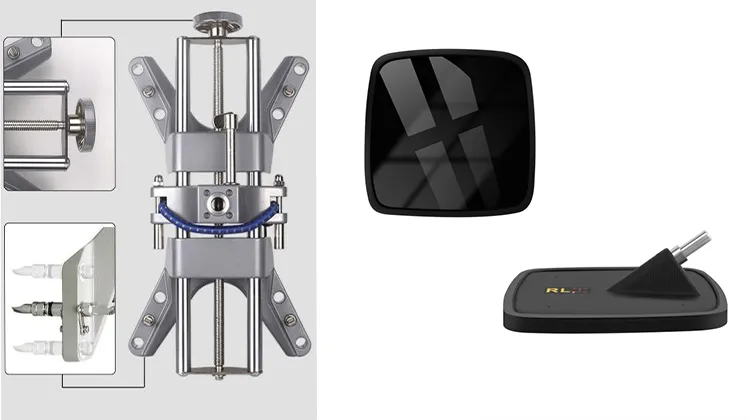

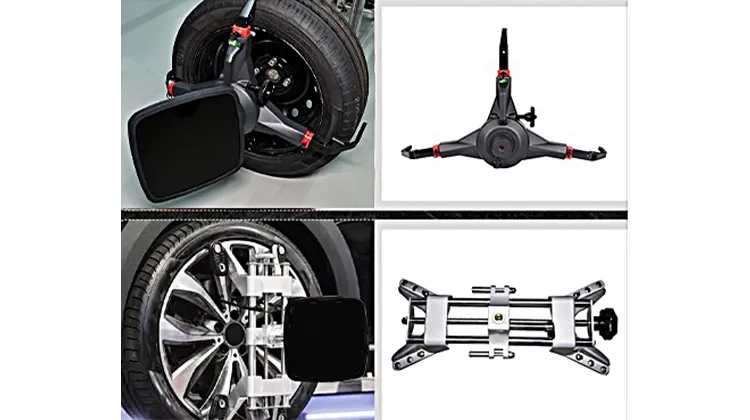

New Targets and Wheel Clamps
The GA-600S+ 3D wheel alignment system is equipped with new four-point clamps and new targets covered with filter film. It performs even better in strong light conditions.

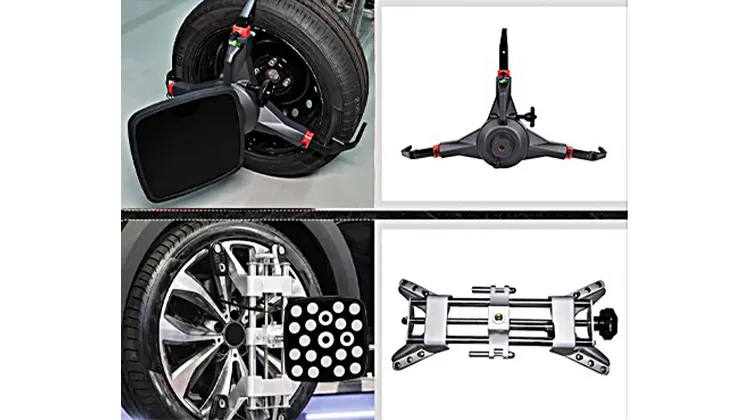

Optional for 3-point Clamp
The vehicle alignment machine offers an optional 3-point clamp design, which facilitates quick installation and easy adjustment. This enables a shorter installation time, thereby achieving faster and more efficient wheel alignment services.

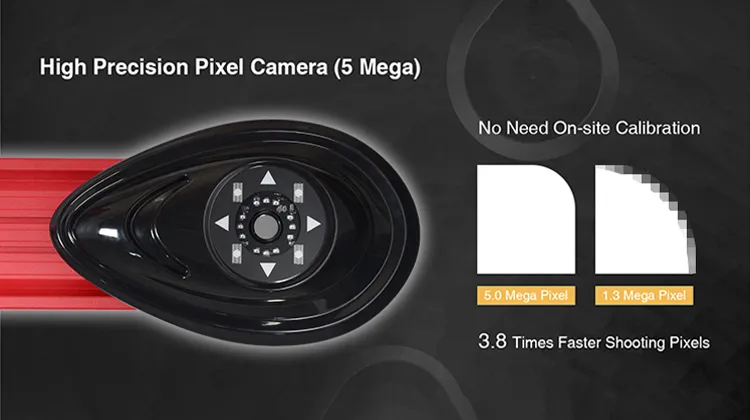

High-precision Industrial 5-megapixel Cameras
The beam of this 3D wheel aligner is equipped with industrial-grade 5 megapixel cameras at both ends, which can capture high-resolution and precise images. This ensures accurate measurement of the wheel alignment and enables the vehicle to achieve optimal performance.
High Accuracy
Achieve unparalleled precision with advanced technology that ensures highly accurate wheel alignment. Every measurement is meticulously calculated, delivering consistent, reliable results that enhance vehicle performance and extend tire life.
Reliable Repeatability
GA-600S+ 3D wheel alignment machine demonstrates excellent repeatability with measurement consistency within ±2’ across multiple tests.
Compatible with multi lift types
All kinds of car lifts such as two-post lifts, 4-post lifts, and scissor lifts are suitable for GA-600S+ 3D Wheel Aligner.

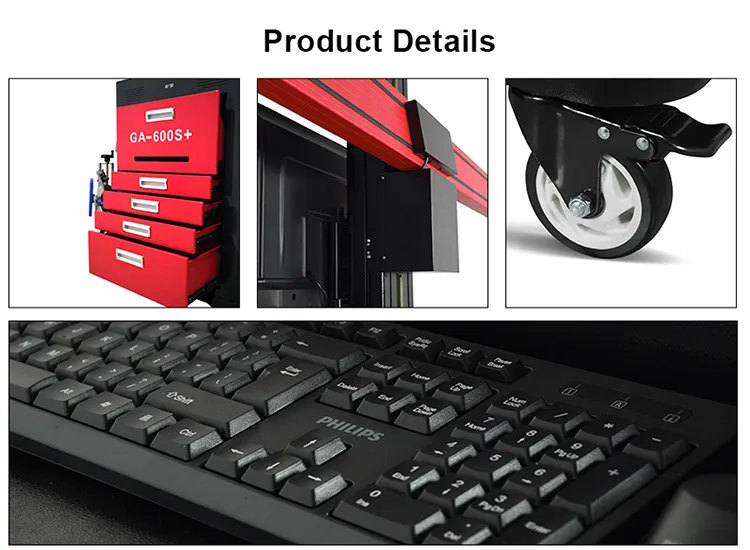

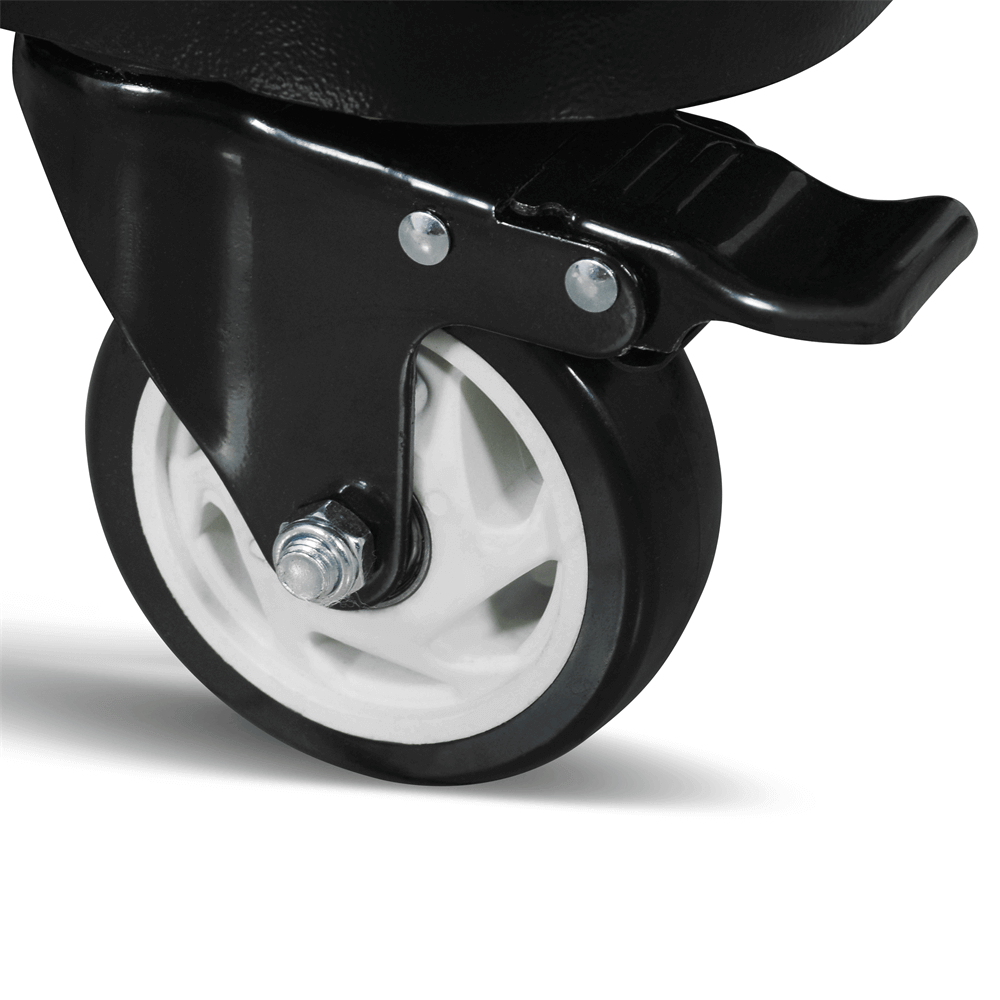

Moveable for Multi-station Scenario
Under the cabinet of this four-wheel positioning instrument, there are small wheels. The entire machine can be moved in multi-station scenarios.
Multi-language & Windows OS
The software can be set in multiple languages, such as English, Spanish, Russian, German, Arabic, Thai, and Portuguese. It is convenient for technicians to use in most countries. And the wheel alignment machine supports Windows 7/ 8/ 10.

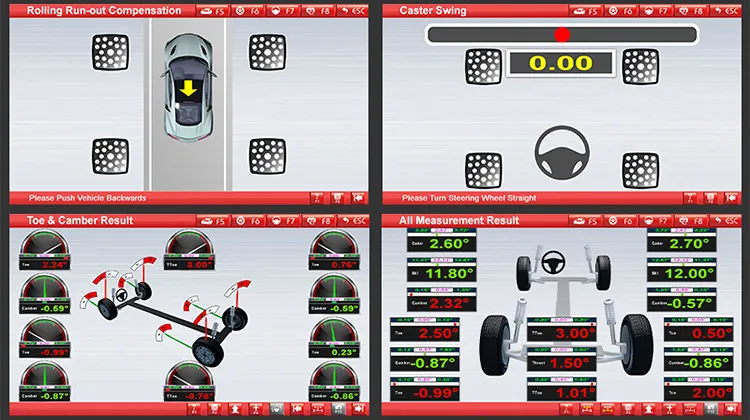

Innovative Software Update
Professional software with a user-friendly & concise interface. Added with characteristic instructions and step-by-step guidance. Making wheel alignment a pleasant & easy journey.
Powerful Database
With a robust database, this mobile 3D wheel aligner stores and recalls vehicle specifications effortlessly, enabling quick access to a wide range of models and ensuring seamless, accurate alignments every time.
Advantages
- New four-point clamps, covered with filter film. Works better under hard light environment.
- With unique Algorithm, accuracy and repeatability are highly reliable.
- Work on Big Scissor/4 Post/Pit/Small Scissor/2 post lift.
- Multiple languages optional
- Wheel clamps accommodating a wide range of wheel sizes
- Automatically calculating wheel diameter
- Optional for 3-point clamp
- Equipped with high-precision industrial 5-megapixel cameras
- Professional software with a user-friendly interface with instructions and step-by-step guidance
- Quick testing mode, saving time and working efficiently
- Dynamic coordinate, not affected by the inclination of lift
Specifications
ITEM
PRECISION
RANGE
Toe-in
±2'
±20°
Camber
±2'
±20°
Caster
±4'
±20°
SAI/KPI
±6'
±20°
Setback
±2'
±5°
Thrust Angle
±2'
±5°
Tread Difference
±2mm
Wheelbase Difference
±2mm
Certificates

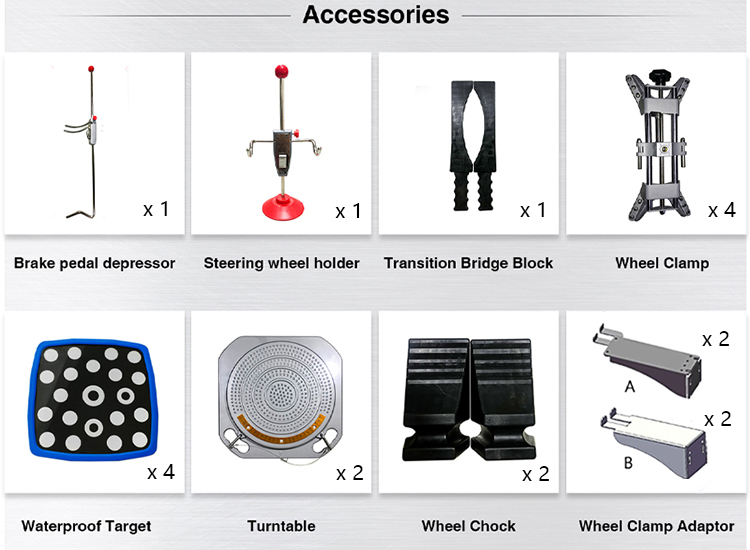

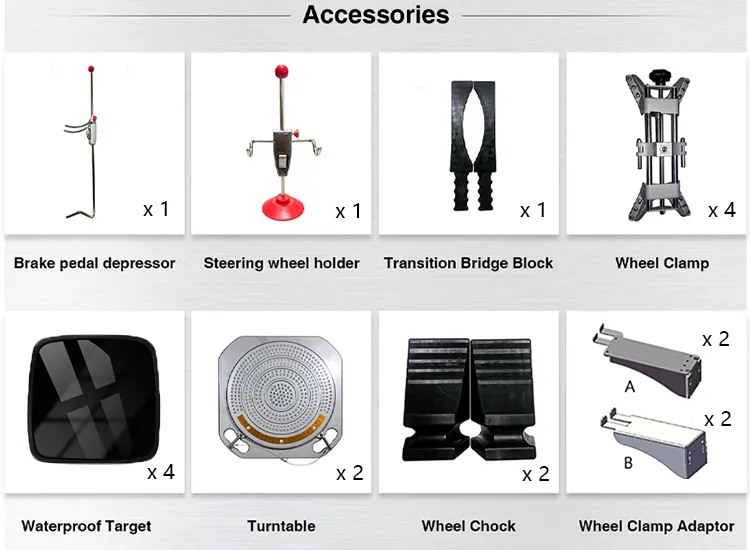

Wheel Aligner Accessories
Turntable
Wheel Clamp
Wheel Chock
Water-proof Target
2
4
2
4
Wheel Clamp Adaptor
Brake Pedal Depressor
Steering Wheel Holder
Transition Bridge Block
4
1
1
1
Our Factory
GATmatic was founded in 2013. Our factory covers over 9,000 square meters, including an R&D center, multiple production lines, a quality inspection center, and a modern warehouse. Thanks to our factory’s advanced manufacturing equipment, such as the latest digital control cutting machines, CNC punches, bending machines, and automatic welding machines, we have a strong production capacity.
Package
To avoid irresistible damage during transportation, GATmatic offers excellent packaging methods. In addition, it is also very convenient to load and unload with pallets.
Material: Heavy-duty wooden crate with reinforced corners and waterproof plastic wrapping.
Inner Protection: Insert High-density foam to protect fragile components.
Package Information: Product name, weight (kg), dimensions (L×W×H), and serial number.
Transport method: Choose the better transportation way according to situation: Air freight (for urgent orders) or sea freight (full-container load recommended).
