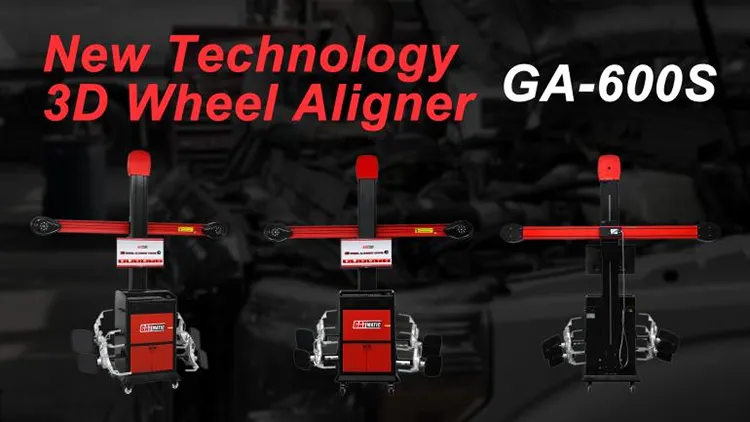

GA-600S Auto Tracking 3D Movable Wheel Alignment Machine
– New four-point clamps – Smart tracking targets – Accurate measurements – Work on different car lifts – Multiple languages option – Wheel clamps accommodating a wide range of wheel sizes – Automatically calculating wheel diameter
The GA-600S 3D wheel aligner utilizes advanced 3D positioning technology to deliver precise and efficient wheel alignment services. Its versatile design allows compatibility with various lift types, including small scissor lifts, making it suitable for diverse workshop environments.
The aligner's post is ingeniously fixed behind the cabinet, optimizing space utilization and enabling mobility during testing procedures. This feature is particularly beneficial for workshops with limited space, as it facilitates easy repositioning and storage.
Features
Auto Tracking Targets
The high-precision target has automatic tracking technology, which perfectly guarantees the accuracy of four-wheel positioning and makes the measurement more accurate, ensures alignment at the best working height. The single post is designed to be placed behind the cabinet, saving space for the wheel aligner.

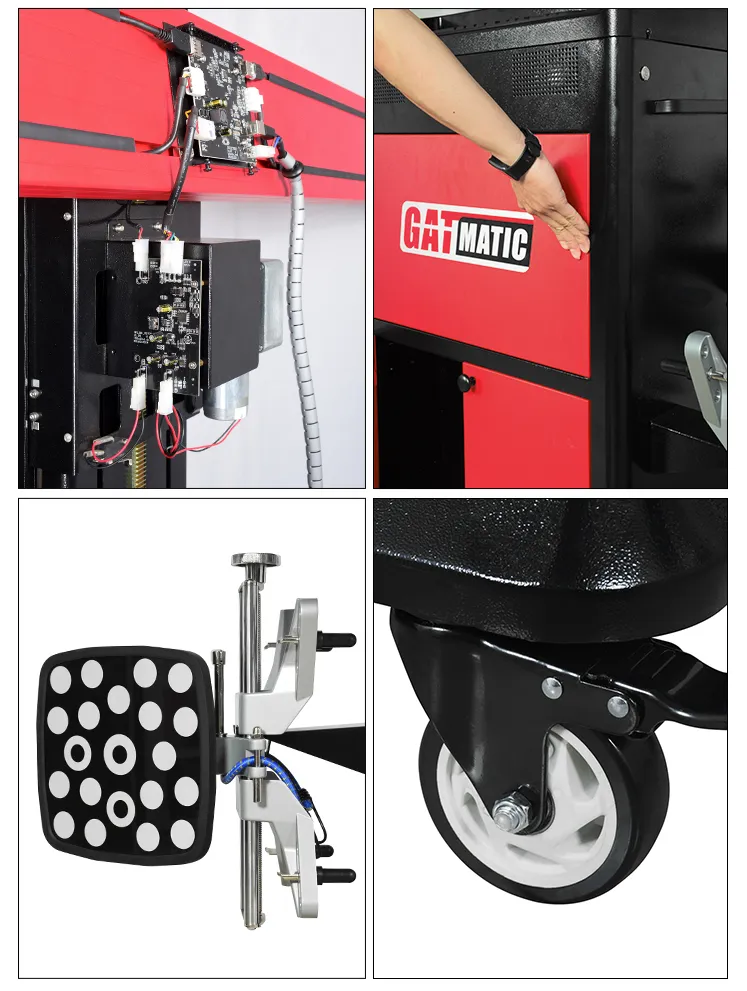

New Targets and Wheel Clamps
New four-point clamps, new targets covered with filter film. Works better under hard light environment.
Optional for 3-point Clamp
New 3-point clamp. High-strength design enables rapid wheel mounting.

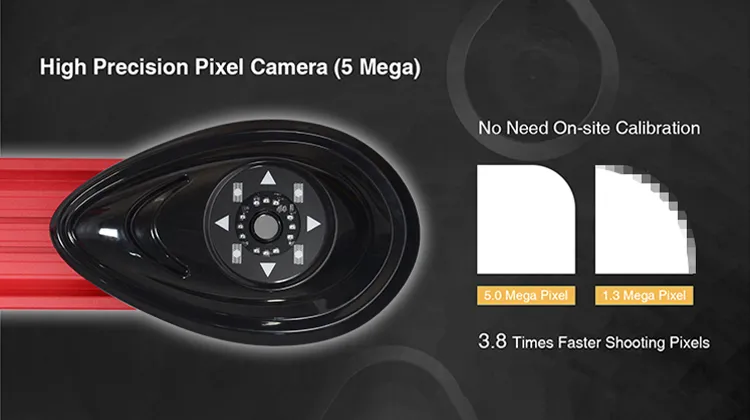

High-precision Industrial 5-megapixel Cameras
High-resolution, multi-processor camera technology provides precise, vivid location readings and testing data.
High Accuracy
With unique Algorithm, accuracy is highly guaranteed.
Reliable Repeatability
GA-600S demonstrates excellent repeatability with measurement consistency within ±2’ across multiple tests.

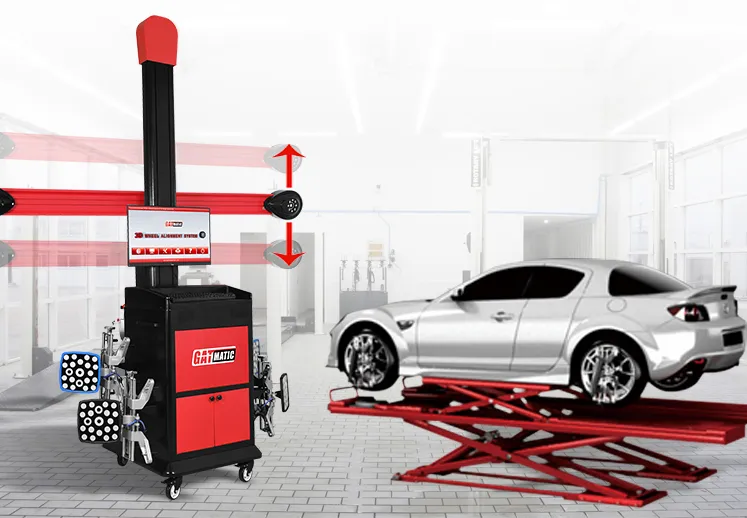

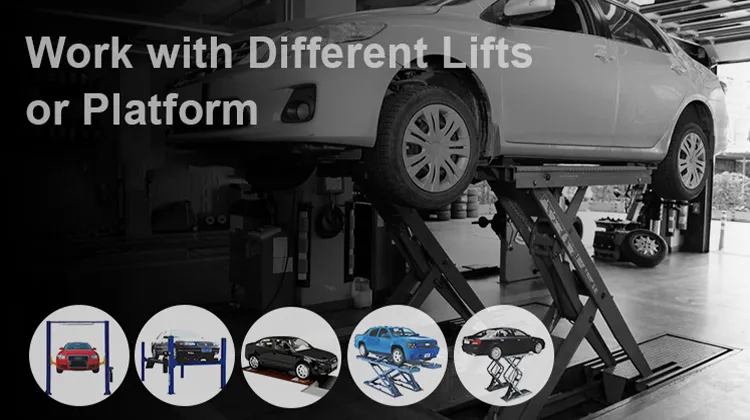

Work On All Kinds Of Lifts
The GA-600S 3D Wheel Aligner is engineered to be compatible with a wide range of lifting platforms, including ground pits, four-post lifts, and scissor lifts. This versatility ensures seamless integration into diverse workshop setups, enhancing operational efficiency and adaptability.
Moveable for Multi-station Scenario
The whole machine can be moved for multi-station scenario.
Multi-language & Windows OS
The software can be set in multiple languages, such as English, Spanish, Russian, German, Arabic, Thai, and Portuguese. It is convenient for technicians to use in most countries. And the wheel alignment machine supports Windows 7/ 8/ 10.

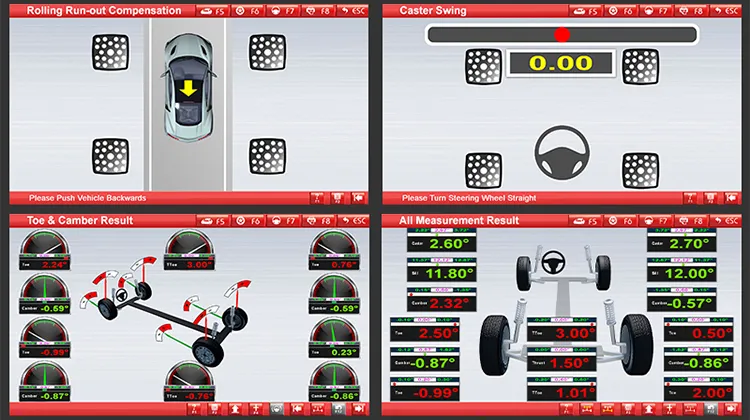

Professional Alignment Software
The software is easy to operate, reading basic four-wheel alignment data within a few minutes. It automatically calculates wheel diameter, with no need to input manually with a unique quick testing mode, saving time and working efficiently.
Innovative Software Update
Professional software with a user-friendly&concise interface. Added with characteristic instructions and step-by-step guidance. Making wheel alignment a pleasant&easy journey.
Powerful Database
Newest worldwide vehicle database, updated 1-2 times yearly.
Large Capacity Cabinet
Large & deep cabinets meet a variety of storage needs.
Advantages
New four-point clamps, covered with filter film. Works better under hard light environment.
With unique Algorithm, accuracy and repeatability are highly reliable.
Work on Big Scissor/4 Post/Pit/Small Scissor/2 post lift.
Multiple languages optional
Wheel clamps accommodating a wide range of wheel sizes
Automatically calculating wheel diameter
Optional for 3-point clamp
Equipped with high-precision industrial 5-megapixel cameras
Professional software with a user-friendly interface with instructions and step-by-step guidance
Quick testing mode, saving time and working efficiently
Dynamic coordinate, not affected by the inclination of lift
Specifications
ITEM
PRECISION
RANGE
Toe-in
±2'
±20°
Camber
±2'
±20°
Caster
±4'
±20°
SAI/KPI
±6'
±20°
Setback
±2'
±5°
Thrust Angle
±2'
±5°
Tread Difference
±2mm
Wheelbase Difference
±2mm

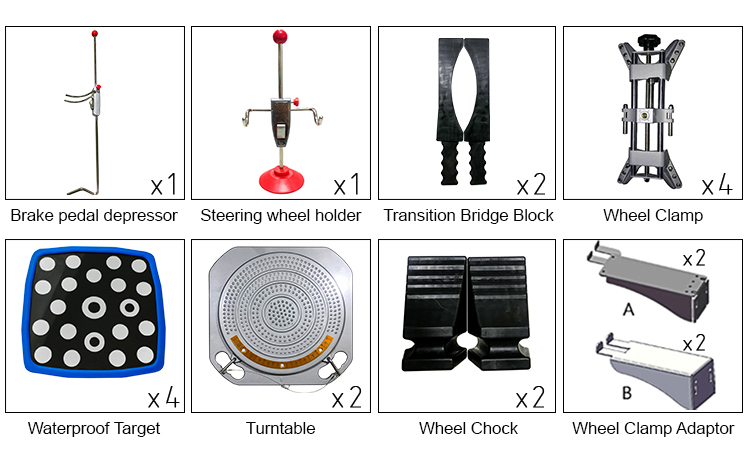

Wheel Aligner Accessories
Turntable
Wheel Clamp
Wheel Chock
Water-proof Target
2
4
2
4
Wheel Clamp Adaptor
Brake Pedal Depressor
Steering Wheel Holder
Transition Bridge Block
4
1
1
2
Our Factory
GATmatic was founded in 2013. Our factory covers over 9,000 square meters, including an R&D center, multiple production lines, a quality inspection center, and a modern warehouse. Thanks to our factory’s advanced manufacturing equipment, such as the latest digital control cutting machines, CNC punches, bending machines, and automatic welding machines, we have a strong production capacity.
Package
To avoid irresistible damage during transportation, GATmatic offers excellent packaging methods. In addition, it is also very convenient to load and unload with pallets.
Material: Heavy-duty wooden crate with reinforced corners and waterproof plastic wrapping.
Inner Protection: Insert High-density foam to protect fragile components.
Package Information: Product name, weight (kg), dimensions (L×W×H), and serial number.
Transport method: Choose the better transportation way according to situation: Air freight (for urgent orders) or sea freight (full-container load recommended).
