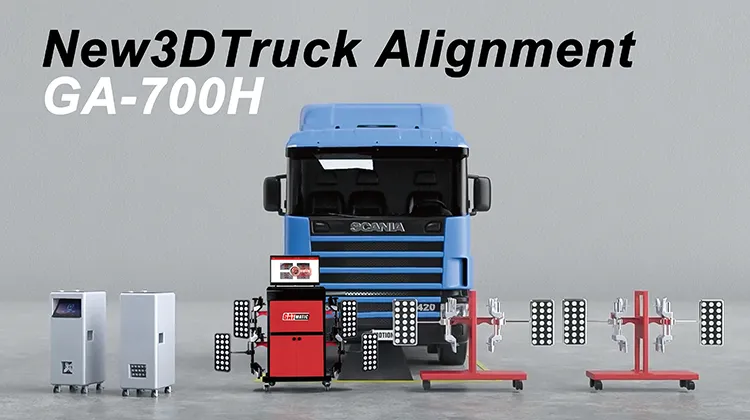

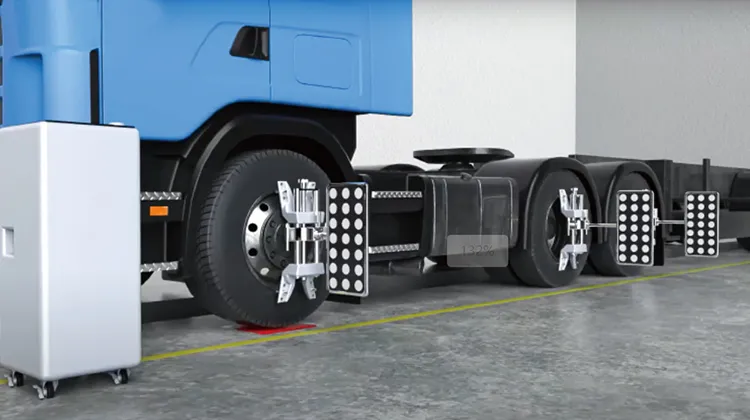

GA-700H truck wheel aligner is an advanced computerized system that uses high-resolution cameras and optical sensors to perform precise wheel alignment measurements for commercial vehicles. Unlike traditional aligners, it creates a three-dimensional digital model of the truck's wheel positions by capturing real-time images of reflective targets mounted on each wheel. The software of truck wheel alignment machine analyzes suspension geometry parameters including toe, camber, caster, thrust angle, and axle alignment with accuracy up to ±0.02 degrees.
Features
Space-Saving Design for Efficient Use
The compact design of the truck wheel aligner system helps save valuable workspace, making it ideal for smaller shops or garages while still providing full functionality and high-performance wheel alignment.
Fast operation
With a rapid measurement and testing time of just 15-40 seconds, this mobile truck alignment equipment significantly speeds up the wheel alignment process, boosting productivity and minimizing downtime in busy service environments.
Anti-shake technology
The anti-shake measurement technology eliminates errors caused by vehicle movement, ensuring precise and stable alignment results even during the testing process, for reliable performance every time.
Multi-language & Windows OS
The software can be set in multiple languages, such as English, Spanish, Russian, German, Arabic, Thai, and Portuguese. It is convenient for technicians to use in most countries. And the wheel alignment machine supports Windows 7/ 8/ 10.
Wide measurement range

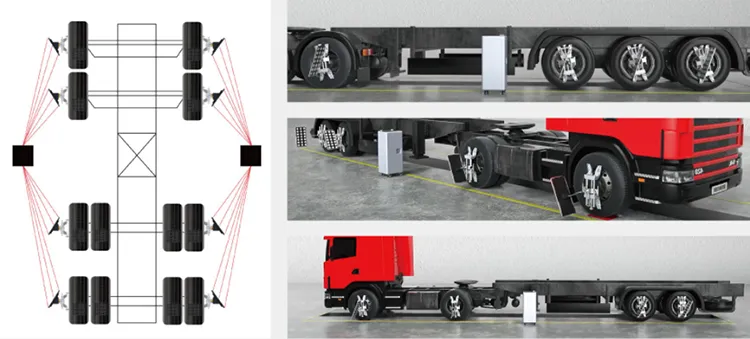

Alignment head is placed in the middle of the front and rear axles for measurement, the longest wheelbase can reach 7.2 meters.
Newly updated software
The software and database of the truck wheel alignment machine are updated annually to ensure a user-friendly experience for wheel alignment.
Advantages

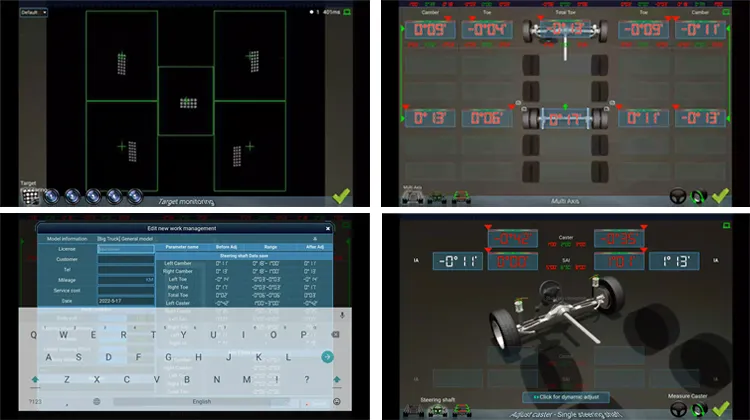

- Real-time monitoring of the change of alignmentangle
- With unique Algorithm,accuracy and repeatability are highly reliable.
- Multiple languages option
- Realizing simultaneous adjustment of dual-axis steering, greatly reducing errors.
- Equipped with high-precision industrialcameras.
Specifications
ITEM
PRECISION
RANGE
Toe-in
±0.02°
±22.5°
Camber
±0.02°
±8°
Caster
±0.05°
±19°
SAI/KPI
±0.02°
±19°
Turning Angle
±0.08°
±22.5°
Track Width Difference
±0.03°
±2°
Front Setback
±0.02°
±2°
Maximal Turning Angle
±0.02°
±45°
Measured Rim Range
15’’-28’’
Maximal Wheelbase
12m Used on Two Axle Car
Certificates
Accessories List
Turntable
Wheel Clamp
Wheel Chock
Water-proof Target
2
4
2
4
Wheel Clamp Adaptor
Brake Pedal Depressor
Steering Wheel Holder
Transition Bridge Block
4
1
1
2
Our Factory
GATmatic was founded in 2013. Our factory covers over 9,000 square meters, including an R&D center, multiple production lines, a quality inspection center, and a modern warehouse. Thanks to our factory’s advanced manufacturing equipment, such as the latest digital control cutting machines, CNC punches, bending machines, and automatic welding machines, we have a strong production capacity.
Package
To avoid irresistible damage during transportation, GATmatic offers excellent packaging methods. In addition, it is also very convenient to load and unload with pallets.
Material: Heavy-duty wooden crate with reinforced corners and waterproof plastic wrapping.
Inner Protection: Insert High-density foam to protect fragile components.
Package Information: Product name, weight (kg), dimensions (L×W×H), and serial number.
Transport method: Choose the better transportation way according to situation: Air freight (for urgent orders) or sea freight (full-container load recommended).
