– Special used for heavy-duty truck
– LCD screen displaying real-time data
– Equipped with high-accuracy wheel clamps
– Remote control key to finish wheel alignment
– With 8 CCD sensors for the all-around measurement of the vehicles
– Wireless data transfers with a 2.4GHz ZigBee or Bluetooth radio module

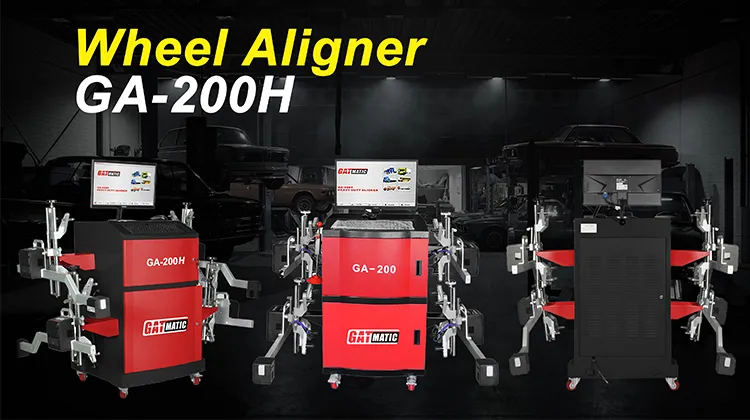

GA-200H CCD truck wheel aligner is a high-precision optical alignment system specifically designed for commercial vehicles, utilizing Charge-Coupled Device (CCD) camera technology to measure and correct wheel geometry parameters with industrial-grade accuracy.
Features

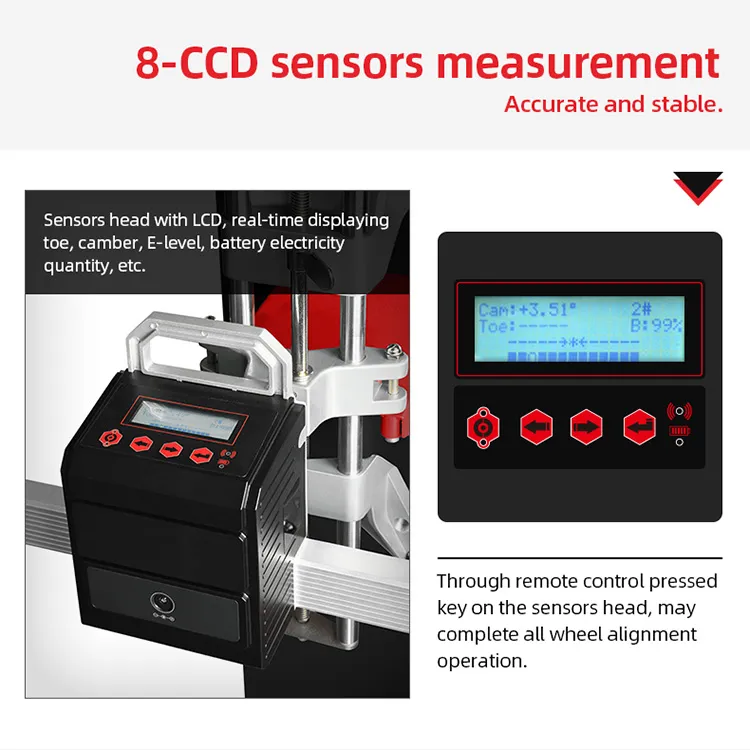

8-CCD Sensors Measurement
The sensors head is equipped with LCD which can real-time display toe, camber, E-level, and battery electricity quantity. Technicians can check the alignment data in time. Through remote control pressing the key on the sensor's head, may complete all wheel alignment operations.

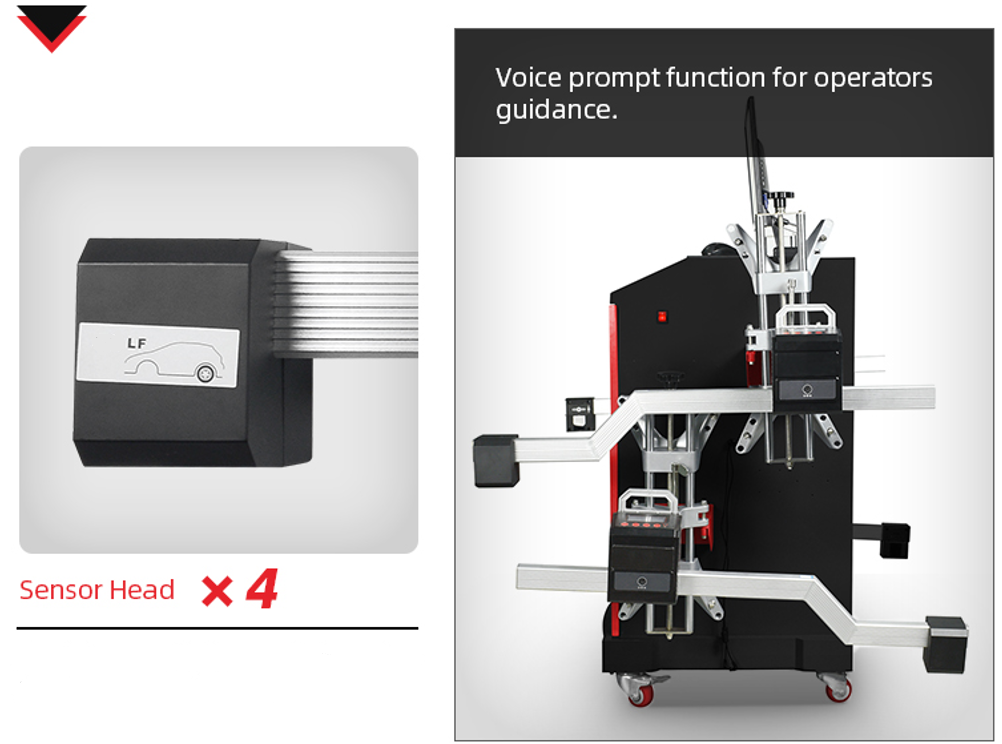

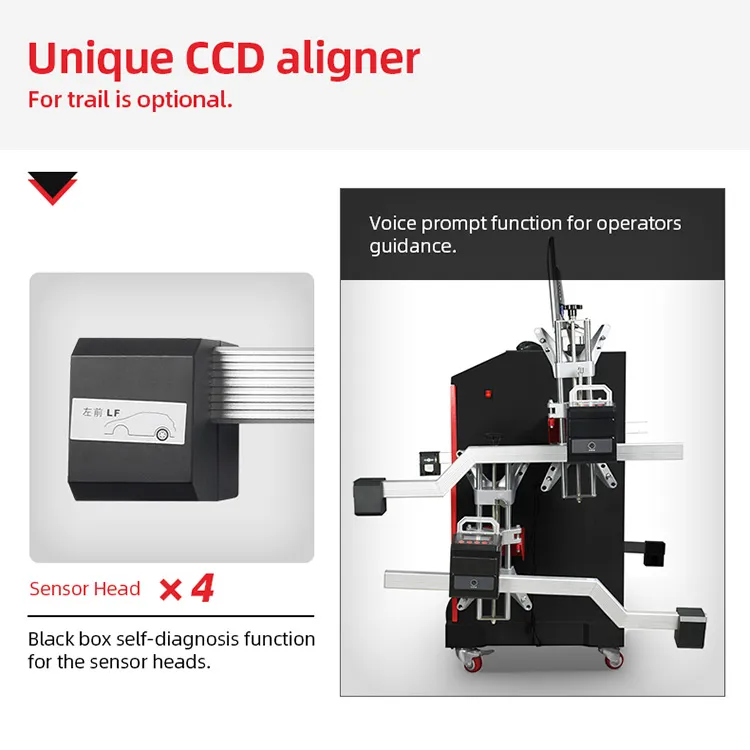

Multi-function Black Box
The black box of the sensor head not only has a self-diagnosis function but also has its own voice prompt function to provide guidance for the operator.

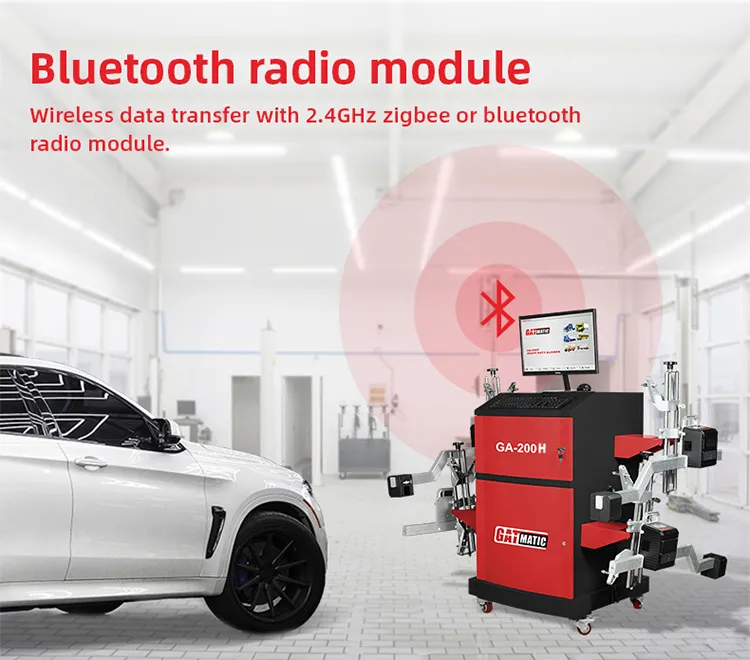

Bluetooth Radio Module
Data transfers wireless with 2.4GHz ZigBee or Bluetooth.
Optional Both For Trucks &Passenger Cars
GA-200H is suitable for trucks and passenger cars and supports vehicle specifications with more than 25,000 models.

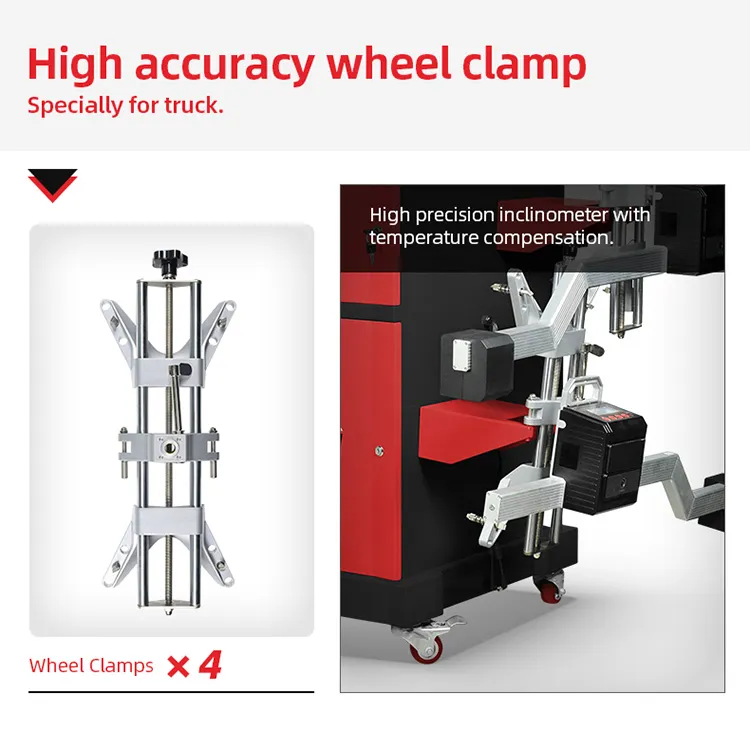

Strong Wheel Clamps
The high-precision inclinometer with temperature compensation is installed on the wheel of the car through the fixture. By turning the wheel at an angle, vehicle wheel positioning data is obtained.

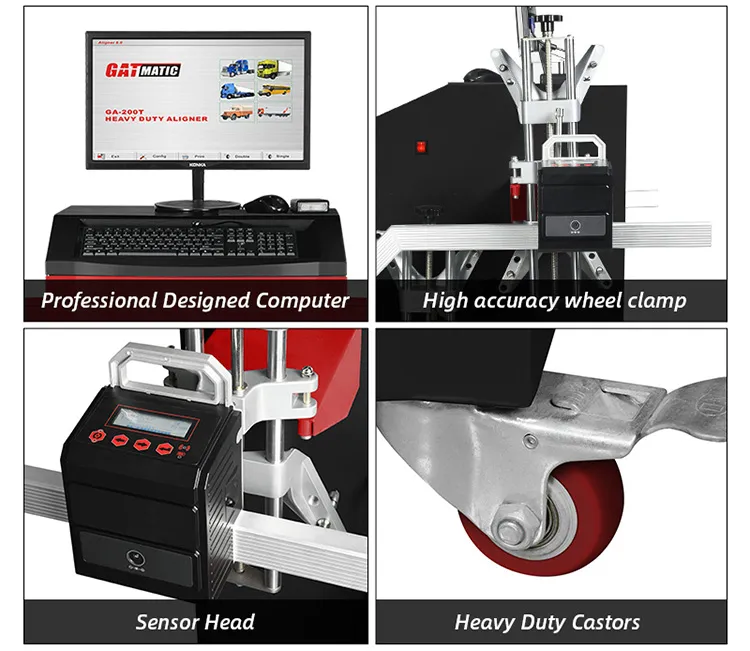

Easily Operating Computer & Heavy-duty Casters
Equipped with an easy-to-operate computer with Windows OS. And the whole wheel alignment machine can be moved due to its heavy-duty casters.
Software Interface
The software is easy to operate, reading basic four-wheel alignment data within a few minutes.
Multi-language & Windows OS
The software can be set in multiple languages, such as English, Spanish, Russian, German, Arabic, Thai, and Portuguese. It is convenient for technicians to use in most countries. And the wheel alignment machine supports Windows XP/7/ 8/ 10.
Advantages
- Interchangeable sensor heads
- 8 high precision sensors
- 10"-24" solid & precision clamp
- Multiple languages optional.
- Professional software with a user-friendly interface with instructions and step-by-step guidance
- Large&complete alignment database
- CCD heavy duty wheel aligner both for truck and passenger cars optional
Specifications
ITEM
PRECISION
RANGE
Bridge Parallelism
±10º
±0.02º
Total Toe
±20º
±0.04º
Camber
±10º
±0.02º
Caster
±20º
±0.04º
Dip Angle
±20º
±0.04º
Set-Back
±2º
±0.04º
Thrust Angle
±2º
±0.02º
Include Angle
±30º
±0.02º
Track Width Diff. (Angle)
±2º
±0.02º
Wheelbase Diff. (Angle)
±2º
±0.02º

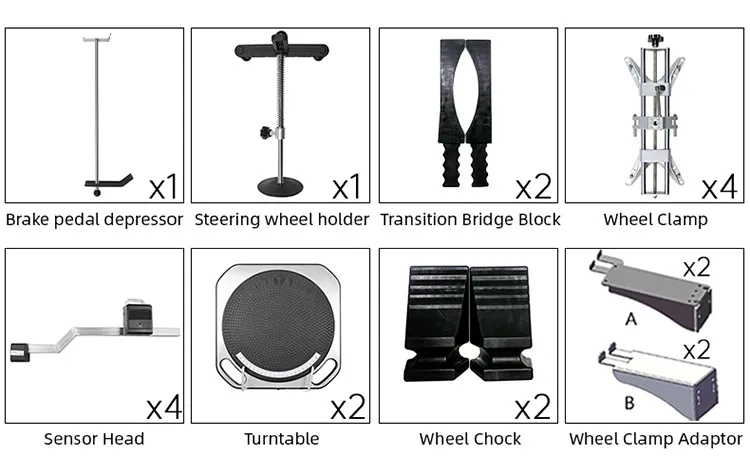

CCD Truck Alignment Machine Accessories
Turntable
Wheel Clamp
Wheel Chock
Sensor Head
2
4
2
4
Wheel Clamp Adaptor
Brake Pedal Depressor
Steering Wheel Holder
Transition Bridge Block
4
1
1
2
Our Factory
GATmatic was founded in 2013. Our factory covers over 9,000 square meters, including an R&D center, multiple production lines, a quality inspection center, and a modern warehouse. Thanks to our factory’s advanced manufacturing equipment, such as the latest digital control cutting machines, CNC punches, bending machines, and automatic welding machines, we have a strong production capacity.
Package
To avoid irresistible damage during transportation, GATmatic offers excellent packaging methods. In addition, it is also very convenient to load and unload with pallets.
Material: Heavy-duty wooden crate with reinforced corners and waterproof plastic wrapping.
Inner Protection: Insert High-density foam to protect fragile components.
Package Information: Product name, weight (kg), dimensions (L×W×H), and serial number.
Transport method: Choose the better transportation way according to situation: Air freight (for urgent orders) or sea freight (full-container load recommended).
