Description

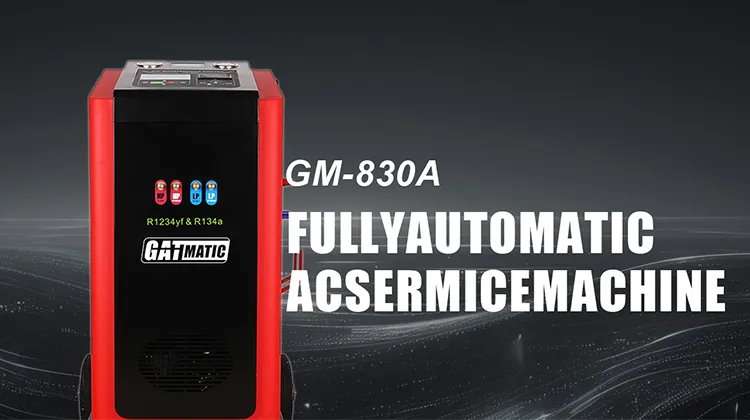

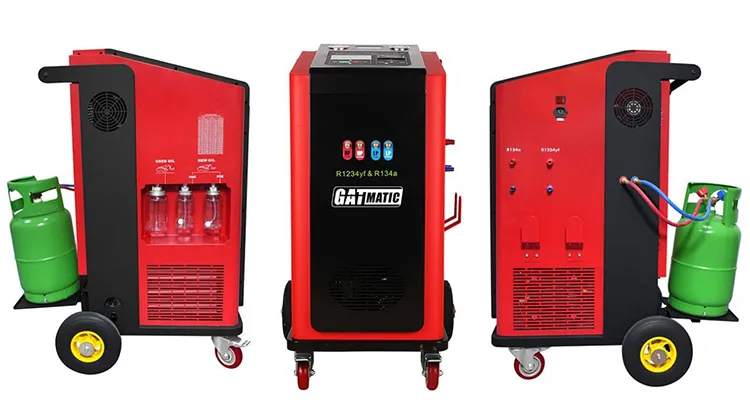

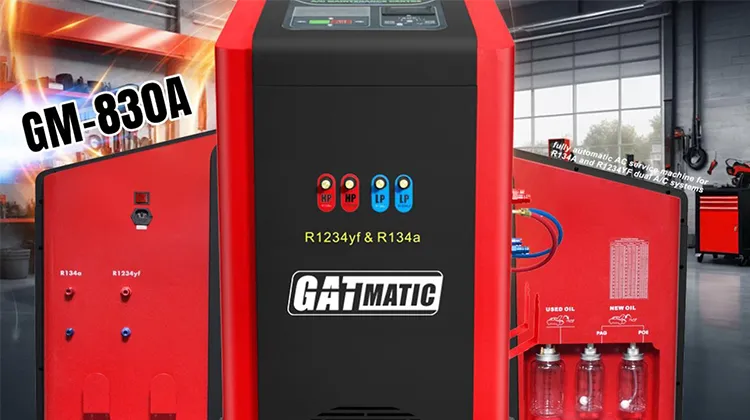

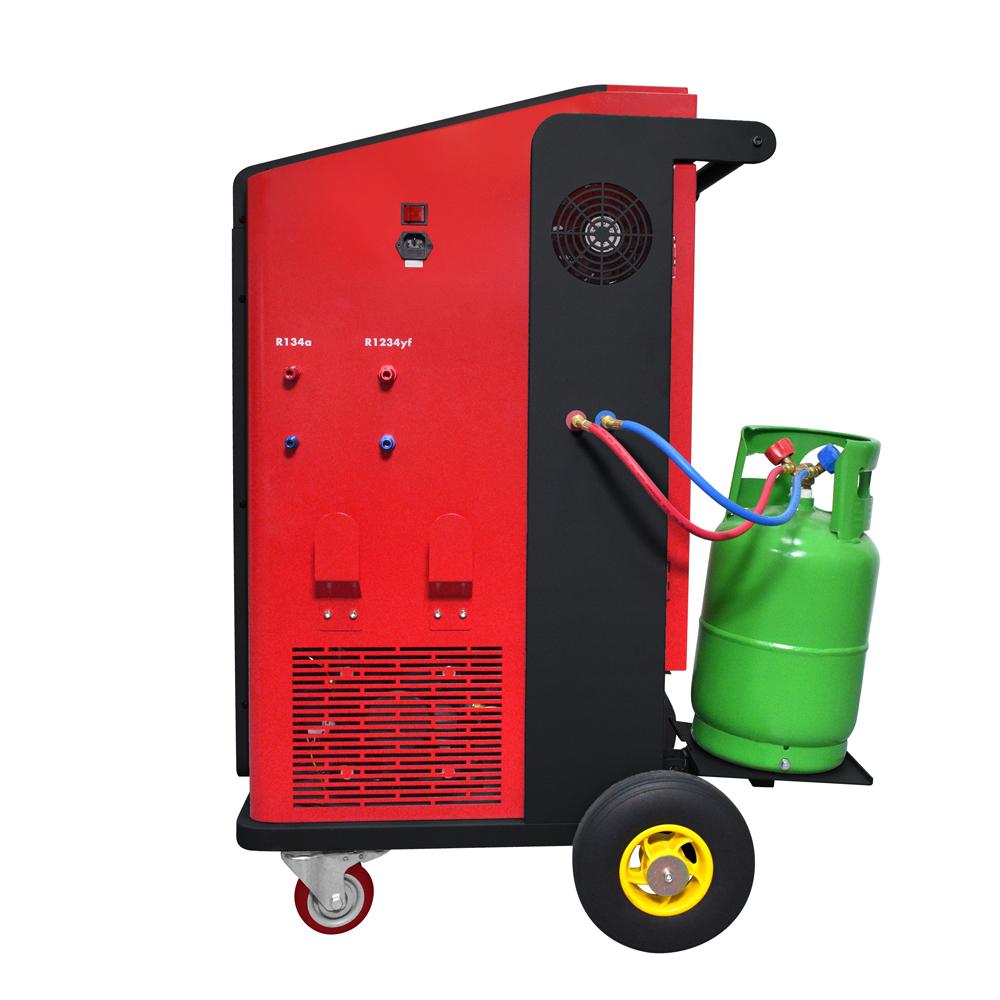

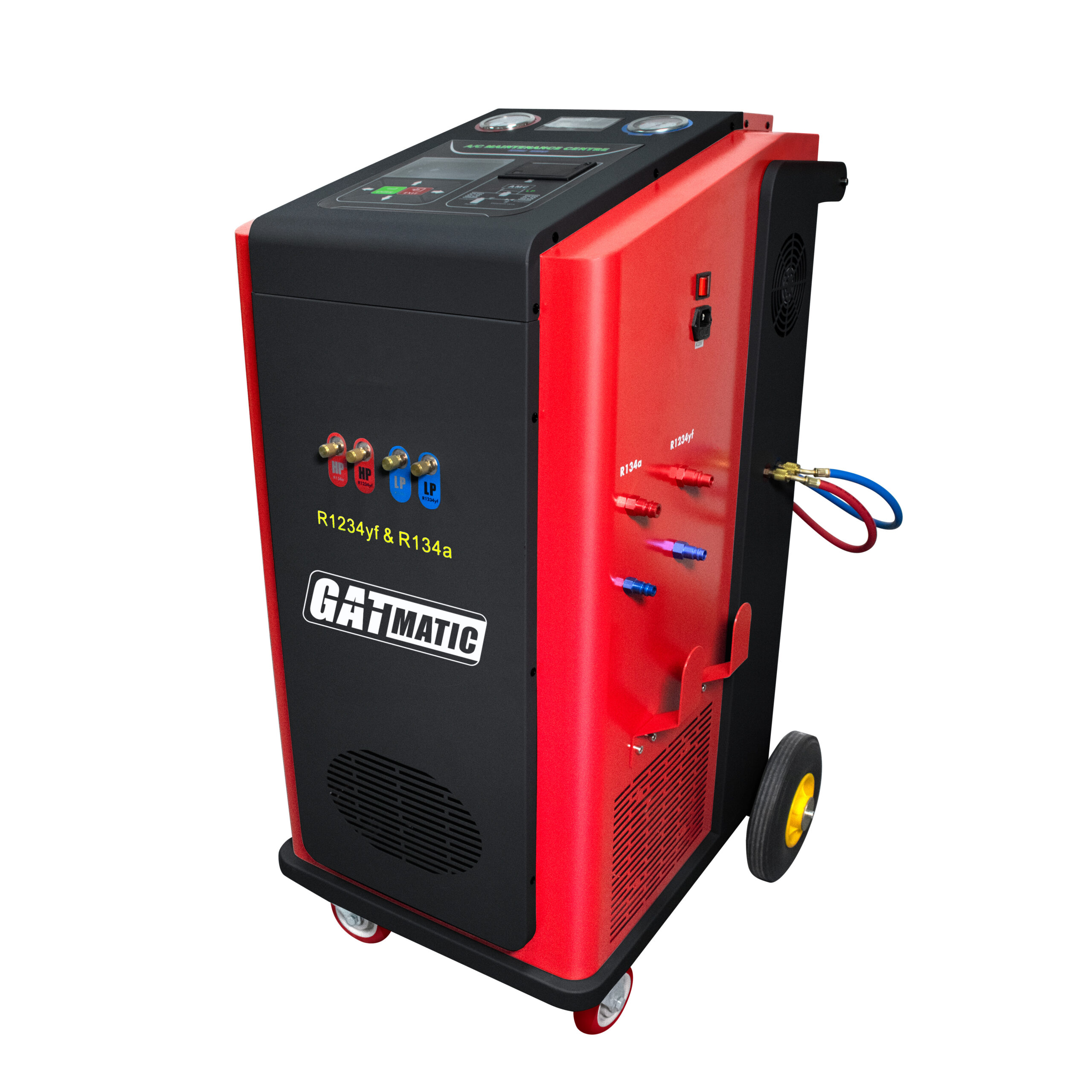

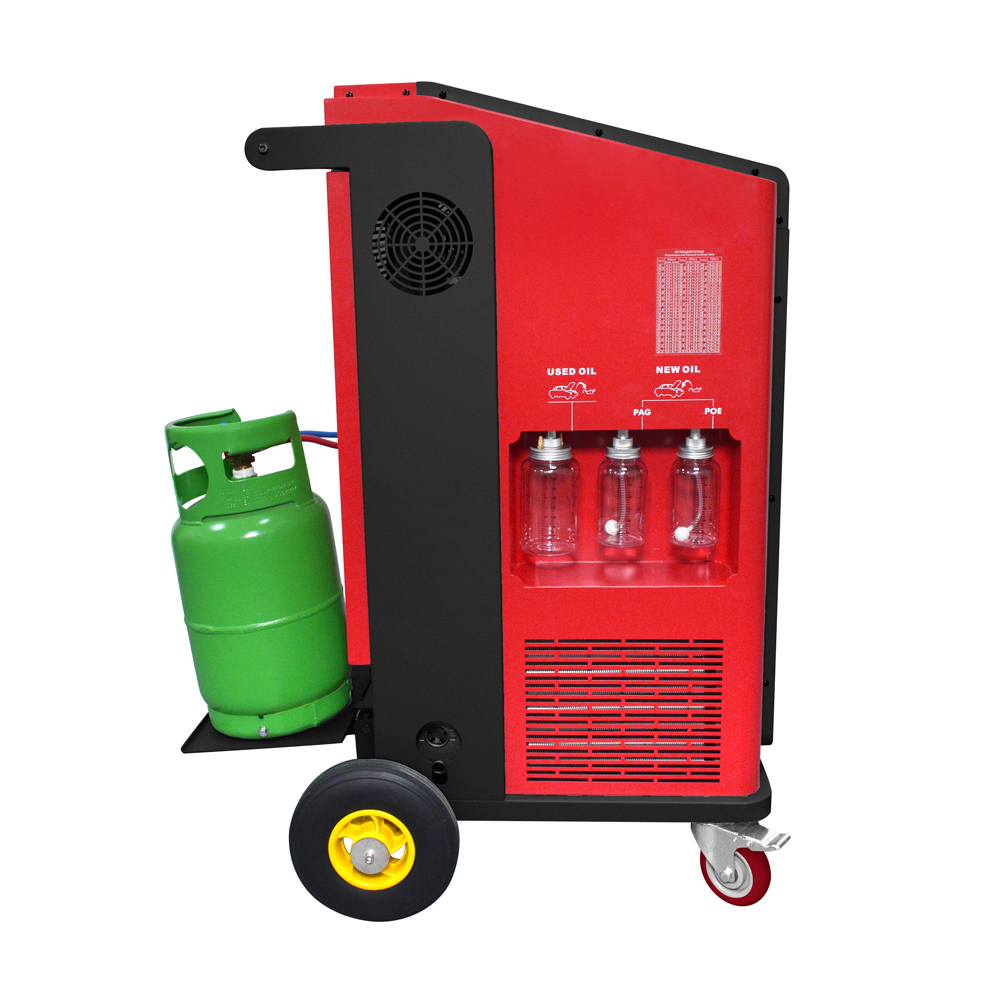

GM-830A is a dual system A/C service machine which can fully automatically recover, recharge
and recycle for R134A and R1234YF. It is controlled entirely by solenoid valves with self-diagnosis
and protection technology, stable and easy to operate.
Functions
Pulse Flushing To Exchange Refrigerant Oil
Fully Automatic Recovering/Recycling(R134a,R1234yf)

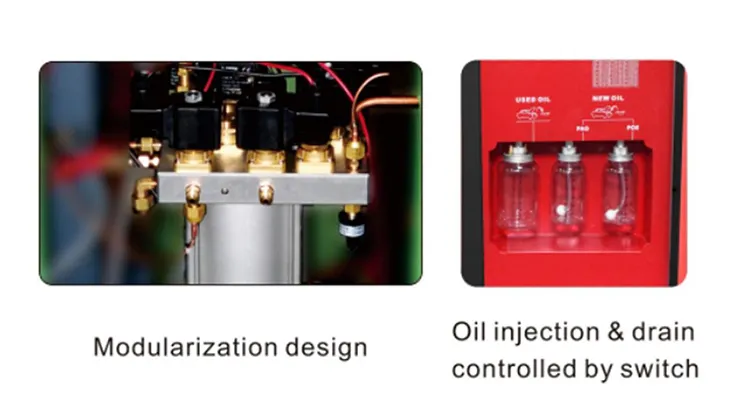

Automatic/Manual Used Oil To Drain
Timing Vacuum
Automatic/Manual New Oil Injection(PAG, POE)
Quantitative Recharging(R134a,R1234yf)
Database For Refrigerant & Oil
Print (Service time, Materials, etc.)
Refrigerant Transfer
Equipment Self-diagnosis & Self-protection
Maintenance Procedures(Cleaning, Emptying, etc.)
Specification
Refrigerant |
R134A, R1234YF (dual system) |
Voltage |
AC220V/50Hz~60Hz AC110V-60Hz |
Current |
8/12A |
Compressor |
12.12cc |
Vacuum Pump |
4 5CFM, 3Pa |
New Oil Bottle |
300ml, 2PCS(PAG, POE) |
Used Oil Bottle |
500ml |
Tank Capacity |
12L, 2PCS(R134a,R1234yf) |
Load Cell Precision |
30kg士10g,2PCS(R134a,R1234yf) |
Load Cell Precision
(Oil Bottle) |
6kg士5g |

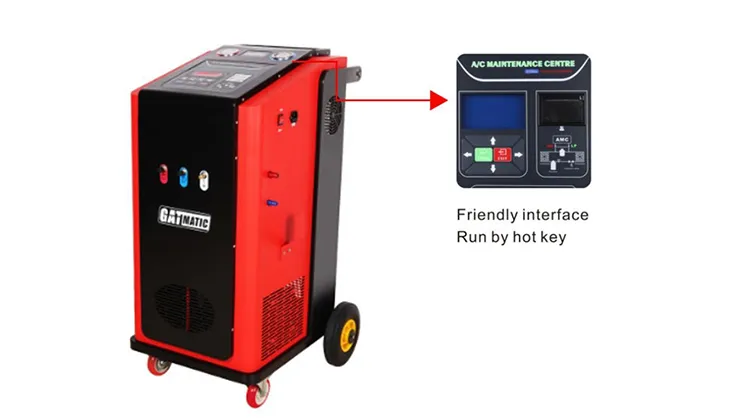

LCD Display |
240*128mm |
Work Max. Pressure |
20bar |
Size(LxWxH) |
670x730x 1445mm |
Gross Weight |
128kg |
