Description

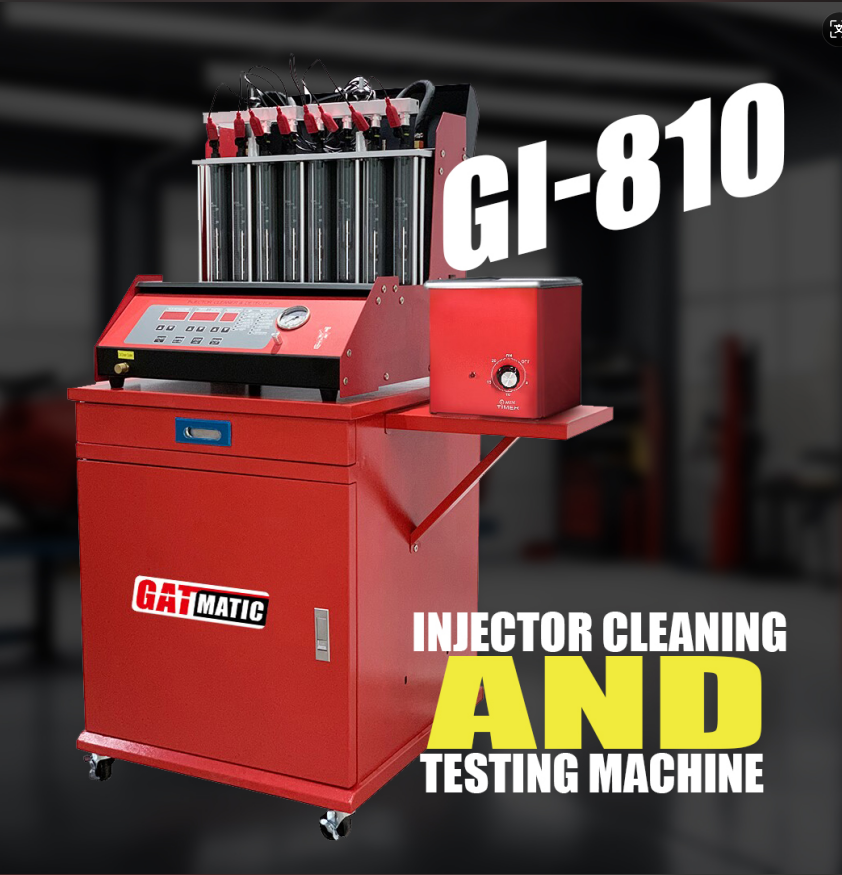

GI-810 fuel injector cleaner machine can be used both for cleaning and testing injectors. Perfectly suited for removing carbon from your fuel system, testing leaking, spray ability, and testing fuel injectors in different situations. Built-in ultrasonic mechanism, GI-810 car injector cleaner machine works by sending an ultrasonic vibration signal to the injector nozzle through the pulse signal line, which makes the stubborn carbon deposit jitter strong and removes it more thoroughly. 8 cylinders can be tested and cleaned at one time. Support reverse cleaning & on-vehicle cleaning.

Features

Comprehensive Testing Capabilities

The car injector cleaner equipped with 100W ultrasonic cleaning power and a 4000ml large-capacity fuel tank, can completely remove carbon deposits, colloids and other sediments inside the injector. The ultrasonic wave with the high-frequency vibration can penetrate into the tiny pores to finish dead-angle cleaning, significantly improving the atomization effect and fuel efficiency of the injector.

Advanced Ultrasonic Cleaning

Equipped with a 100W ultrasonic cleaner and a 4000 ml fuel tank, the fuel injector tester and cleaner delivers deep, efficient cleaning to remove stubborn deposits and carbon buildup. The ultrasonic technology ensures thorough cleaning without damaging delicate injector components.

High-precision Resistance & Real-Time Control

The injector cleaner machine can quickly detect the resistance value of the injector coil to determine the real situation: short circuit, open circuit or aging problems, ensuring that the circuit system works normally, and avoiding injection failures caused by abnormal resistance. And this injector cleaner supports 0~15000rpm(step: 10rpm) RPM range, 0~20ms(step: 0.1ms) pulse width, and 0~9900s Real-time adjustments(step: 50s), which can enable dynamic testing and optimization for different injector types and conditions.

Automation & User-Friendly Operation

This fuel injector cleaner machine is characterized with Automatic Mode Test and Auto Drain function. The GI-810 car injector cleaning machine streamlines workflows, which can significantly reduce manual intervention. It is compatible with AC 220V/50Hz power supplies and a robust 1.8 - 10 bar work pressure range further enhancing adaptability across workshops and garages.

8-cylinder & Electronic Drain

To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely, there are eight measuring glass tubes that are transparent and have a clear scale on them. The fuel injector tester and cleaner is also featured with Electronic Drain (or Auto Drain). After completing ultrasonic cleaning, testing, or maintenance procedures, this injector cleaner enables automated drainage of the fuel tank (4000 ml capacity), which eliminates manual intervention, improves operational efficiency, and ensures safe disposal of residual fluids.

Specifications

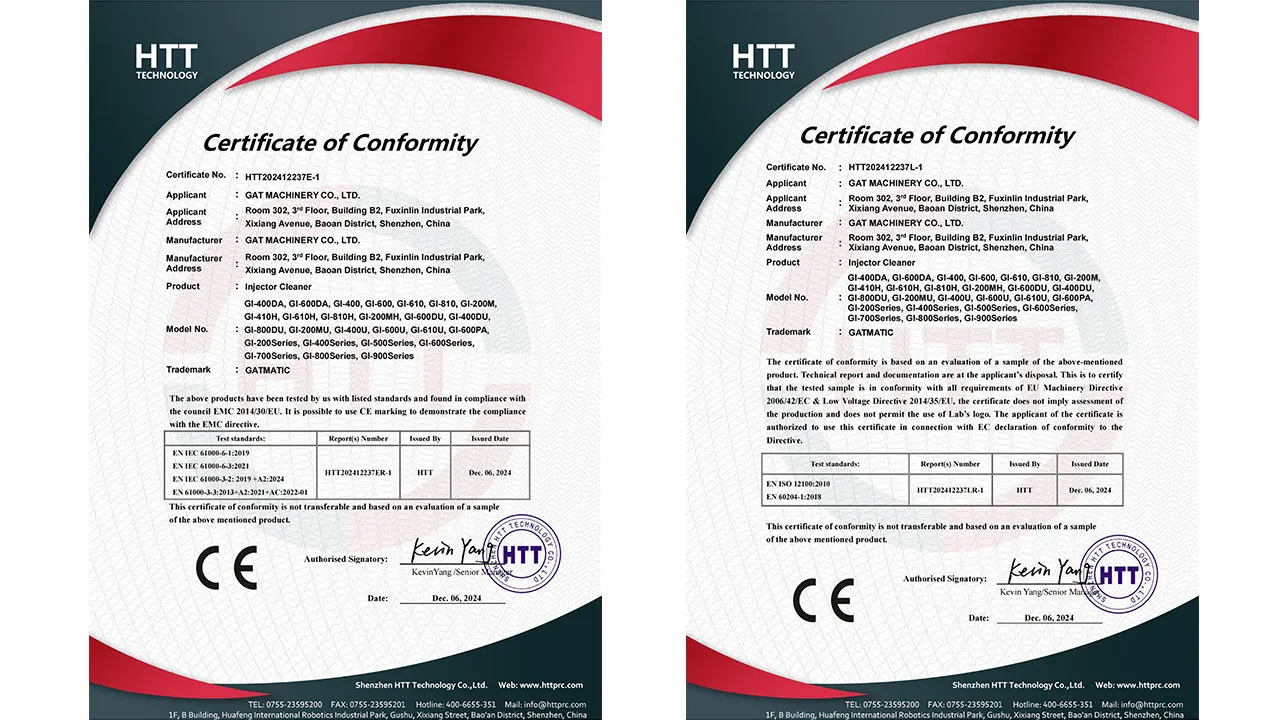

Certificates
