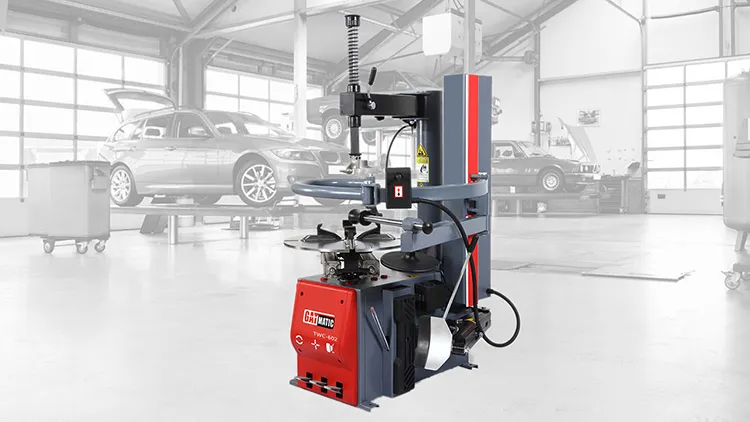

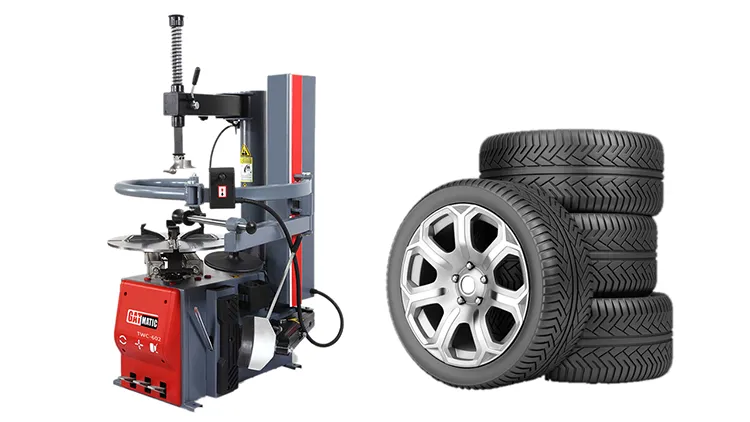

The GATmatic TWC602 Semi-Automatic Tire Changer is a versatile and durable tire changing machine designed for automotive shops. Supporting rim sizes from 10" to 24", it features a strong pneumatic bead breaker and a steel mounting head for efficient and safe tire removal. Equipped with ergonomic foot pedals and optional ATV/motorcycle adapters, the TWC602 offers flexibility and ease of use. Its compact design and electric power options make it ideal for various shop environments. Perfect for professionals seeking reliable and efficient tire changing equipment.
Features
Semi-Automatic Operation
Designed for efficiency, the semi-automatic system simplifies tire changing while maintaining precision and control.
Strong Pneumatic Bead Breaker
The bead breaker bracket adopts a one-piece thickened integrated design, which has a greater compression strength to ensure that it will not be broken or deformed. The opening and closing angle of the bead breaker bracket has also been widened.
Durable Aluminum Alloy Foot Pedals
Crafted from high-quality aluminum alloy, the foot pedals offer enhanced durability and a full range of functions. Their ergonomic design including the swing arm and assist arm, ensures faster, safer, and more comfortable operation.
Swing Arm & Assistant Arm
The heavy-duty swing arm and assistant arm provide extra leverage and support during tire mounting and demounting, reducing operator effort and minimizing the risk of tire or wheel damage.
Heavy-Duty Steel Mounting/Demounting Head
The upgraded steel mount/demount head provides extended service life and smooth tire mounting and demounting, minimizing the risk of wheel damage.
Optional ATV & Motorcycle Adapter
Expand your service capabilities with the optional adapter, designed to handle ATV and motorcycle tires effortlessly.
Specifications
Model
TWC602
Rim Diameter
10" - 24"
Rim Width
3" - 16"
Max Wheel Diameter
960mm
Power Supply
110V/220V1PH, 220V/380V3PH
Motor Power
0.75 - 1.1 Kw
Bead-Remove Cylinder
2500Kg
Operating Pressure
0.8 - 1MPa
Packing
1160*980*980mm
Net Weight
280Kg
Our Factory
GATmatic was founded in 2013. Our factory covers over 9,000 square meters, including an R&D center, multiple production lines, a quality inspection center, and a modern warehouse. Thanks to our factory’s advanced manufacturing equipment, such as the latest digital control cutting machines, CNC punches, bending machines, and automatic welding machines, we have a strong production capacity.
Package
To avoid irresistible damage during transportation, GATmatic offers excellent packaging methods. In addition, it is also very convenient to load and unload with pallets.
Material: Heavy-duty wooden crate with reinforced corners and waterproof plastic wrapping.
Inner Protection: Insert High-density foam to protect fragile components.
Package Information: Product name, weight (kg), dimensions (L×W×H), and serial number.
Transport method: Choose the better transportation way according to situation: Air freight (for urgent orders) or sea freight (full-container load recommended).
