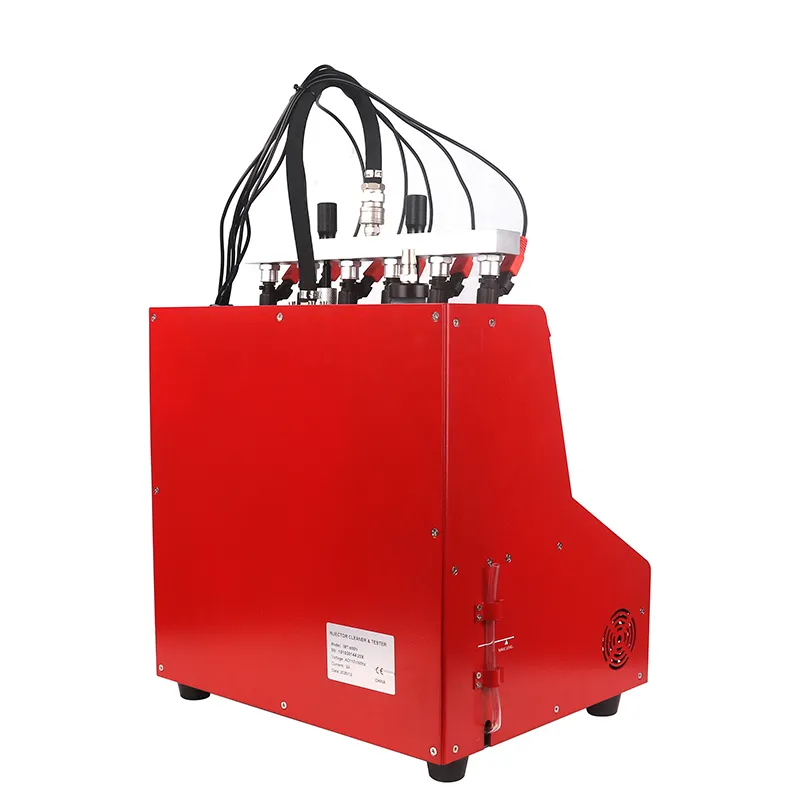

The GI-600 fuel injector ultrasonic cleaner is a high-performance device that integrates cleaning and testing, designed for precision cleaning, testing, and maintenance of fuel injectors. The injector cleaner machine uses advanced ultrasonic cleaning technology, combined with customizable settings, to comprehensively evaluate the performance of the injector, ensuring its cleanliness and working condition at the best level.
Features
Comprehensive Testing Capabilities

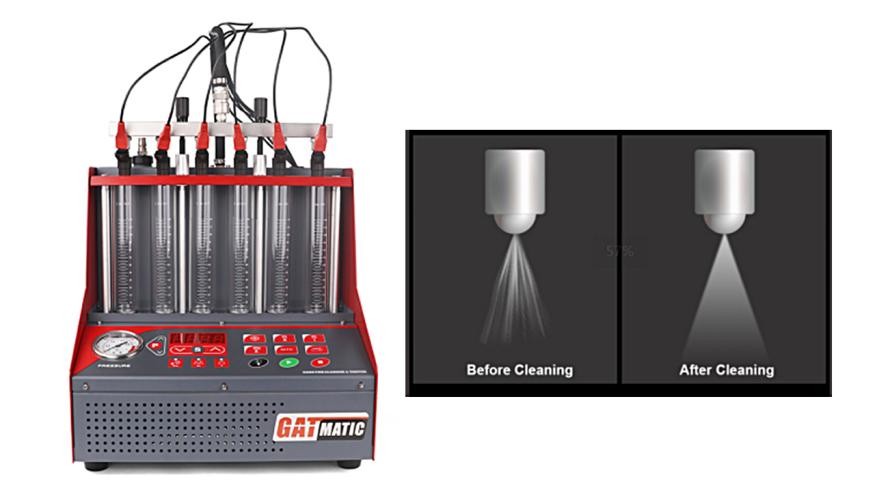

The car injector cleaner, equipped with 100W ultrasonic cleaning power and a 4000ml large-capacity fuel tank, can completely remove carbon deposits, colloids and other sediments inside the injector. The ultrasonic wave with the high-frequency vibration can penetrate into the tiny pores to finish dead-angle cleaning, significantly improving the atomization effect and fuel efficiency of the injector.

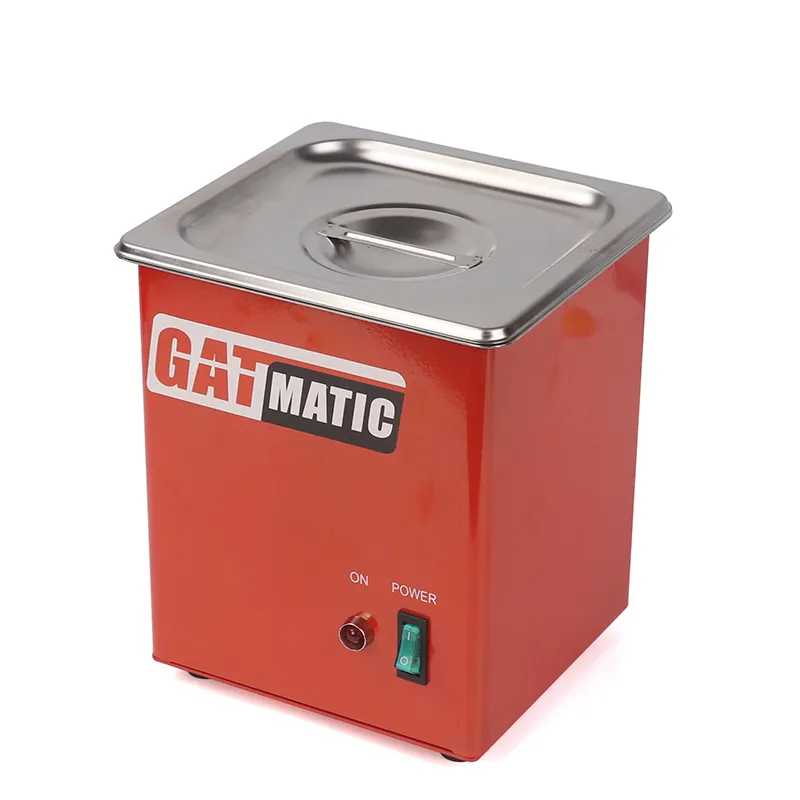

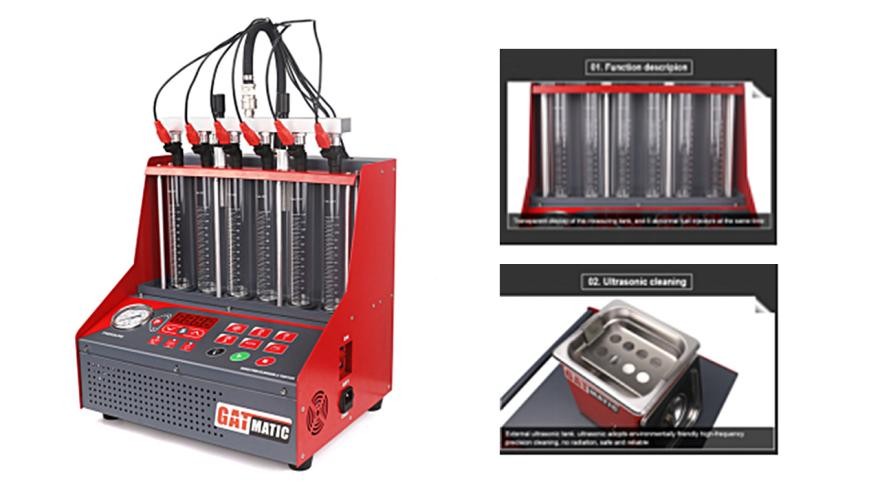

Advanced Ultrasonic Cleaning
Equipped with a 100W ultrasonic cleaner and a 4000 ml fuel tank, the fuel injector tester and cleaner delivers deep, efficient cleaning to remove stubborn deposits and carbon buildup. The ultrasonic technology ensures thorough cleaning without damaging delicate injector components.
High-precision Resistance & Real-Time Control
The injector cleaner machine can quickly detect the resistance value of the injector coil to determine the real situation: short circuit, open circuit or aging problems, ensuring that the circuit system works normally, and avoid injection failures caused by abnormal resistance. And this injector cleaner supports 110~9900rpm(step: 10rpm) RPM range, 0.5~25ms(step: 0.1ms) pulse width and 60~5400s Real-time adjustments(step:60s), which can enable dynamic testing and optimization for different injector types and conditions.

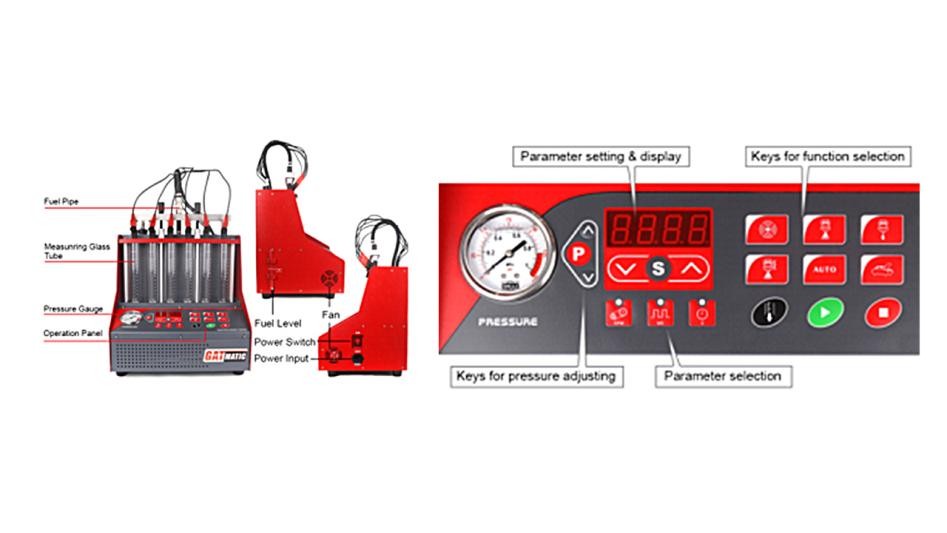

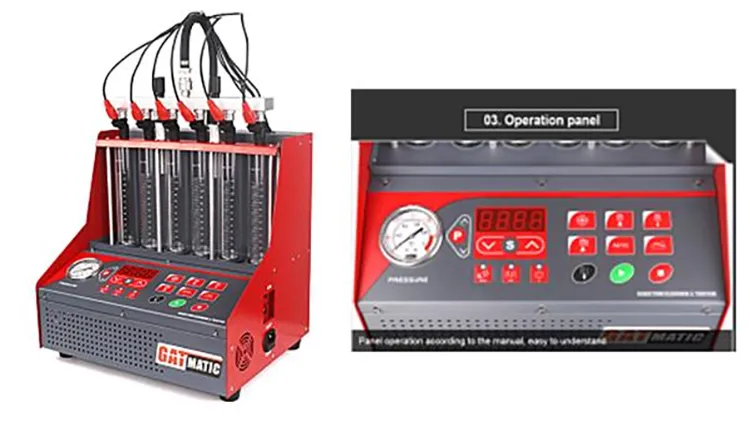

Automation & User-Friendly Operation
This car injector cleaner machine is characterized with Automatic Mode Test and Auto Drain function. The GI-600 streamlines workflows, which can significantly reduce manual intervention. It is compatible with AC 110V/220V power supplies and a robust 0 - 7 bar work pressure range, further enhancing adaptability across workshops and garages.
Electronic Drain
The fuel injector tester and cleaner is also featured with Electronic Drain (or Auto Drain). After completing ultrasonic cleaning, testing, or maintenance procedures, this injector cleaner enables automated drainage of the fuel tank (4000 ml capacity), which eliminates manual intervention, improves operational efficiency, and ensures safe disposal of residual fluids.
Specifications
Main unit power supply
AC220V±10% 50Hz/60Hz or AC110V±10% 60Hz
Input power
230W
Ultrasonic cleaner power
100W
Simulated RPM range
100~9900rpm, step: 10rpm
Time range
60~5400s, step: 60s
Pulse width
0.5~25ms, step: 0.1ms
Fuel tank capacity
4000 ml
Work pressure
0-7 bar

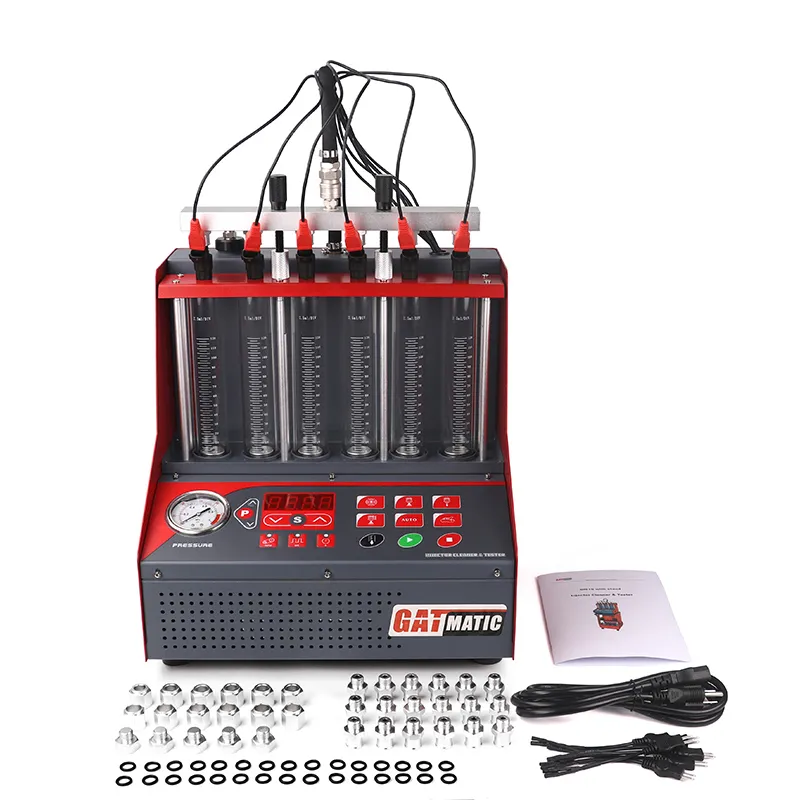

Injector Cleaner Machine Accessories
Our Factory
GATmatic was founded in 2013. Our factory covers over 9,000 square meters, including an R&D center, multiple production lines, a quality inspection center, and a modern warehouse. Thanks to our factory’s advanced manufacturing equipment, such as the latest digital control cutting machines, CNC punches, bending machines, and automatic welding machines, we have a strong production capacity.
Package
To avoid irresistible damage during transportation, GATmatic offers excellent packaging methods. In addition, it is also very convenient to load and unload with pallets.
Material: Heavy-duty wooden crate with reinforced corners and waterproof plastic wrapping.
Inner Protection: Insert High-density foam to protect fragile components.
Package Information: Product name, weight (kg), dimensions (L×W×H), and serial number.
Transport method: Choose the better transportation way according to situation: Air freight (for urgent orders) or sea freight (full-container load recommended).
