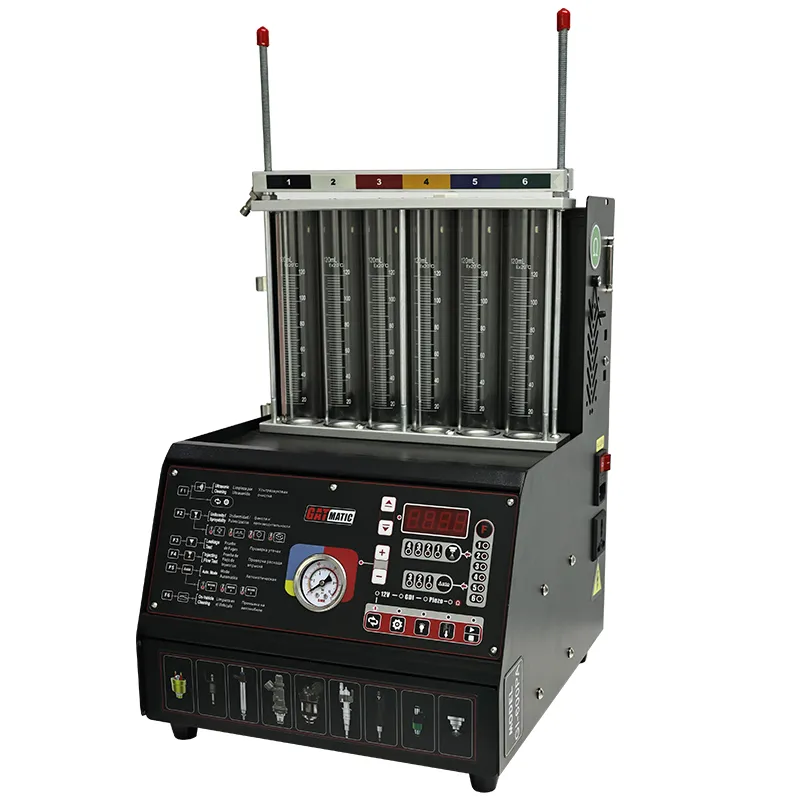

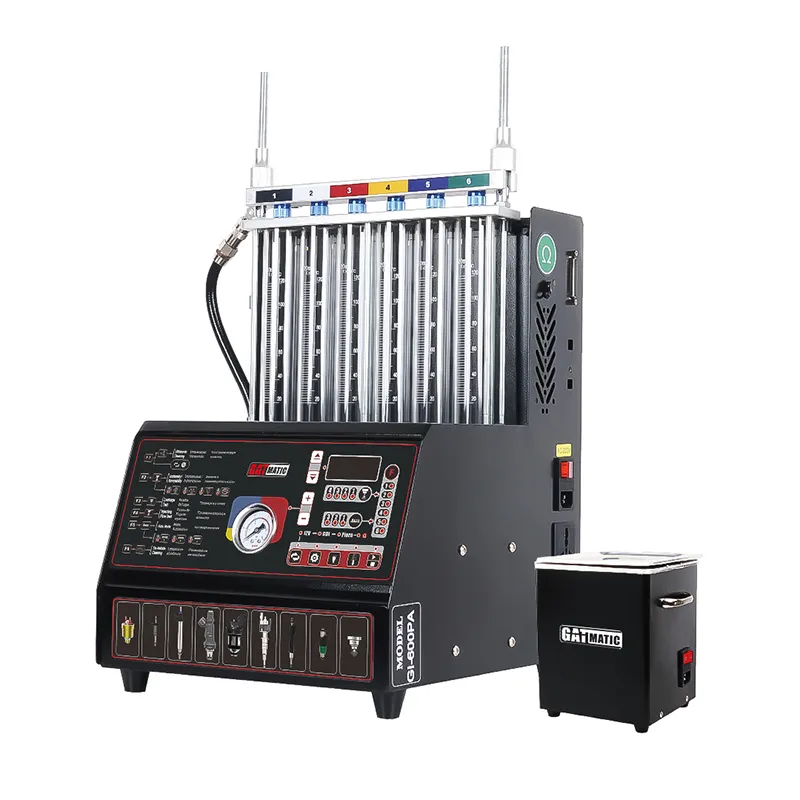

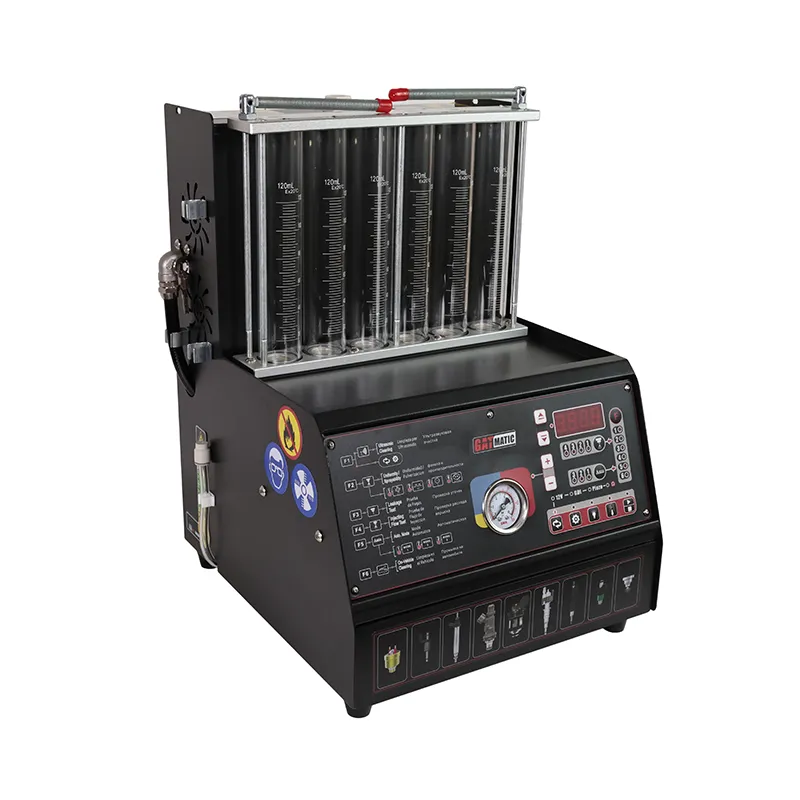

The GATmatic GI-600PA fuel injector ultrasonic cleaner is a high-performance device that integrates cleaning and testing, designed for the maintenance and diagnosis of automotive injectors. It supports GDI, Piezo & Traditional Injectors. The injector cleaner machine uses advanced ultrasonic cleaning technology, combined with precise resistance testing and simulated working condition testing functions, to comprehensively evaluate the performance of the injector, ensuring its cleanliness and working condition at the best level.
Features
High-efficiency Ultrasonic Cleaning Technology
The car injector cleaner, equipped with 100W ultrasonic cleaning power and a 2000ml large-capacity fuel tank, can completely remove carbon deposits, colloids and other sediments inside the injector. The ultrasonic wave with high-frequency vibration can penetrate into the tiny pores to finish dead-angle cleaning, significantly improving the atomization effect and fuel efficiency of the injector.
High-precision Resistance & Wide-range Simulated Test
With 0.1ΩResistance test accuracy, the injector cleaner machine can quickly detect the resistance value of the injector coil to determine the real situation: short circuit, open circuit, or aging problems, ensuring that the circuit system works normally, and avoiding injection failures caused by abnormal resistance. And this injector cleaner supports 110~9900rpm(step: 10rpm) RPM range and 0.1~25ms(step: 0.1ms) pulse width, which can accurately simulate the injector working state under different working conditions of the engine.
Flexible Pressure and Time Control
The fuel injector tester and cleaner provides a working pressure of 0-7 bar adjustment range to meet the testing needs of various injectors(such as Piezo, GDI, EFI, SFI). And by setting the time from 5~300 seconds (step: 5 seconds), users can flexibly adjust the cleaning or test time according to actual needs to improve operating efficiency.
Safe and Reliable Multi-power Compatible Design
The fuel injector ultrasonic cleaner supports two voltage inputs: AC220V±10% 50Hz/60Hz or AC110V±10% 60Hz, and adapts to the electricity standards of different regions. And the injector cleaner in this model is equipped with 230W stable power output, ensuring that the equipment remains stable and safe during long-term work.
With Storage Drawer in Special Design
This car injector cleaner machine is equipped with a special design storage drawer, which is suitable for automobile repair shops, 4S shops, professional fuel system maintenance institutions, etc. Its multifunctional integrated design not only saves working time but also significantly improves maintenance accuracy, extends the injector’s service life, and brings higher economic benefits to customers.
Specifications
Main unit power supply
AC220V±10% 50Hz/60Hz or AC110V±10% 60Hz
Input power
230W
Ultrasonic cleaner power
100W
Resistance test accuracy
0.1Ω
Simulated RPM range
110~9900rpm, step: 10rpm
Time range
5~300s, step: 5s
Pulse width
0.1~25ms, step: 0.1ms
Fuel tank capacity
2000 ml
Work pressure
0-7 bar
Certificates
Injector Cleaner Machine Accessories

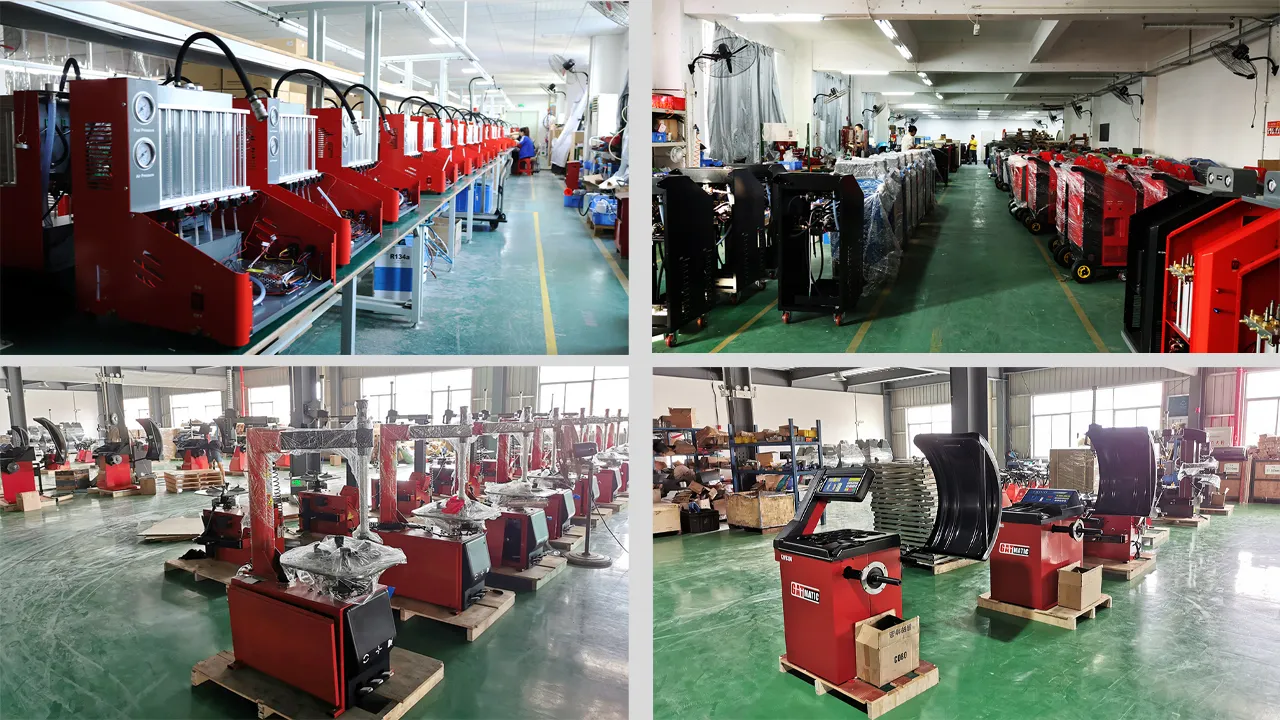

Our Factory
GATmatic was founded in 2013. Our factory covers over 9,000 square meters, including an R&D center, multiple production lines, a quality inspection center, and a modern warehouse. Thanks to our factory’s advanced manufacturing equipment, such as the latest digital control cutting machines, CNC punches, bending machines, and automatic welding machines, we have a strong production capacity.
Package
To avoid irresistible damage during transportation, GATmatic offers excellent packaging methods. In addition, it is also very convenient to load and unload with pallets.
Material: Heavy-duty wooden crate with reinforced corners and waterproof plastic wrapping.
Inner Protection: Insert High-density foam to protect fragile components.
Package Information: Product name, weight (kg), dimensions (L×W×H), and serial number.
Transport method: Choose the better transportation way according to situation: Air freight (for urgent orders) or sea freight (full-container load recommended).
