– Easily observe new oil and used oil – Cycle cleaning & Exchange function – Professional design of filling port – Replace the oil with equal amount – Adjustable flow rate of used oil – Regulative flow rate of new oil – Drain oil manually

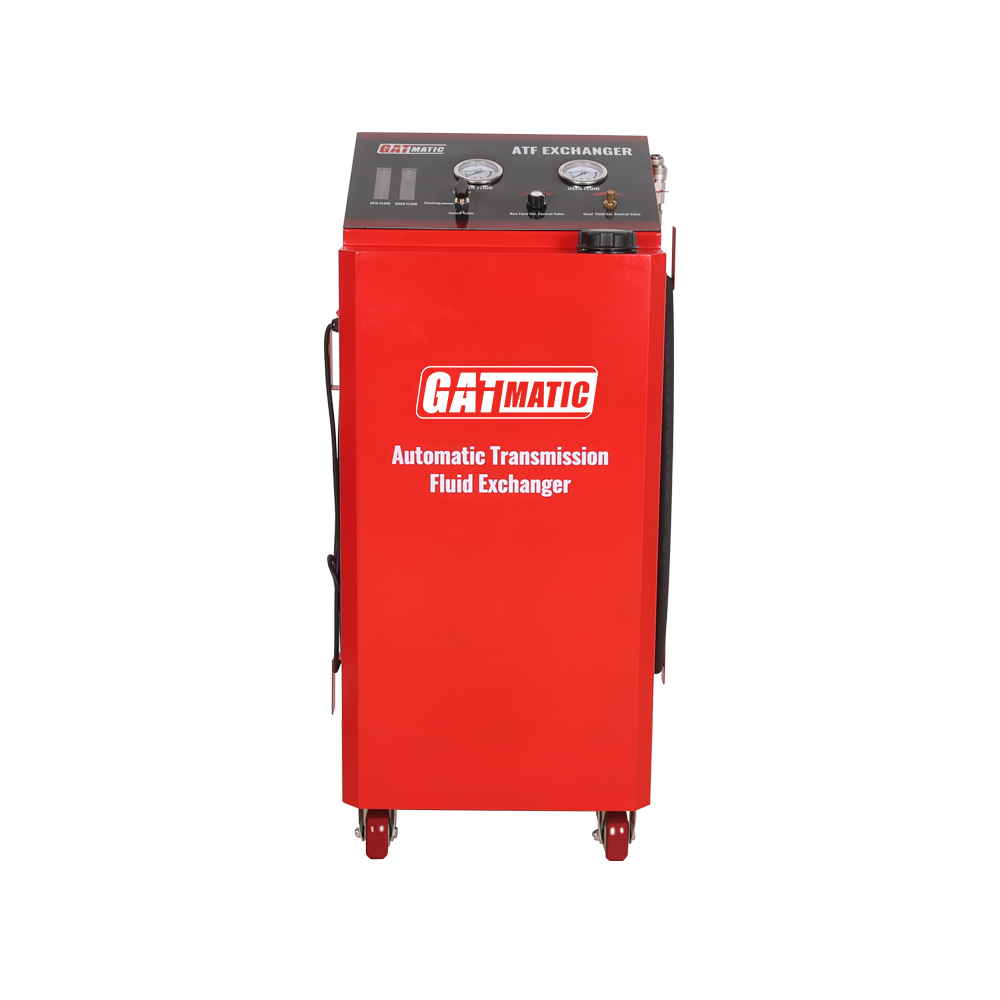

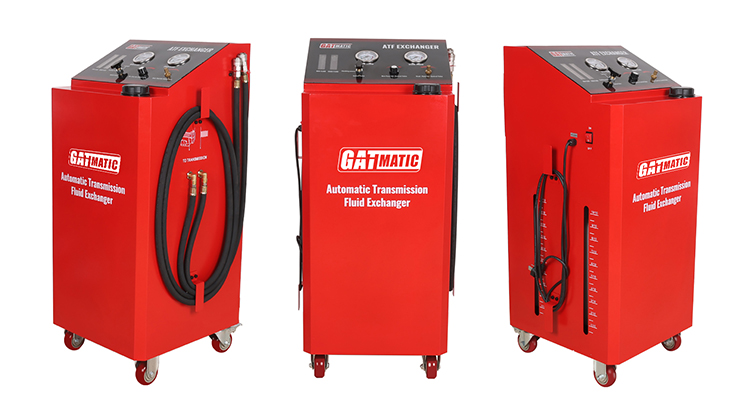

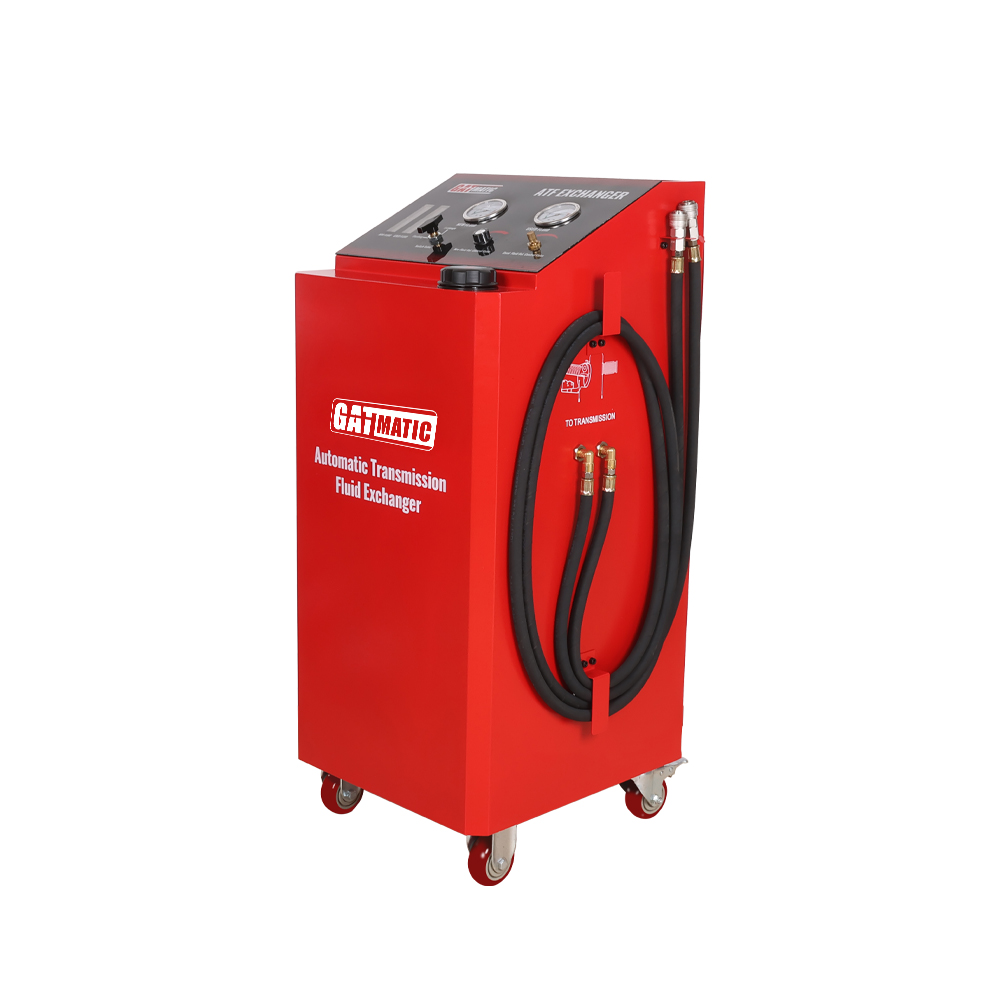

GATmatic’s GT-416 automatic transmission fluid exchange machine, as a high-performance, user-friendly machine, is designed for efficient and precise transmission fluid maintenance. With the 20L dual-tank system and advanced features like equal-amount exchange (±0.1L accuracy) and 5μm filtration, this transmission fluid exchanger ensures optimal fluid replacement while protecting transmission systems. This ATF exchanger machine can adjust flow rate of used oil and regulate the flow rate of new oil, enhancing service quality and equipment longevity.
Features
Equal Amount Exchange (±0.1L Accuracy)
This automatic transmission fluid exchanger is equipped with high-precision electronic calibration, so that the system guarantees precise 1:1 transmission fluid exchange fluid, with an error margin of just ±0.1 liters. With the help of electronic scale calibration, this ATF exchanger prevents overfilling or underfilling, protecting transmission systems, and ensures faster, safer, and more reliable fluid exchanges.
High-Precision Filtration & Circulation
This semi- automatic transmission fluid exchanger is equipped with a 5μm oil filter, and it can effectively remove contaminants during flushing. The circulating flushing feature cleans residual debris, ensuring optimal transmission performance. This transmission fluid exchanger integrates advanced filtration and circulation technology to ensure a thorough and contaminant-free transmission fluid exchange.
Smart Flow Direction Detection
The automatic transmission fluid exchanger Automatically identifies fluid flow direction, reducing setup errors and streamlining the exchange process for faster, error-free operation. Unlike traditional machines that require manual hose configuration, this feature automatically detects the transmission’s inlet and outlet lines, ensuring correct flow alignment within seconds.
Multi-Functional Operation Mode

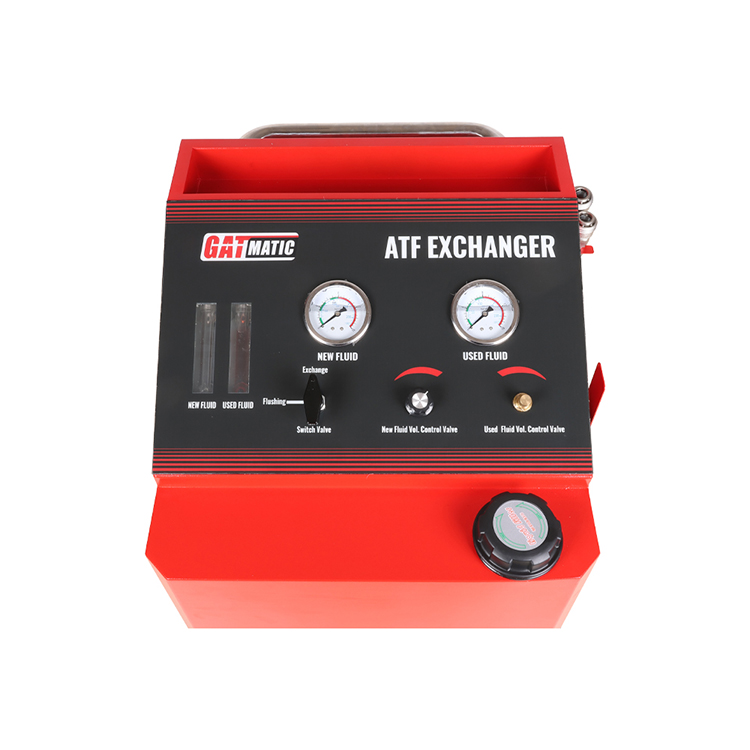

Beyond few Automatic Operation, this ATF exchanger supports manual fluid drain, new fluid addition, and old fluid recycling. With dual 20-liter tanks, the electronic scale calibration and 0-150psi pressure gauge, this transmission fluid exchanger enhance accuracy for diverse servicing needs.
High-Efficiency Filtration System
The transmission fluid exchange machine is equipped with an advanced 5-micron (5μm) ultra-fine oil filtration system, ensuring optimal fluid cleanliness and transmission protection. Unlike standard filters that allow larger contaminants to pass through, this transmission fluid exchanger with precision filter can capture microscopic particles, metal shavings, and sludge that can affect transmission performance.
Specifications
Voltage
DC12V/AC220V
Maximum Power
150W
Pressure Gauge
0~150psi
Oil filter Accuracy
5μm
Oil Oioe Pipe
2.5m
Oil Return Pipe
2.5m
Oil Tank
20L*2
Noise
<70db
Equal Exchange Error
±0.1 Liters
Net Weight
35kg
Certificates
Our Factory
GATmatic was founded in 2013. Our factory covers over 9,000 square meters, including an R&D center, multiple production lines, a quality inspection center, and a modern warehouse. Thanks to our factory’s advanced manufacturing equipment, such as the latest digital control cutting machines, CNC punches, bending machines, and automatic welding machines, we have a strong production capacity.
Package
To avoid irresistible damage during transportation, GATmatic offers excellent packaging methods. In addition, it is also very convenient to load and unload with pallets.
Material: Heavy-duty wooden crate with reinforced corners and waterproof plastic wrapping.
Inner Protection: Insert High-density foam to protect fragile components.
Package Information: Product name, weight (kg), dimensions (L×W×H), and serial number.
Transport method: Choose the better transportation way according to situation: Air freight (for urgent orders) or sea freight (full-container load recommended).
