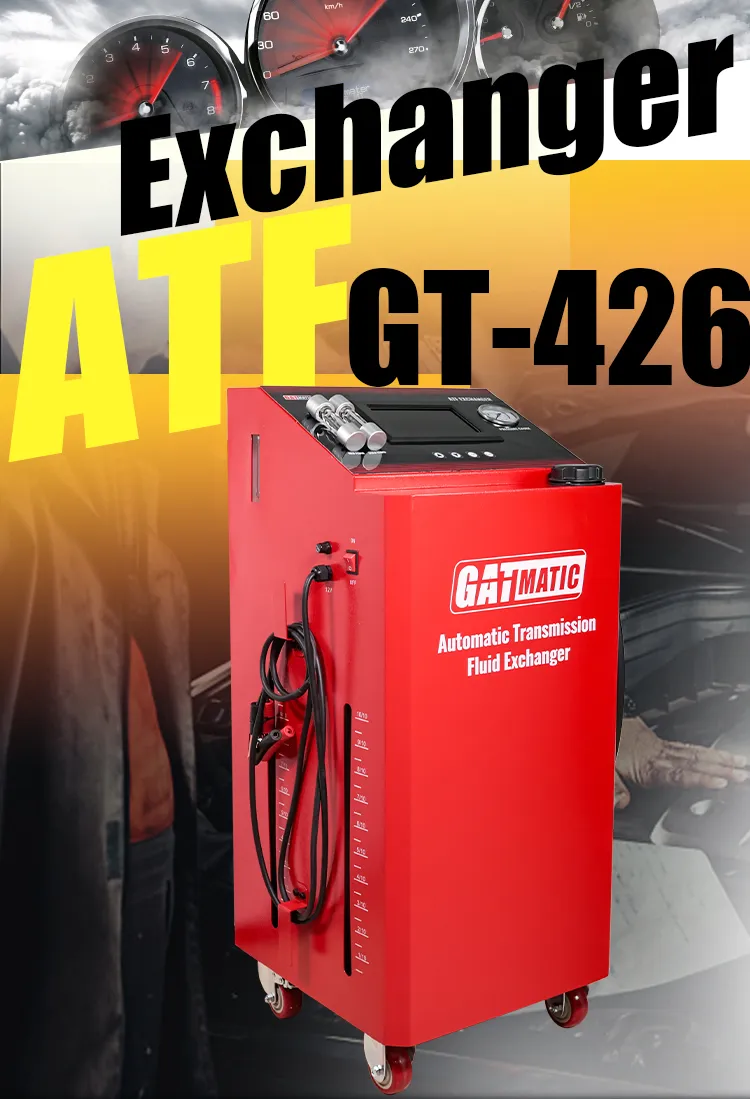

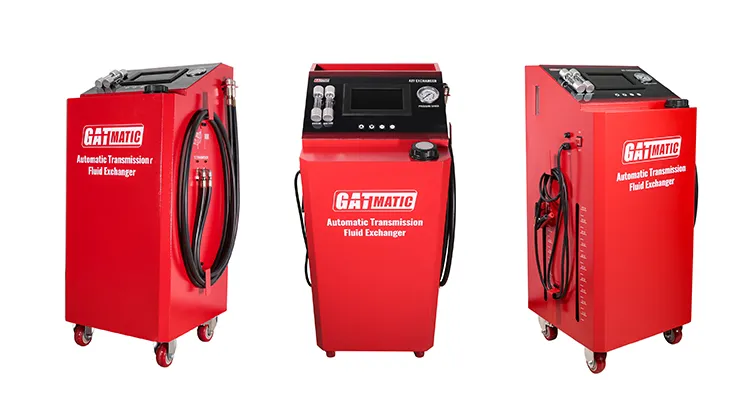

The GATmatic GT-426 automatic transmission fluid exchanger offers fully automatic identification of oil inlet and outlet directions, ensuring intelligent and precise oil exchange. This advanced transmission fluid exchange machine features high-precision electronic control for equal amounts of new and old oil exchange. It is equipped with a large touchscreen, radiator hydraulic gauge, and other essential tools, making the entire process completely automated and efficient.
Features
Equal Amount Exchange (±0.1L Accuracy)
This ATF exchanger is equipped with high-precision electronic calibration, so that the system guarantees precise 1:1 transmission fluid exchange fluid, with an error margin of just ±0.1 liters. With the help of electronic scale calibration, this ATF exchanger prevents overfilling or underfilling, protecting transmission systems, and ensures faster, safer, and more reliable fluid exchanges.
High-Precision Filtration & Circulation
This semi- automatic transmission fluid exchanger is equipped with a 5μm oil filter, and it can effectively remove contaminants during flushing. The circulating flushing feature cleans residual debris, ensuring optimal transmission performance. This transmission fluid exchanger integrates advanced filtration and circulation technology to ensure a thorough and contaminant-free transmission fluid exchange.
Real-Time Monitoring & Display

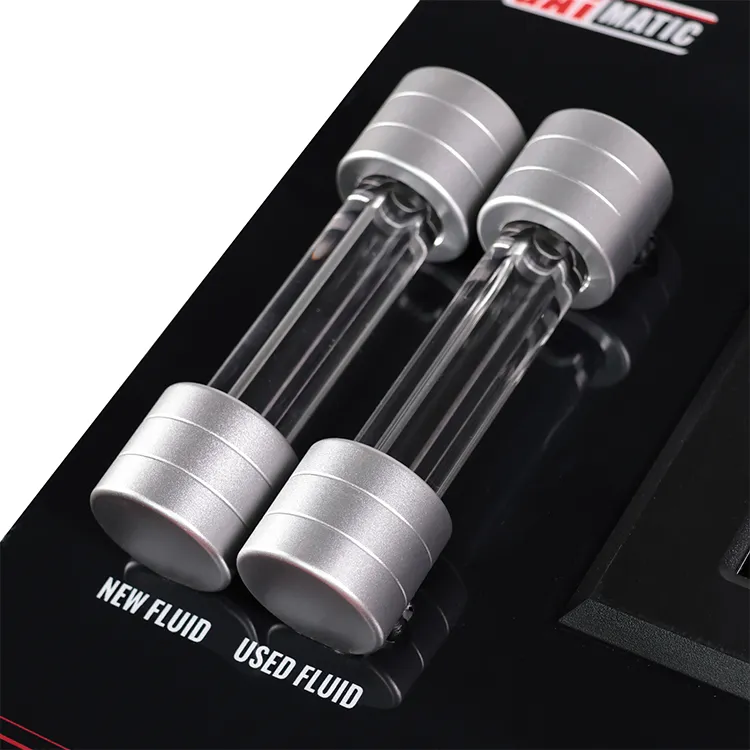

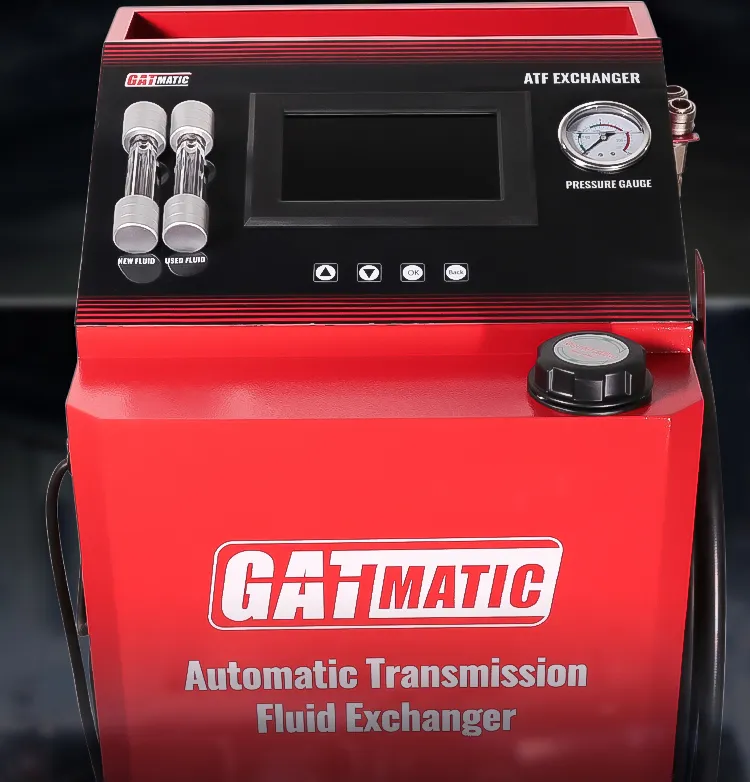

The automatic transmission fluid exchanger is equipped with 7-inch screen and membrane keyboard, and provides an intuitive interface for easy control. At the same time, you can easily observe new oil and used oil from the viewing window, while the real data( pressure, flow, and volume) is displayed during the exchange.
Multi-Functional Flexibility

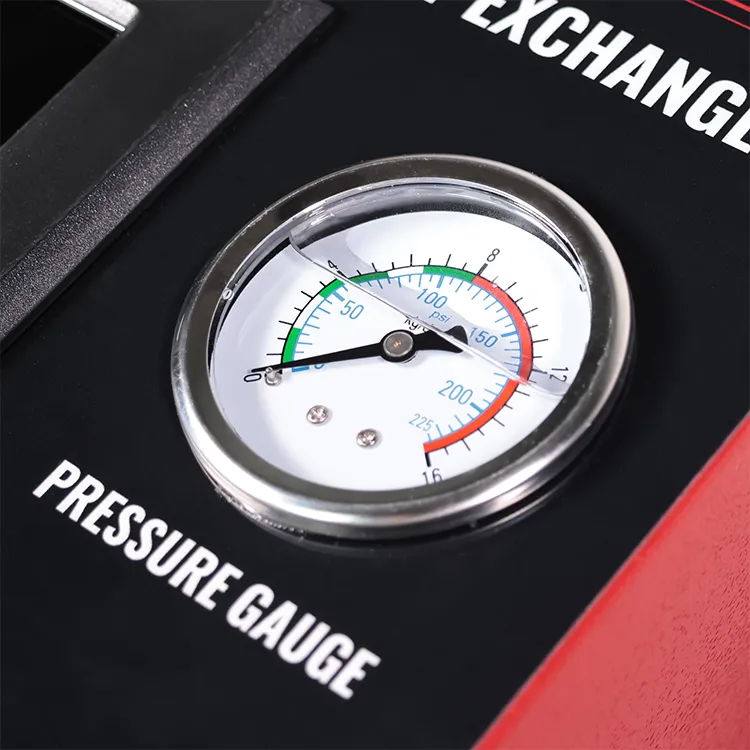

Beyond few Automatic Operation, this ATF exchanger supports manual fluid drain, new fluid addition, and old fluid recycling. With dual 20-liter tanks, the electronic scale calibration and 0-150psi pressure gauge, this transmission fluid exchanger enhance accuracy for diverse servicing needs.
Seamless Cycle Cleaning & Exchange with Valve Control
The transmission fluid exchange machine allows effortless switching between cycle cleaning and fluid exchange modes by an integrated valve system. Operators can seamlessly switch from contaminant-flushing mode to perform a precise equal-volume exchange: all with just a simple manual adjustment, ensuring efficiency and convenience.
Specifications
Voltage
DC12V/AC220V
Maximum Power
150W
Pressure Gauge
0~150psi
Display
10inch touch screen
Oil filter Accuracy
5μm
Oil Oioe Pipe
2.5m
Oil Return Pipe
2.5m
Oil Tank
20L*2
Noise
<70db
Equal Exchange Error
±0.1 Liters
Net Weight
35kg
Gross Weight
45kg
Certificates
Our Factory
GATmatic was founded in 2013. Our factory covers over 9,000 square meters, including an R&D center, multiple production lines, a quality inspection center, and a modern warehouse. Thanks to our factory’s advanced manufacturing equipment, such as the latest digital control cutting machines, CNC punches, bending machines, and automatic welding machines, we have a strong production capacity.
Package
To avoid irresistible damage during transportation, GATmatic offers excellent packaging methods. In addition, it is also very convenient to load and unload with pallets.
Material: Heavy-duty wooden crate with reinforced corners and waterproof plastic wrapping.
Inner Protection: Insert High-density foam to protect fragile components.
Package Information: Product name, weight (kg), dimensions (L×W×H), and serial number.
Transport method: Choose the better transportation way according to situation: Air freight (for urgent orders) or sea freight (full-container load recommended).
