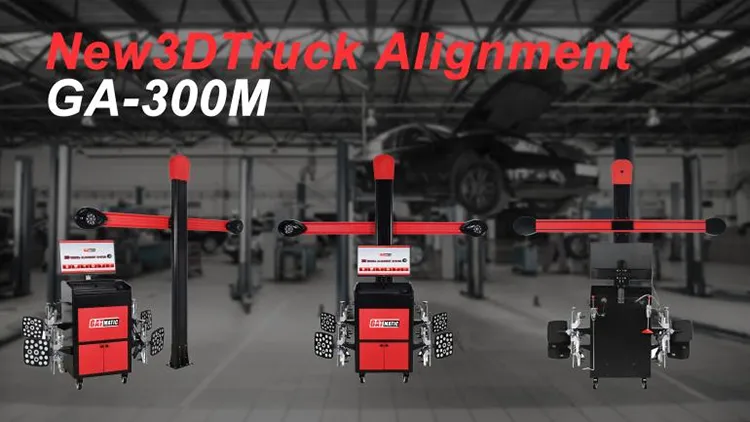

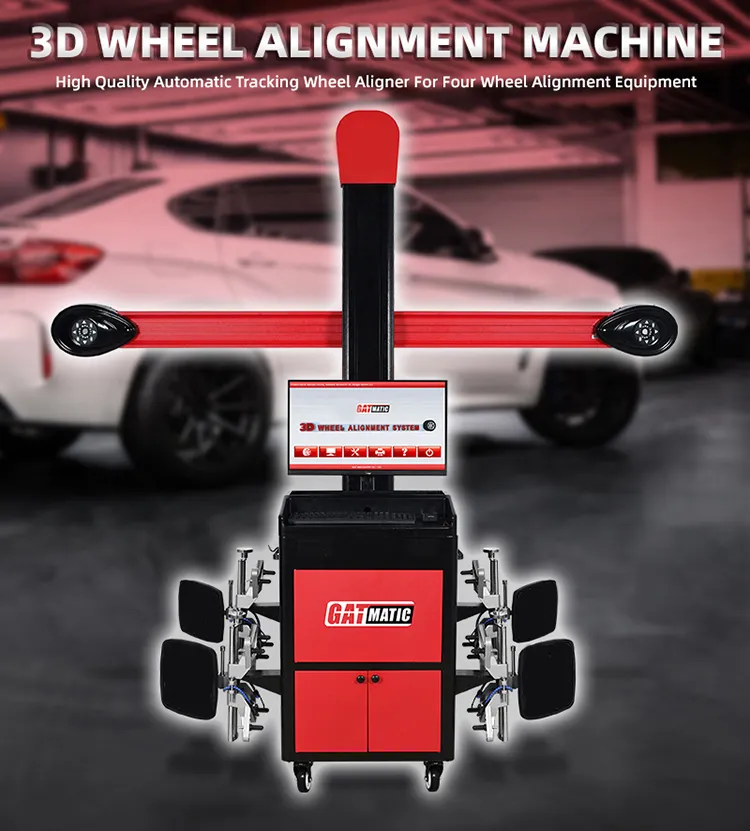

GA-300M is a 3D wheel alignment machine that adopts innovative technology. With the patented technology, it can perform wheel aligners on small scissor lifts. The beam of the wheel alignment machine can be moved up and down automatically to track the targets automatically.
Features

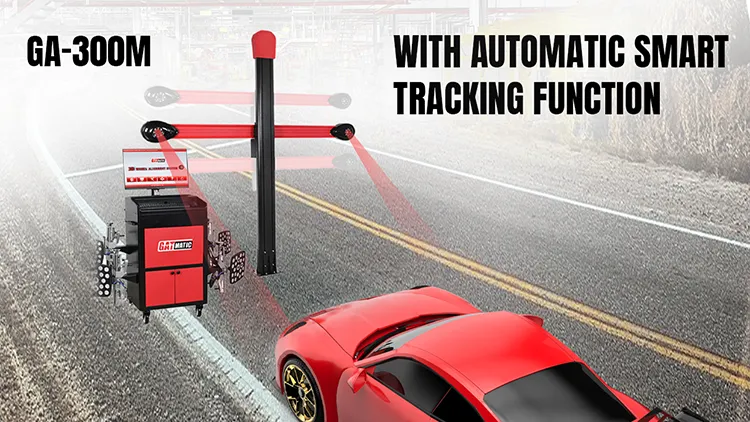

Auto Smart Tracking
The GA-300M 3D four wheel alignment equipment uses an electronically controlled lifting beam, the camera automatically recognizes and finds the target without manual intervention.
New Targets and Wheel Clamps
The GA-300M 3d wheel alignment machine is equipped with new four-point clamps and new targets covered with filter film. It performs even better in strong light conditions.
Optional for 3-point Clamp
The 3D wheel aligner equipment offers an optional 3-point clamp design, which facilitates quick installation and easy adjustment. This enables a shorter installation time, thereby achieving faster and more efficient wheel alignment services.

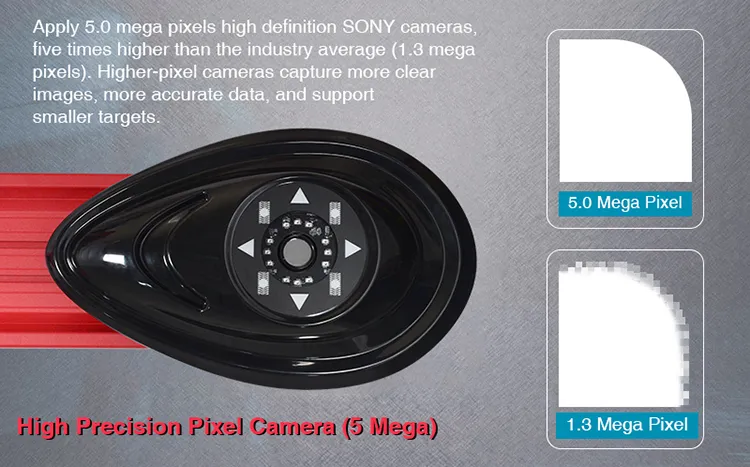

High-precision Industrial 5-megapixel Cameras
Applying 5.0-megapixel high-definition cameras, five times higher than the industry average (1.3 megapixels). Higher-pixel cameras capture more clear images, more accurate data, and support smaller targets.
High Accuracy
Achieve unparalleled precision with advanced technology that ensures highly accurate wheel alignment. Every measurement is meticulously calculated, delivering consistent, reliable results that enhance vehicle performance and extend tire life.
Reliable Repeatability
GA-300M portable wheel alignment machine demonstrates excellent repeatability with measurement consistency within ±2’ across multiple tests.
Clamps Supporting More Situations
High-quality clamps support more measurement in more complex situations, such as the deformation of steel rings, wheel clamps, target axis, and insufficient tire pressure.
Clamping From Any Direction
Our clamps can support clamping the tire from any direction.

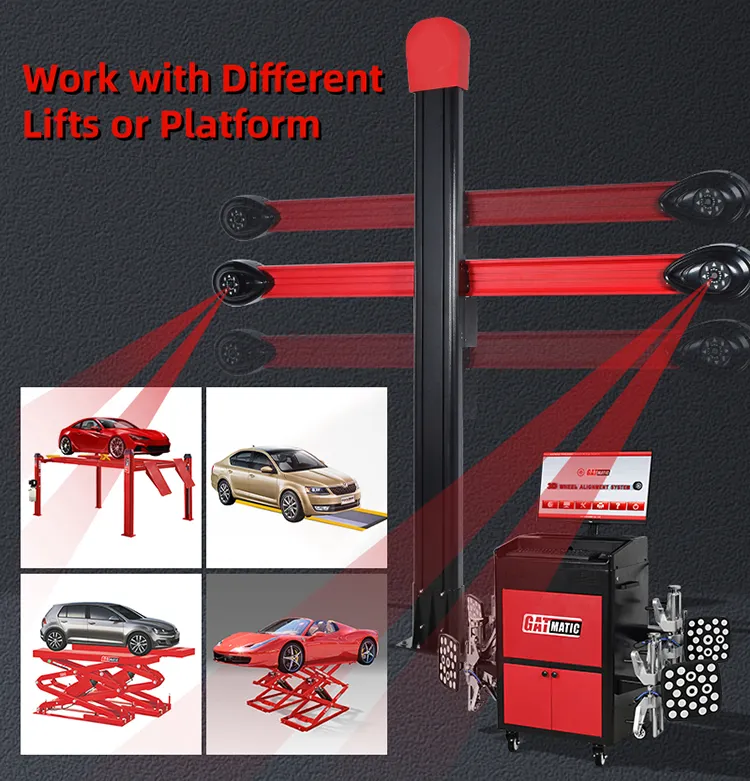

Work On Different Car Lifts & Platforms
Different kinds of car lifts such as 4-post lifts, and scissor lifts are suitable for GA-300M 3D wheel aligner machine.

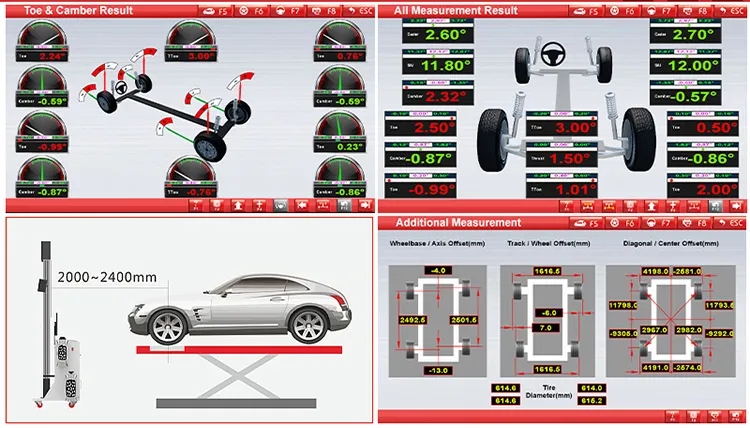

Innovative Software Update
Professional software with a user-friendly & concise interface. Added with characteristic instructions and step-by-step guidance. Making wheel alignment a pleasant & easy journey.
Powerful Database
With a robust database, this wheel alignment system stores and recalls vehicle specifications effortlessly, enabling quick access to a wide range of models and ensuring seamless, accurate alignments every time.
Multi-language & Windows OS
The software can be set in multiple languages, such as English, Spanish, Russian, German, Arabic, Thai, and Portuguese. It is convenient for technicians to use in most countries. And the wheel alignment machine supports Windows 7/8/10.
Advantages
- New four-point clamps, covered with filter film. Works better under hard light environment.
- With unique Algorithm, accuracy and repeatability are highly reliable.
- Work on Big Scissor/4 Post/Pit/Small Scissor/2 post lift.
- Multiple languages optional
- Wheel clamps accommodating a wide range of wheel sizes
- Automatically calculating wheel diameter
- Optional for 3-point clamp
- Equipped with high-precision industrial 5-megapixel cameras
- Professional software with a user-friendly interface with instructions and step-by-step guidance
- Quick testing mode, saving time and working efficiently
- Dynamic coordinate, not affected by the inclination of lift
Specifications
ITEM
PRECISION
RANGE
Toe-in
±2'
±20°
Camber
±2'
±20°
Caster
±4'
±20°
SAI/KPI
±6'
±20°
Setback
±2'
±5°
Thrust Angle
±2'
±5°
Tread Difference
±2mm
Wheelbase Difference
±2mm
Certificates
Wheel Aligner Accessories
Turntable
Wheel Clamp
Wheel Chock
Water-proof Target
2
4
2
4
Wheel Clamp Adaptor
Brake Pedal Depressor
Steering Wheel Holder
Transition Bridge Block
4
1
1
2
Our Factory
GATmatic was founded in 2013. Our factory covers over 9,000 square meters, including an R&D center, multiple production lines, a quality inspection center, and a modern warehouse. Thanks to our factory’s advanced manufacturing equipment, such as the latest digital control cutting machines, CNC punches, bending machines, and automatic welding machines, we have a strong production capacity.
Package
To avoid irresistible damage during transportation, GATmatic offers excellent packaging methods. In addition, it is also very convenient to load and unload with pallets.
Material: Heavy-duty wooden crate with reinforced corners and waterproof plastic wrapping.
Inner Protection: Insert High-density foam to protect fragile components.
Package Information: Product name, weight (kg), dimensions (L×W×H), and serial number.
Transport method: Choose the better transportation way according to situation: Air freight (for urgent orders) or sea freight (full-container load recommended).
